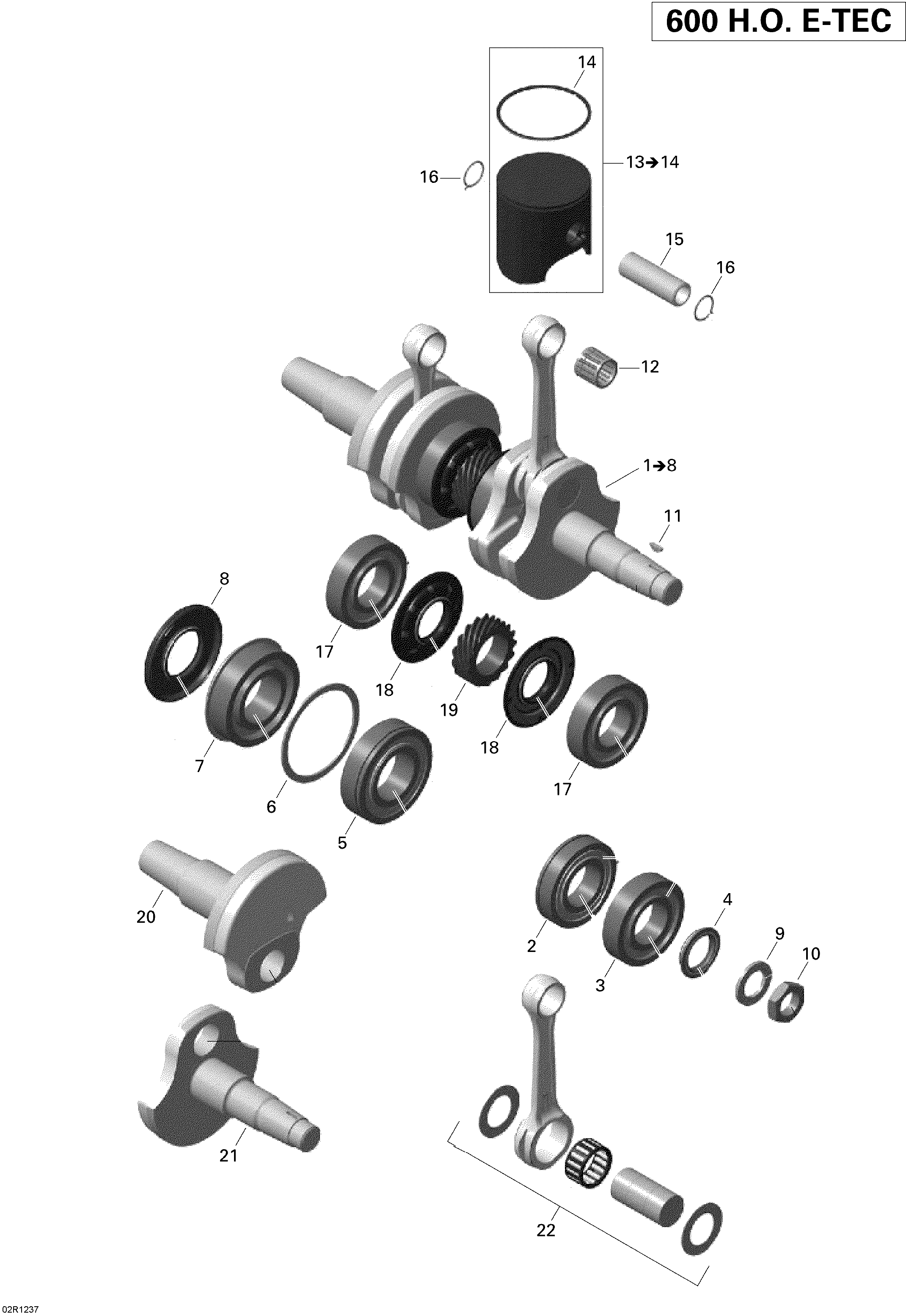

01- Crankshaft And Pistons для BRP Ski-Doo Expedition LE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1420890954 Crankshaft Ass'y. Includes 1 to 8Crankshaft Ass'y. Includes 1 to 8
-
2420832633 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931793 Oil SealOil Seal
-
5420832602 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832700 Ball BearingBall Bearing
-
8420931284 Oil SealOil Seal
-
9420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
10420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
11420246015 Woodruff KeyWoodruff Key
-
12420832445 Needle BearingNeedle Bearing
-
13420892386 Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14
-
14420815295 Semi-Trapez RingSemi-Trapez Ring
-
15420916412 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
20420818709 Crankshaft PTOCrankshaft PTO
-
21420819232 Crankshaft MAGCrankshaft MAG
-
22420890958 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
22420890959 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
