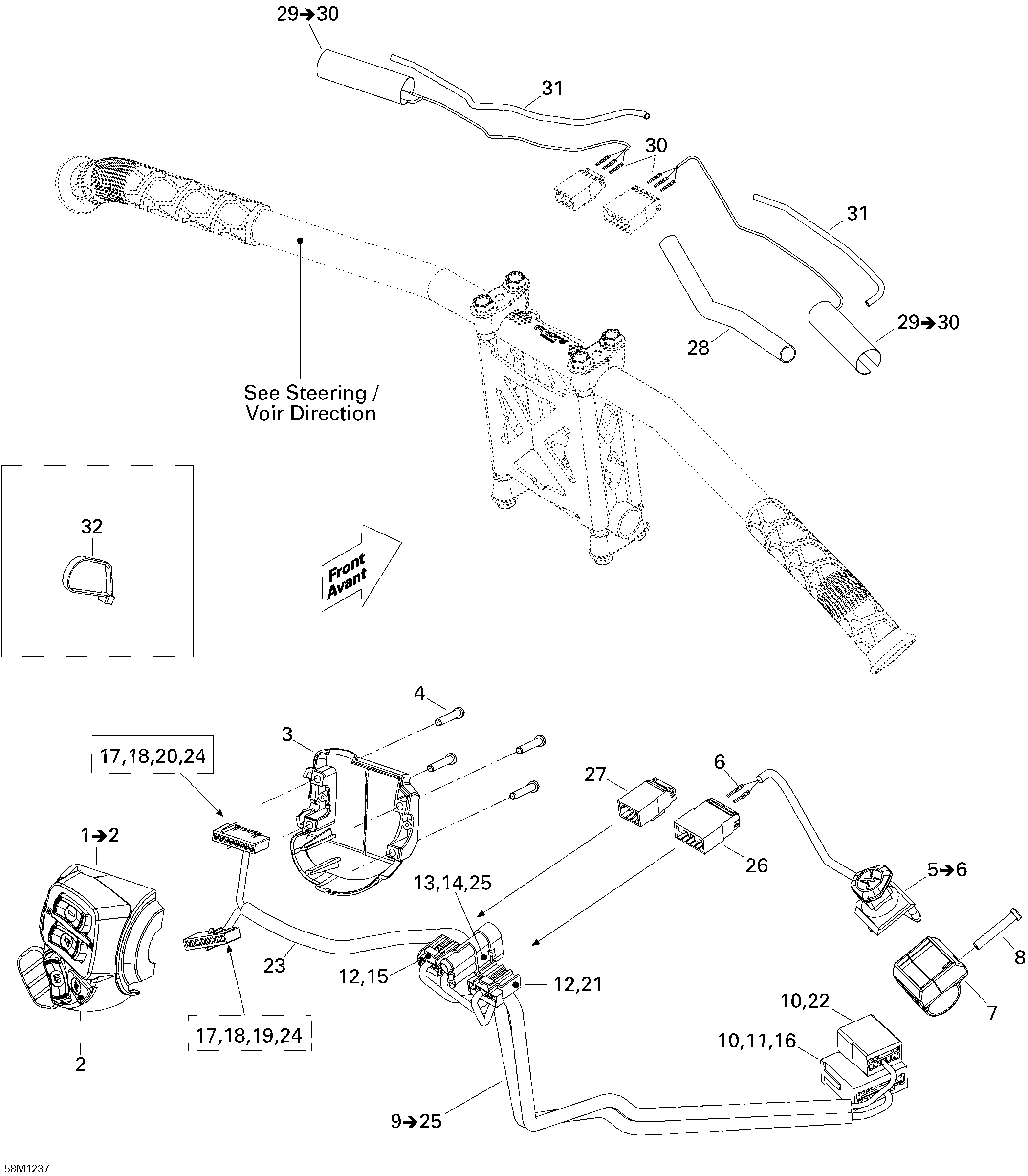

10- Electrical Accessories, Steering для BRP Ski-Doo Expedition LE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1515177020 LH Housing. Includes 1 to 2LH Housing. Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176988 Kill Switch. Includes 5 to 6Kill Switch. Includes 5 to 6
-
6515175232 Male TerminalMale Terminal
-
7515176825 Kill Switch SupportKill Switch Support
-
8250000263 Torx Screw #8-18Torx Screw #8-18
-
9515176868 Steering Wiring Harness Ass'y. Includes 9 to 25Steering Wiring Harness Ass'y. Includes 9 to 25
-
10515175232 Male TerminalMale Terminal
-
11515175273 Male TerminalMale Terminal
-
12515175231 Female TerminalFemale Terminal
-
13710000568 HousingHousing
-
14278001013 Wire SealWire Seal
-
15515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
16515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
17515175808 Female TerminalFemale Terminal
-
18515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
19515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
20515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
21515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
22515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
23515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
24515175941 Female TerminalFemale Terminal
-
25515176164 Male TerminalMale Terminal
-
26515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
27515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
28515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
29506152428 Heated Film, 25W. Includes 29 to 30Heated Film, 25W. Includes 29 to 30
-
30515175232 Male TerminalMale Terminal
-
31515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
32293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
32293750008 Tie-Rap 350 mmTie-Rap 350 mm
