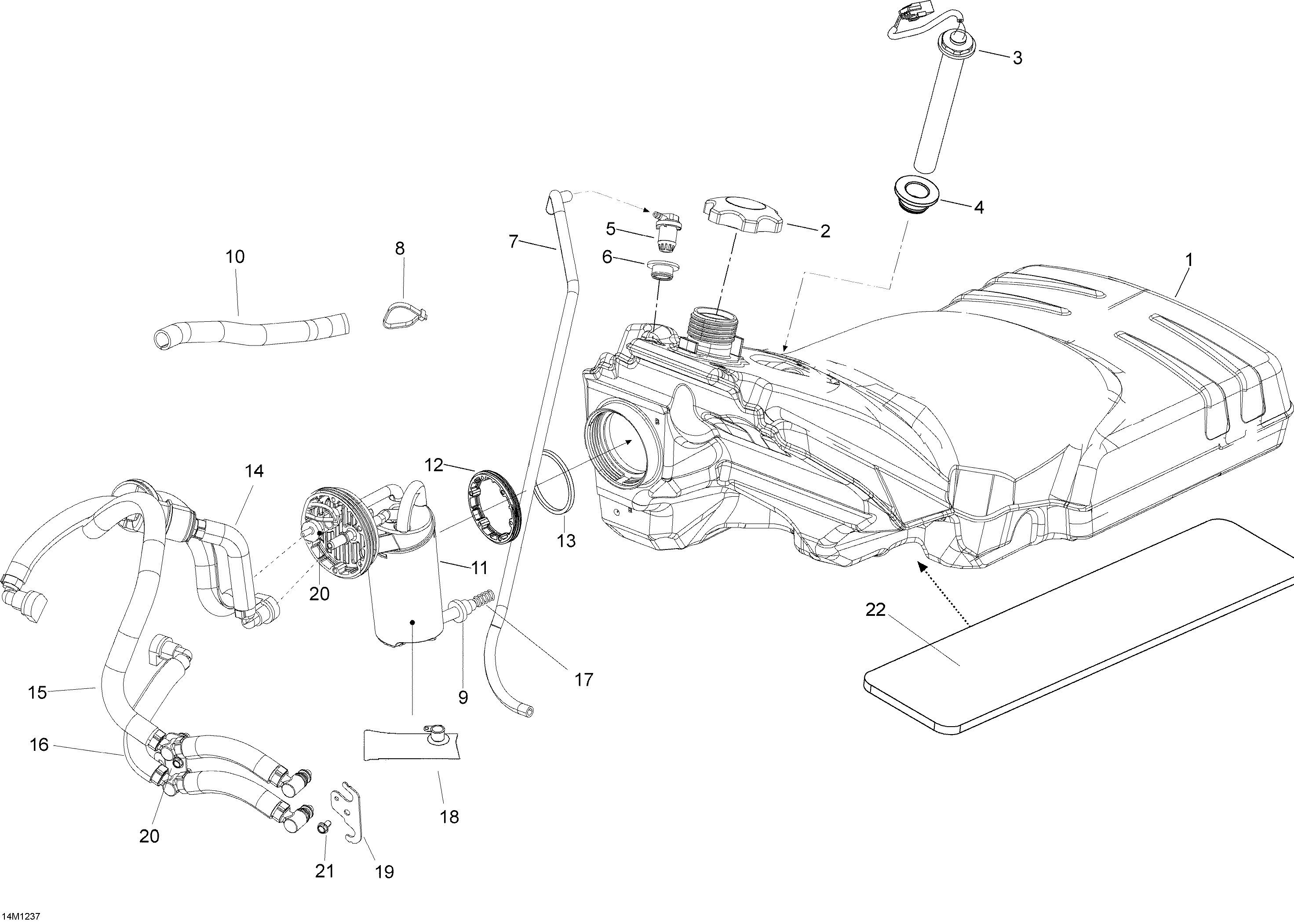

02- Fuel System для BRP Ski-Doo Expedition LE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1513033635 Fuel TankFuel Tank
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9M28037 GrommetGrommet
-
10415080000 Tubing 16 mmTubing 16 mm
-
11513033643 Fuel Pump Ass'yFuel Pump Ass'y
-
12513033180 RingRing
-
13513033334 GasketGasket
-
14513033560 Hose Ass'yHose Ass'y
-
15513033631 Hose Ass`YHose Ass`Y
-
16513033594 Hose Ass'yHose Ass'y
-
17414872100 Fuel FilterFuel Filter
-
18415129451 Fuel FilterFuel Filter
-
19513033593 BracketBracket
-
20513033542 BracketBracket
-
21207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
22513033640 FoamFoam
