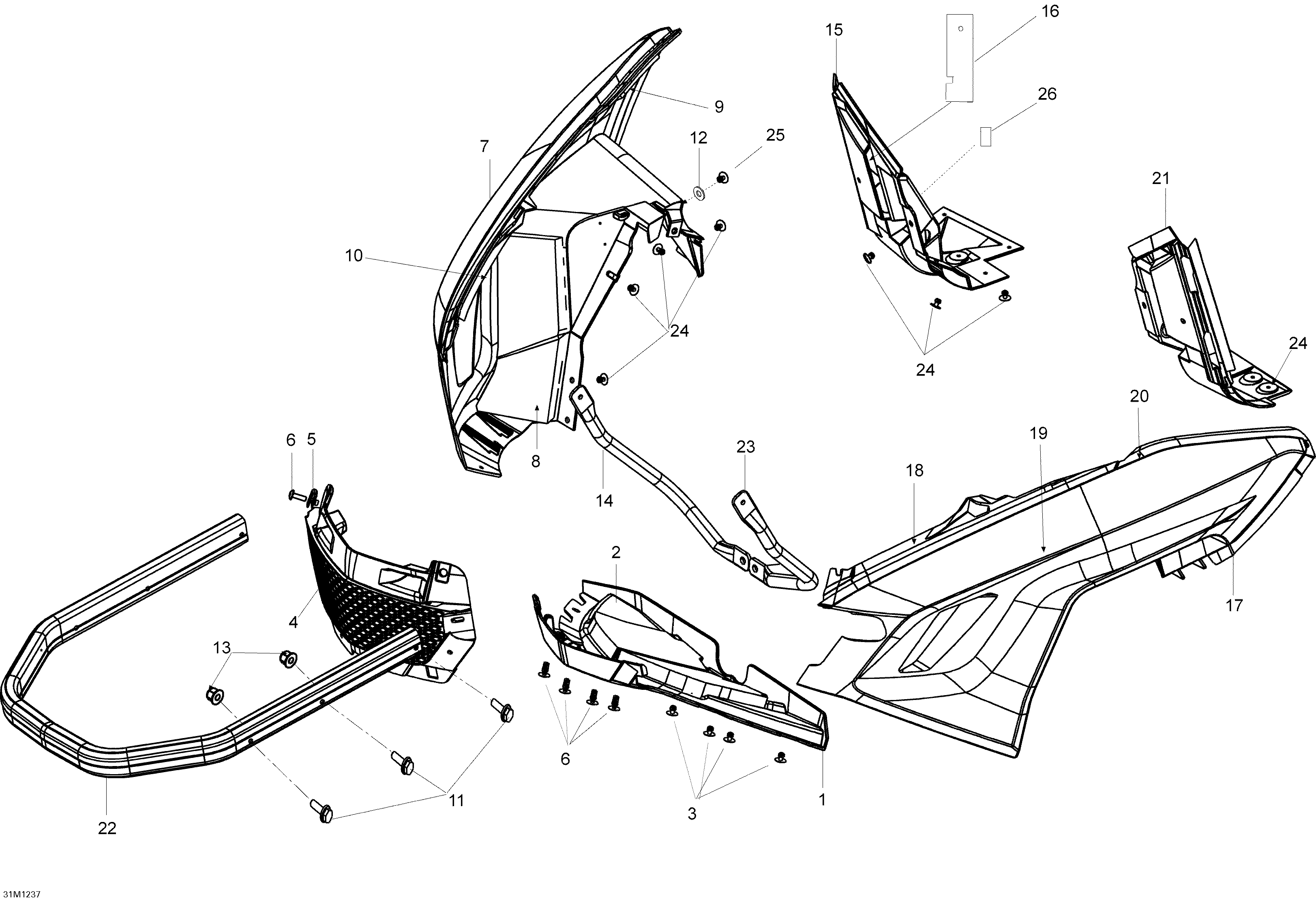

09- Bottom Pan для BRP Ski-Doo Expedition LE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1502007184 Bottom Pan FrontBottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7502007188 Bottom Pan Ass'y RHBottom Pan Ass'y RH
-
8502007006 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
12234052490 Washer M5Washer M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14502007015 RH Bumper SupportRH Bumper Support
-
15502007191 Bottom Pan Rear Ass'y RHBottom Pan Rear Ass'y RH
-
16502007038 Aluminium FoilAluminium Foil
-
17502007196 Bottom Pan Ass'y LHBottom Pan Ass'y LH
-
18502007003 InsulatorInsulator
-
19502007004 InsulatorInsulator
-
20502007005 InsulatorInsulator
-
21502007195 Bottom Pan Rear Ass'y LHBottom Pan Rear Ass'y LH
-
22502006920 BumperBumper
-
23502007014 LH Bumper SupportLH Bumper Support
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
26M44110 Reflective SheetReflective Sheet
