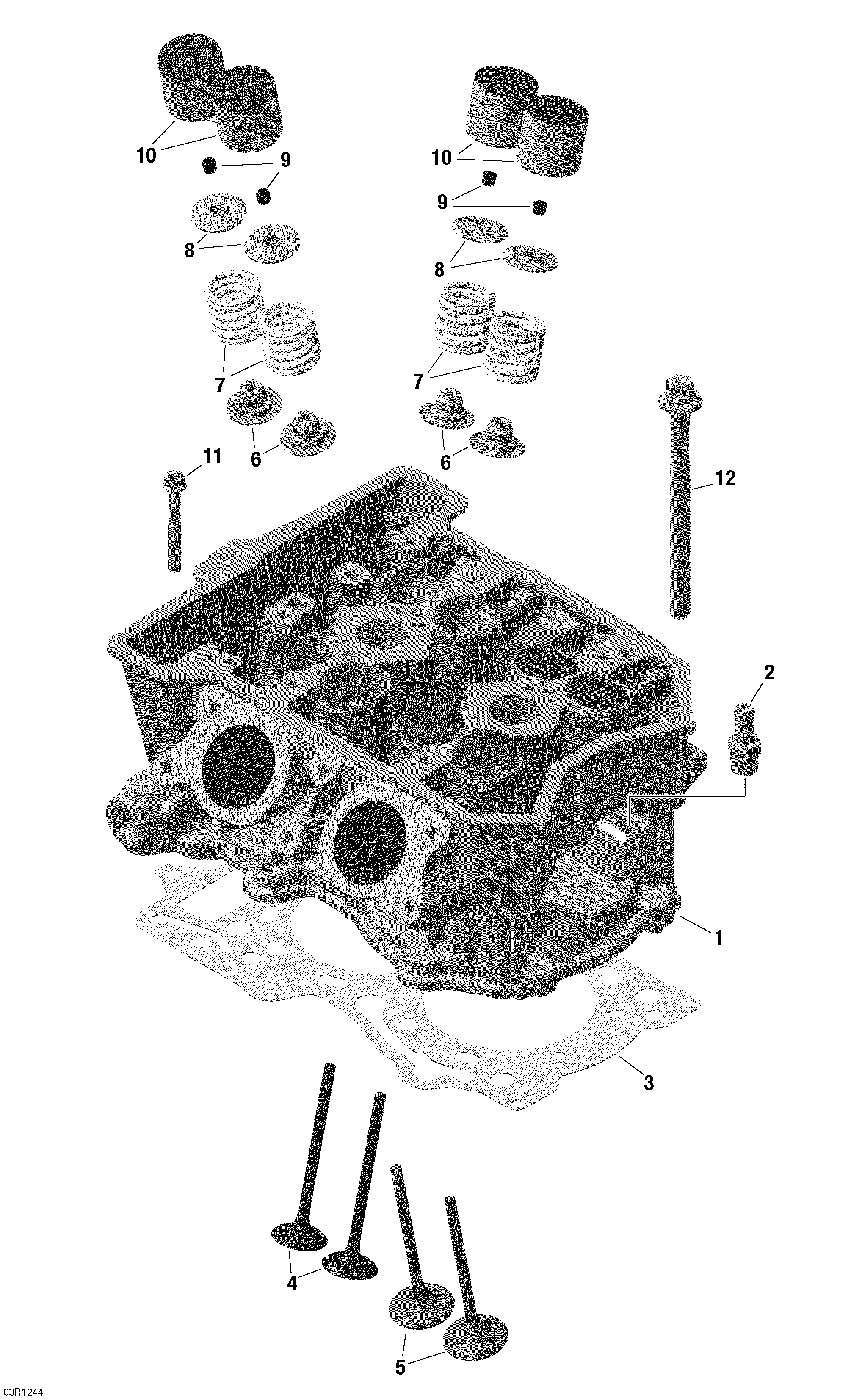

01- Cylinder Head для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) - 2012
-
№АртикулНазвание
-
1420623805 Cylinder HeadCylinder Head
-
2420441420 Hose Nipple. TIGHTENING TORQUE 15NM +/- 12%Hose Nipple. TIGHTENING TORQUE 15NM +/- 12%
-
3420431610 Cylinder Head Gasket. INCLUDED IN GASKET KITCylinder Head Gasket. INCLUDED IN GASKET KIT
-
4420855140 Exhaust Valve, 25 mmExhaust Valve, 25 mm
-
5420855130 Intake Valve, 29 mmIntake Valve, 29 mm
-
6420431670 Valve Stem Seal. INCLUDED IN GASKET KITValve Stem Seal. INCLUDED IN GASKET KIT
-
7420939540 Valve SpringValve Spring
-
8420855150 Valve Spring RetainerValve Spring Retainer
-
9420254630 Cotter ValveCotter Valve
-
10420855161 Valve Lifter Bucket BlocValve Lifter Bucket Bloc
-
11420440324 Flanged Torx Screw M6 X 45. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 45. TIGHTENING TORQUE 11NM +/- 12%
-
12420940945 Flanged Torx Screw M9 X 113. (TIGHTENING TORQUE 20NM +/- 12%) (+120°+/- 5° ROTATION ANGLE)Flanged Torx Screw M9 X 113. (TIGHTENING TORQUE 20NM +/- 12%) (+120°+/- 5° ROTATION ANGLE)
