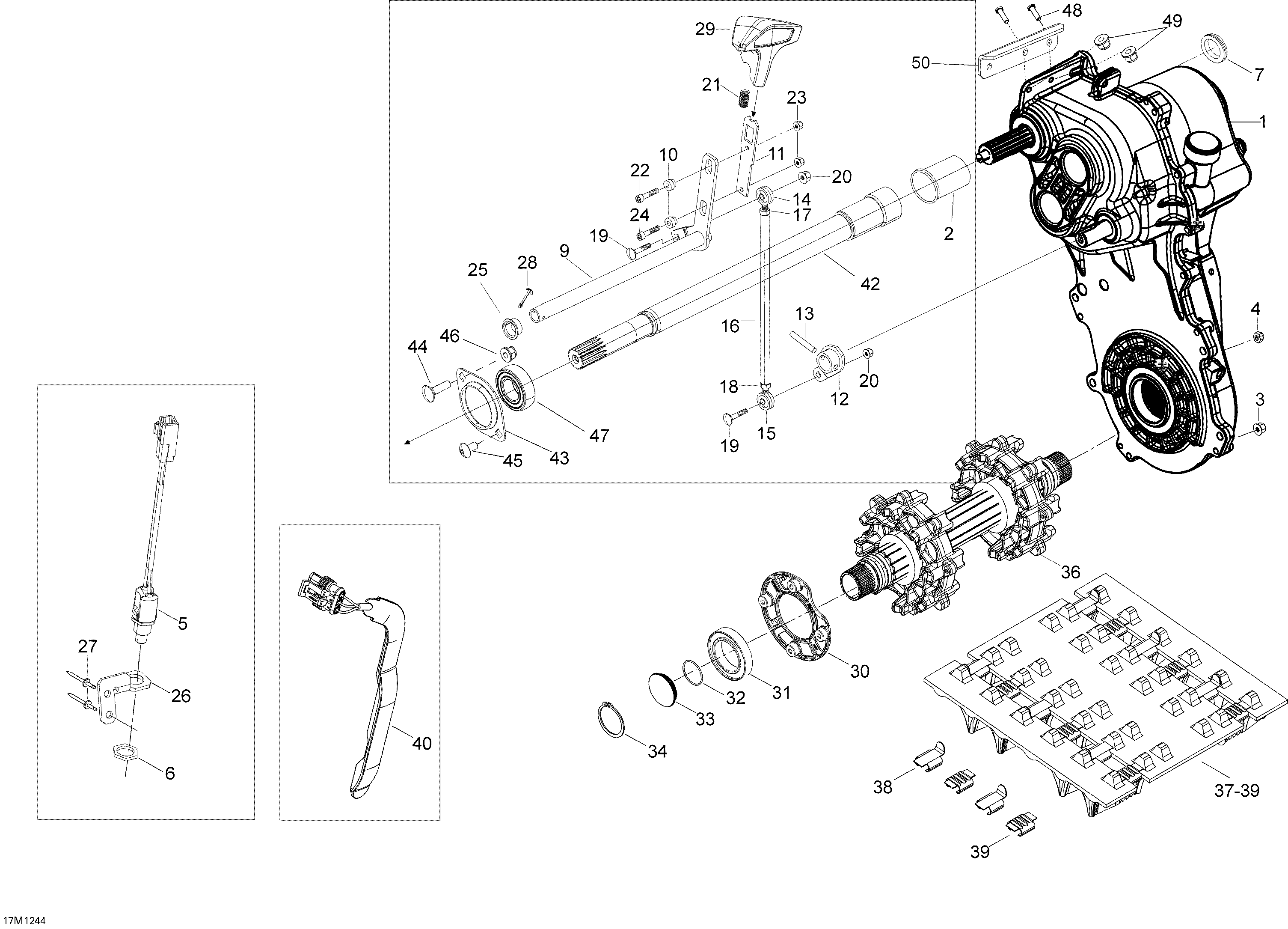

05- Drive System для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) - 2012
-
№АртикулНазвание
-
1504153140 Transmission Ass'y 2F+N+R. Only assy for 2011Transmission Ass'y 2F+N+R. Only assy for 2011
-
2504153054 Protective RubberProtective Rubber
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
5515176472 Switch Ass'ySwitch Ass'y
-
6250000373 Brass NutBrass Nut
-
7504152818 Rubber PlugRubber Plug
-
9504152887 Lever ShifterLever Shifter
-
10504152787 SleeveSleeve
-
11504152831 Shifter ArmShifter Arm
-
12504153131 Lever WeldedLever Welded
-
13M41012 Retainer PinRetainer Pin
-
14707000689 RH Ball JointRH Ball Joint
-
15707000690 LH Ball JointLH Ball Joint
-
16504152836 RodRod
-
17232061414 Hex. Nut M6Hex. Nut M6
-
18232066414 LH Hex. Nut M6LH Hex. Nut M6
-
19207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
20232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
21504152882 SpringSpring
-
22205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
23233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
24732600030 ScrewScrew
-
25504152890 BearingBearing
-
26504152902 Sensor BracketSensor Bracket
-
27293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
28250400035 Cotter PinCotter Pin
-
29504152837 HandleHandle
-
30504152949 Housing BearingHousing Bearing
-
31293350059 Ball BearingBall Bearing
-
32293300122 O-RingO-Ring
-
33504152619 Magnetic CapMagnetic Cap
-
34504152572 CirclipCirclip
-
36504153172 Drive Axle Ass'yDrive Axle Ass'y
-
37M13081 TrackTrack
-
38M5318323 Guide CleatGuide Cleat
-
40504152896 SensorSensor
-
42504153070 Counter ShaftCounter Shaft
-
43501026900 FlangeFlange
-
44207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
45250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
46233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
47293350074 Ball BearingBall Bearing
-
48207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50518327029 Extention PlateExtention Plate
