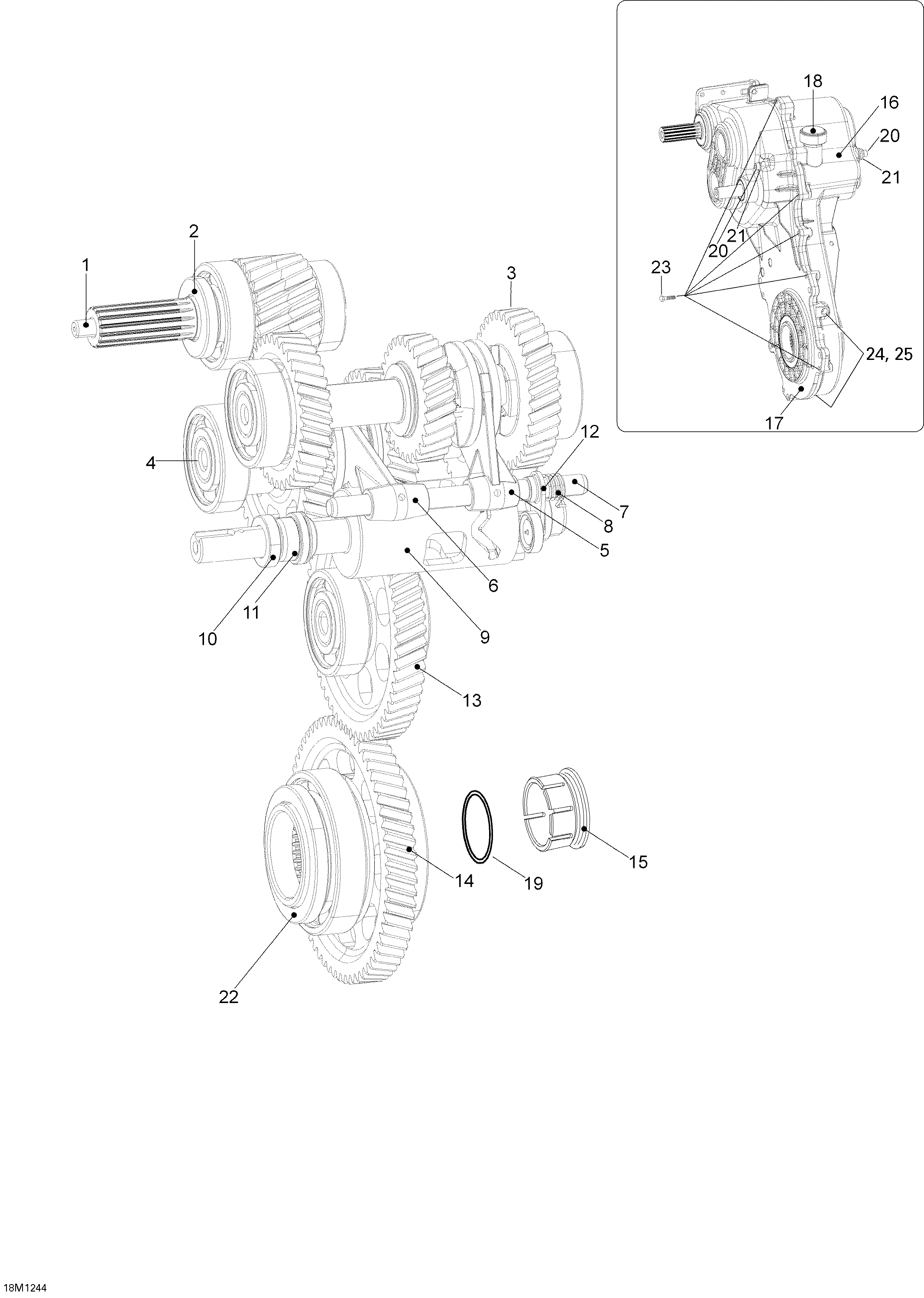

05- Transmission для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) - 2012
-
№АртикулНазвание
-
-504153140 Transmission Ass'y 2F+N+R. Includes 1 to 71Transmission Ass'y 2F+N+R. Includes 1 to 71
-
1619230044 Counter ShaftCounter Shaft
-
2619230010 Oil sealOil seal
-
3619230045 Main ShaftMain Shaft
-
4619230046 Reverse ShaftReverse Shaft
-
5619230014 Fork, forwardsFork, forwards
-
6619230015 Fork, reverseFork, reverse
-
7619230016 ShaftShaft
-
8619230017 SpringSpring
-
9619230018 Shifting drumShifting drum
-
10619230019 Oil sealOil seal
-
11619230020 Bushing. Includes 11 to 12Bushing. Includes 11 to 12
-
12619230021 Locking leverLocking lever
-
13619230022 Middle gearMiddle gear
-
14619230023 Lower gearLower gear
-
15504152821 Magnetic CapMagnetic Cap
-
16619230025 Cover, outsideCover, outside
-
17619230026 Cover, insideCover, inside
-
18619230027 Plug, oilPlug, oil
-
19619230028 O-RingO-Ring
-
20619230029 ScrewScrew
-
21619230030 WasherWasher
-
22619230031 Oil sealOil seal
-
23619230033 Screw M6 x 20Screw M6 x 20
-
24619230037 Allen Screw M8x10Allen Screw M8x10
-
25615580812 Gasket RingGasket Ring
