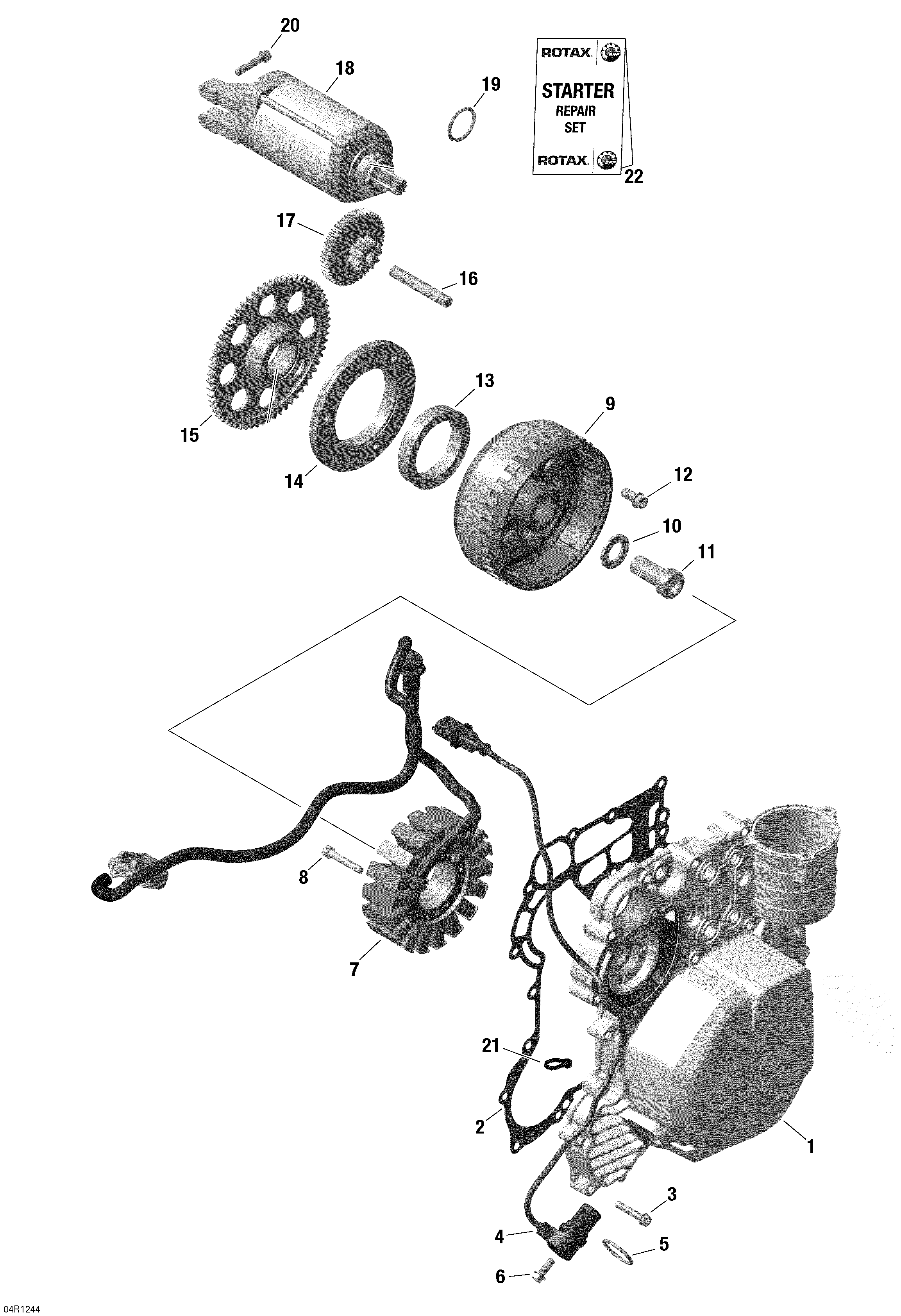

03- Magneto для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) - 2012
-
№АртикулНазвание
-
1420911052 CoverCover
-
2420431640 Gasket. INCLUDED IN GASKET KITGasket. INCLUDED IN GASKET KIT
-
3420440647 Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%
-
4-5420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
5420431580 O-Ring. INCLUDED IN GASKET KITO-Ring. INCLUDED IN GASKET KIT
-
6420440162 Flanged Torx Screw M6 X 16. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 16. TIGHTENING TORQUE 11NM +/- 12%
-
7420685635 Stator Plate 650WStator Plate 650W
-
8420241956 Allen Screw M6 X 40. TIGHTENING TORQUE 11NM +/- 12%Allen Screw M6 X 40. TIGHTENING TORQUE 11NM +/- 12%
-
9420685646 Magneto FlywheelMagneto Flywheel
-
10420627270 ShimShim
-
11420241549 Socket Head Screw M16 X 35. TIGHTENING TORQUE 150NM +/- 7%Socket Head Screw M16 X 35. TIGHTENING TORQUE 150NM +/- 7%
-
12420440854 Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 30NM +/- 12%Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 30NM +/- 12%
-
13420659113 Sprag ClutchSprag Clutch
-
14420659261 Sprag Clutch HousingSprag Clutch Housing
-
15420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
16420229475 Needle PinNeedle Pin
-
17420634741 Double GearDouble Gear
-
18-19420892423 Starter Ass'yStarter Ass'y
-
19420250140 O-Ring. INCLUDED IN GASKET KITO-Ring. INCLUDED IN GASKET KIT
-
20420440647 Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%
-
21420866714 Tie RapTie Rap
-
22420881140 Carbon Brush SetCarbon Brush Set
