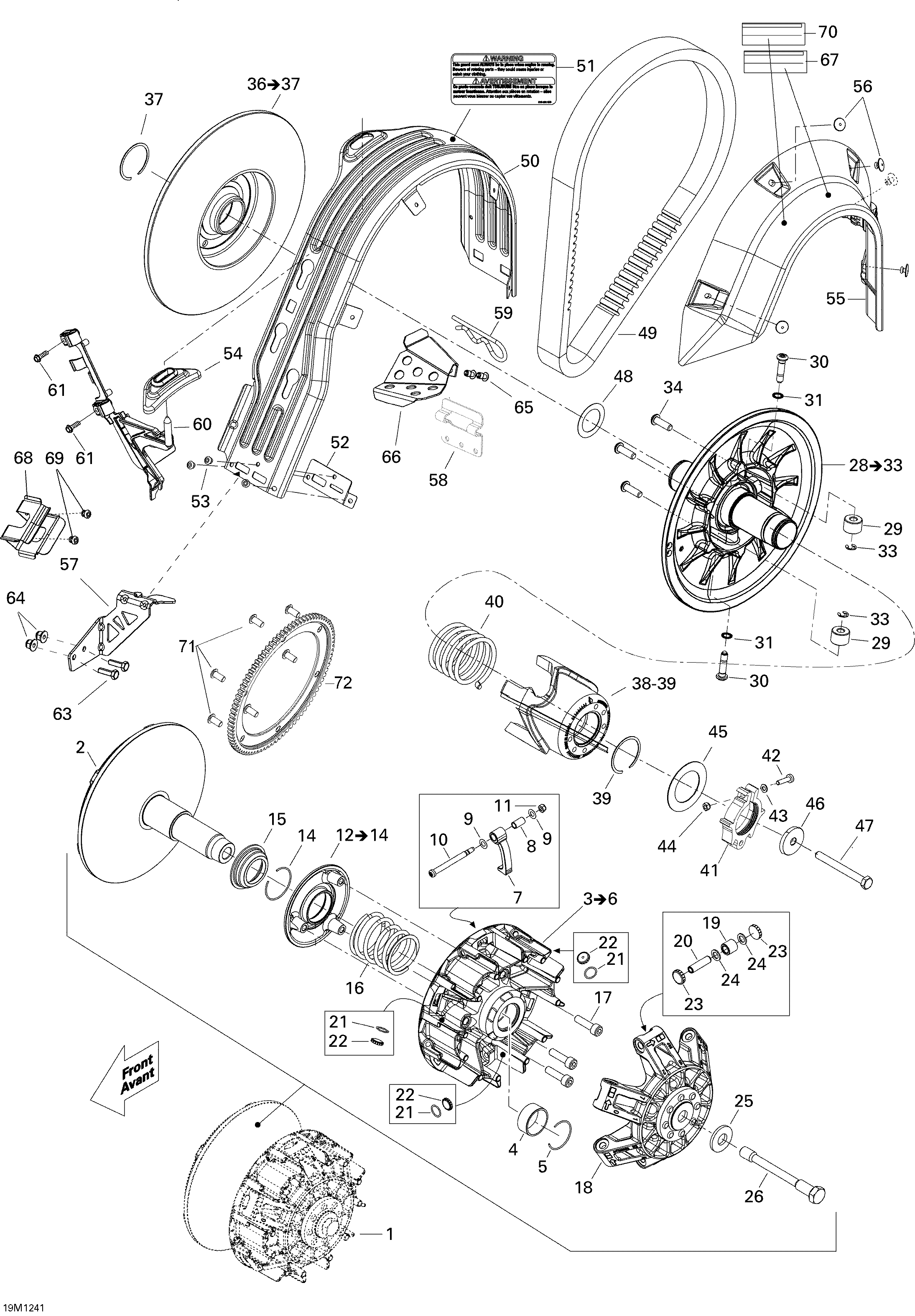

05- Pulley System для BRP Ski-Doo Skandic WT 550F XU - 2012
-
№АртикулНазвание
-
2417223534 Fixe Flange Ass'yFixe Flange Ass'y
-
3417223606 Slider Flange Ass'ySlider Flange Ass'y
-
4293350079 Plain BearingPlain Bearing
-
5293370065 CirclipCirclip
-
7417223557 Ramp 700Ramp 700
-
8293350078 Journal BearingJournal Bearing
-
9417223255 Thrust WasherThrust Washer
-
10417223609 Axle RampAxle Ramp
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12417223461 Slider Adaptor Ass'ySlider Adaptor Ass'y
-
14293370063 CirclipCirclip
-
15417223155 Spring SeatSpring Seat
-
16417223315 Spring ClutchSpring Clutch
-
17250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
18417223565 Governor Cup Ass'yGovernor Cup Ass'y
-
19417223387 RollerRoller
-
20417223257 Roller AxleRoller Axle
-
21293300145 O-ringO-ring
-
22417223269 Slider ShoeSlider Shoe
-
23417223269 Slider ShoeSlider Shoe
-
25250200006 Spring Washer 14 mmSpring Washer 14 mm
-
26417300407 Drive Bolt PulleyDrive Bolt Pulley
-
28417127260 Flange-Fix.AssFlange-Fix.Ass
-
29417223387 RollerRoller
-
30417127252 StudStud
-
31250200009 Lock Washer 8 mmLock Washer 8 mm
-
33414753500 CirclipCirclip
-
34250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
36417127231 Slider Flange Ass'ySlider Flange Ass'y
-
37293370049 CirclipCirclip
-
38417127148 Cam Ass'y. Includes 38 to 43Cam Ass'y. Includes 38 to 43
-
39293370049 CirclipCirclip
-
40417127243 Spring, WhiteSpring, White
-
41417127248 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
42205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
43234051410 Flat Washer M5Flat Washer M5
-
44232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
45417127155 WasherWasher
-
46517302322 Strength WasherStrength Washer
-
47207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
48504112000 ShimShim
-
49414860700 Drive BeltDrive Belt
-
50417300382 Belt GuardBelt Guard
-
51516004649 Security label, Belt GuardSecurity label, Belt Guard
-
52417300380 ReinforcementReinforcement
-
53390909200 Avex RivetAvex Rivet
-
54417300381 GuideGuide
-
55417300356 Side ProtectorSide Protector
-
56293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
57417300374 Front Belt Guard BracketFront Belt Guard Bracket
-
58417300363 Belt Guard BracketBelt Guard Bracket
-
59114045200 Hair PinHair Pin
-
60417300396 Belt Guard BracketBelt Guard Bracket
-
61241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
63207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
64233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
65293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
66518325626 Brake Hose CoverBrake Hose Cover
-
67516003919 Warning DecalWarning Decal
-
68517281905 BracketBracket
-
69390909200 Avex RivetAvex Rivet
-
70516004259 Caution Decal, Belt PositionCaution Decal, Belt Position
-
71250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
72417223476 Crown Gear LaunchCrown Gear Launch
