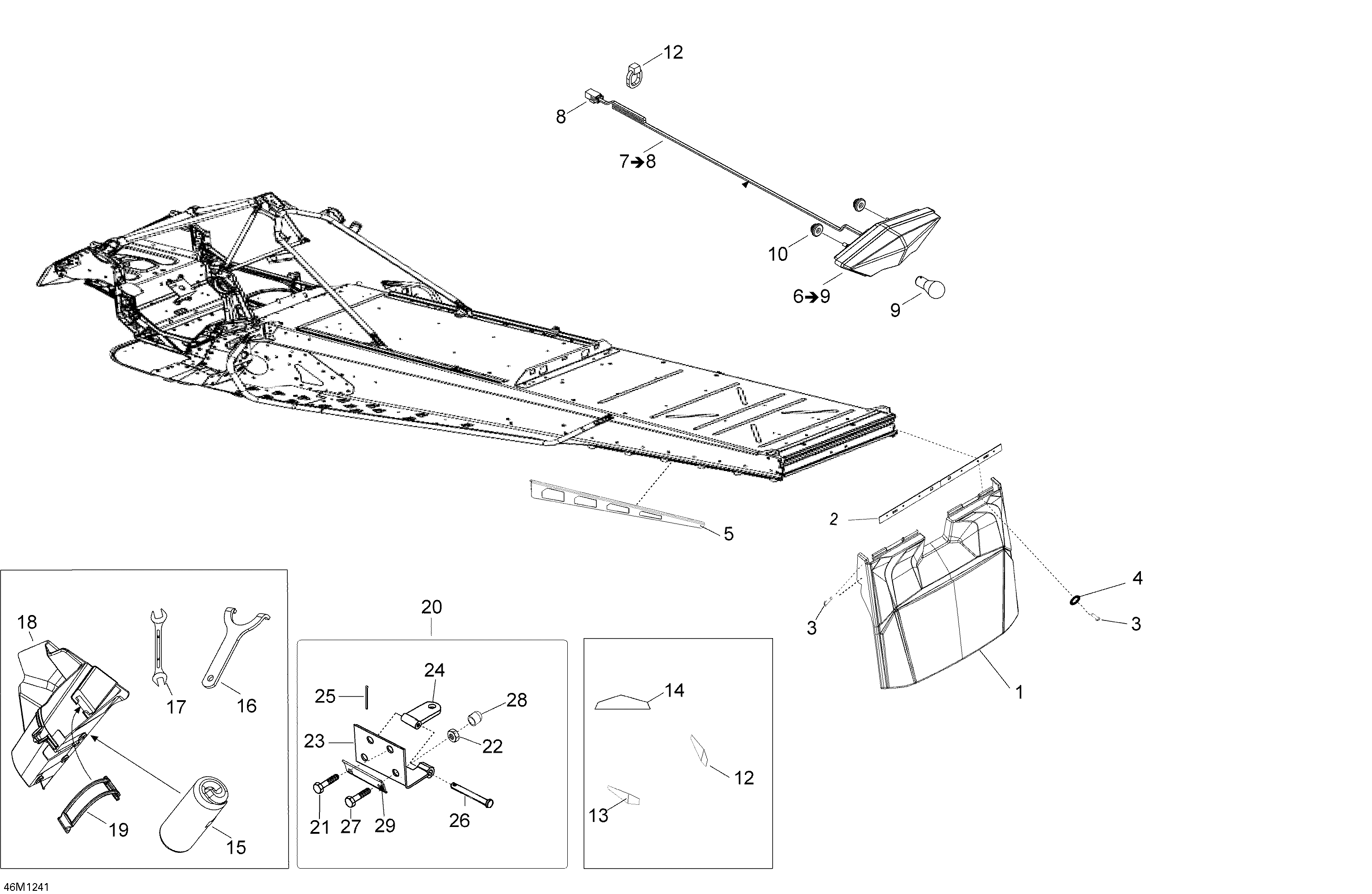

09- Utilities для BRP Ski-Doo Skandic WT 550F XU - 2012
-
№АртикулНазвание
-
1520000990 Snow Guard Ski-Doo 500, Short, BlackSnow Guard Ski-Doo 500, Short, Black
-
2520001021 PlatePlate
-
3732600030 ScrewScrew
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6520000848 Rear LightRear Light
-
7520000849 Rear Wiring HarnessRear Wiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9520000758 BulbBulb
-
10705003666 Rubber GrommetRubber Grommet
-
12520000843 RH ReflectorRH Reflector
-
13520000844 LH ReflectorLH Reflector
-
14705003412 Red ReflectorRed Reflector
-
15529000054 Tool KitTool Kit
-
16529035582 Adjustment WrenchAdjustment Wrench
-
18520000894 Tool Kit RackTool Kit Rack
-
19520000528 LatchLatch
-
205344152 Tongue Ass'yTongue Ass'y
-
21207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23M5344151 PlatePlate
-
24M548745 Hitch PlateHitch Plate
-
25M41031 PinPin
-
27207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
2828056 CoverCover
-
29520000727 PlatePlate
