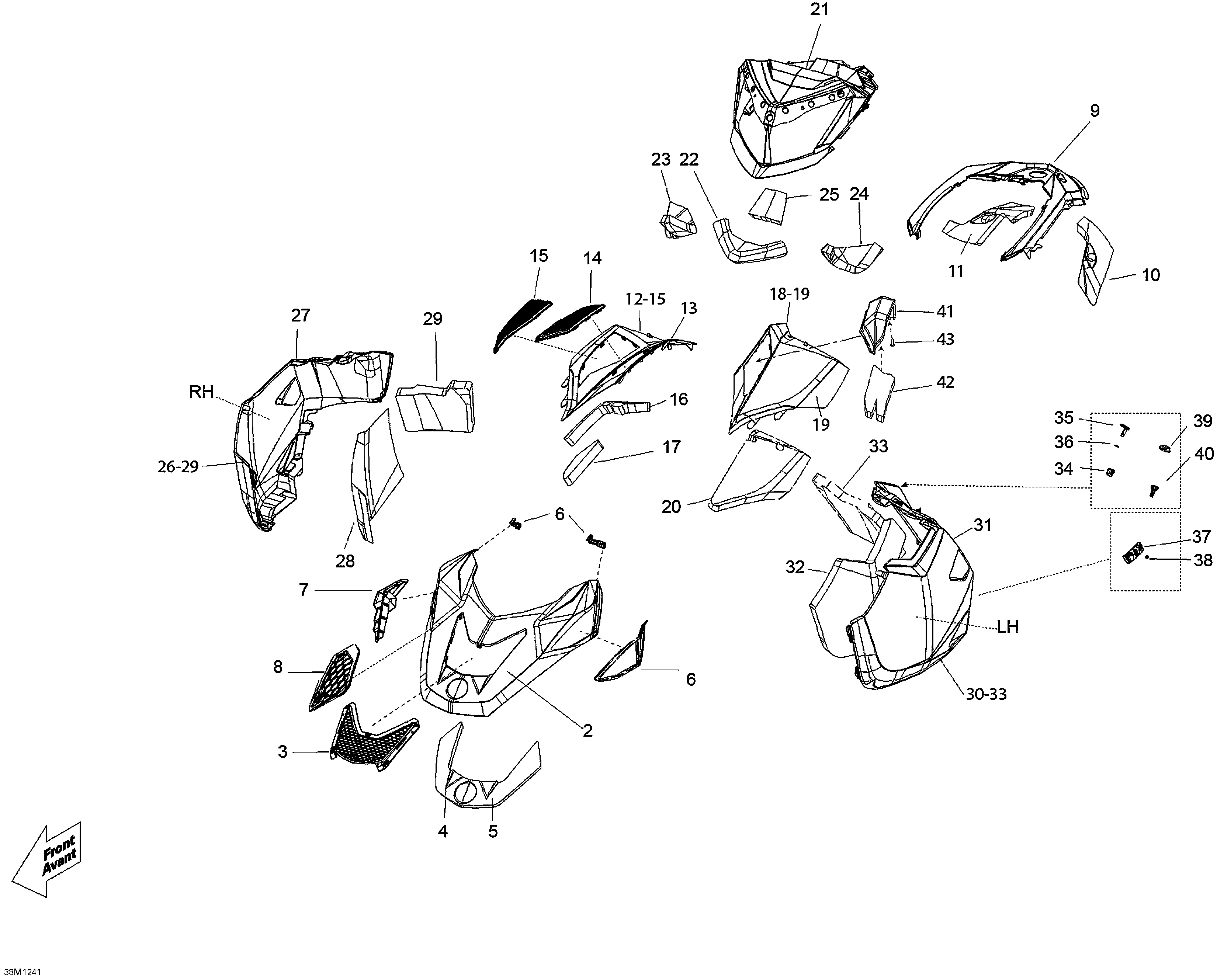

09- Hood для BRP Ski-Doo Skandic WT 550F XU - 2012
-
№АртикулНазвание
-
2517304585 HoodHood
-
3517304843 Hood GrillHood Grill
-
4517304330 Insulator LHInsulator LH
-
5517304214 Insulator RHInsulator RH
-
6517304289 Latch PannelLatch Pannel
-
7517304855 Intake GrillIntake Grill
-
8517304584 Intake GrillIntake Grill
-
9517304820 ConsoleConsole
-
10517304317 InsulatorInsulator
-
11517304318 InsulatorInsulator
-
13517304822 Side Access Panel-RHSide Access Panel-RH
-
14517304015 RH Access Panel GrillRH Access Panel Grill
-
15517304016 RH Lower Acces GrillRH Lower Acces Grill
-
16517304311 InsulatorInsulator
-
17517304312 InsulatorInsulator
-
19517304833 Side Access Panel-LHSide Access Panel-LH
-
20517304313 InsulatorInsulator
-
21517304002 Gauge SupportGauge Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
27517304328 Side Panel-RhSide Panel-Rh
-
28517304709 Foam RightFoam Right
-
29517304310 RH Rear FoamRH Rear Foam
-
31517304329 Side Panel-LHSide Panel-LH
-
32517304707 Foam LHFoam LH
-
33517304309 LH Rear FoamLH Rear Foam
-
34517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
35517304296 Quarter-Turn HandleQuarter-Turn Handle
-
36517304538 Locking PlateLocking Plate
-
37517304497 Side Panel SupportSide Panel Support
-
3836005 RivetRivet
-
39860200239 Black Latch KitBlack Latch Kit
-
40517304573 Latch-PanelLatch-Panel
-
41509000687 Air Out DeflecAir Out Deflec
-
42509000831 Foam-InFoam-In
-
43293700048 Screw Plastofast Mp 6 X 16 PzScrew Plastofast Mp 6 X 16 Pz
