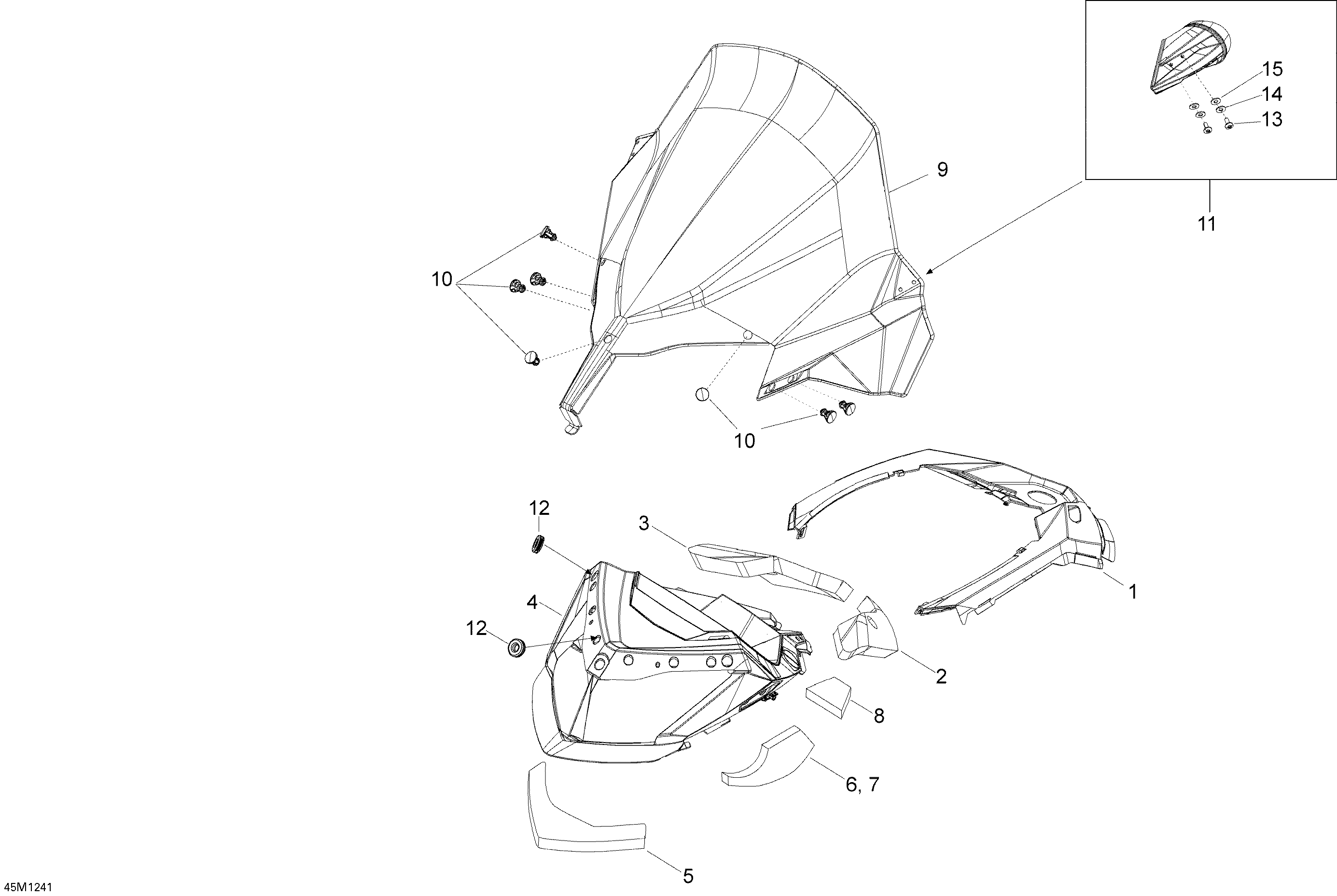

09- Windshield And Console для BRP Ski-Doo Skandic WT 550F XU - 2012
-
№АртикулНазвание
-
1517304820 ConsoleConsole
-
2517304317 InsulatorInsulator
-
3517304318 InsulatorInsulator
-
4517304272 Indicator SupportIndicator Support
-
5517304314 InsulatorInsulator
-
6517304315 InsulatorInsulator
-
7517304316 InsulatorInsulator
-
8517304319 InsulatorInsulator
-
9860200555 Windshield Ass'yWindshield Ass'y
-
10517304744 ButtonButton
-
11517304628 Mirror RH/LHMirror RH/LH
-
12517303756 GrommetGrommet
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14M20117 WasherWasher
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
