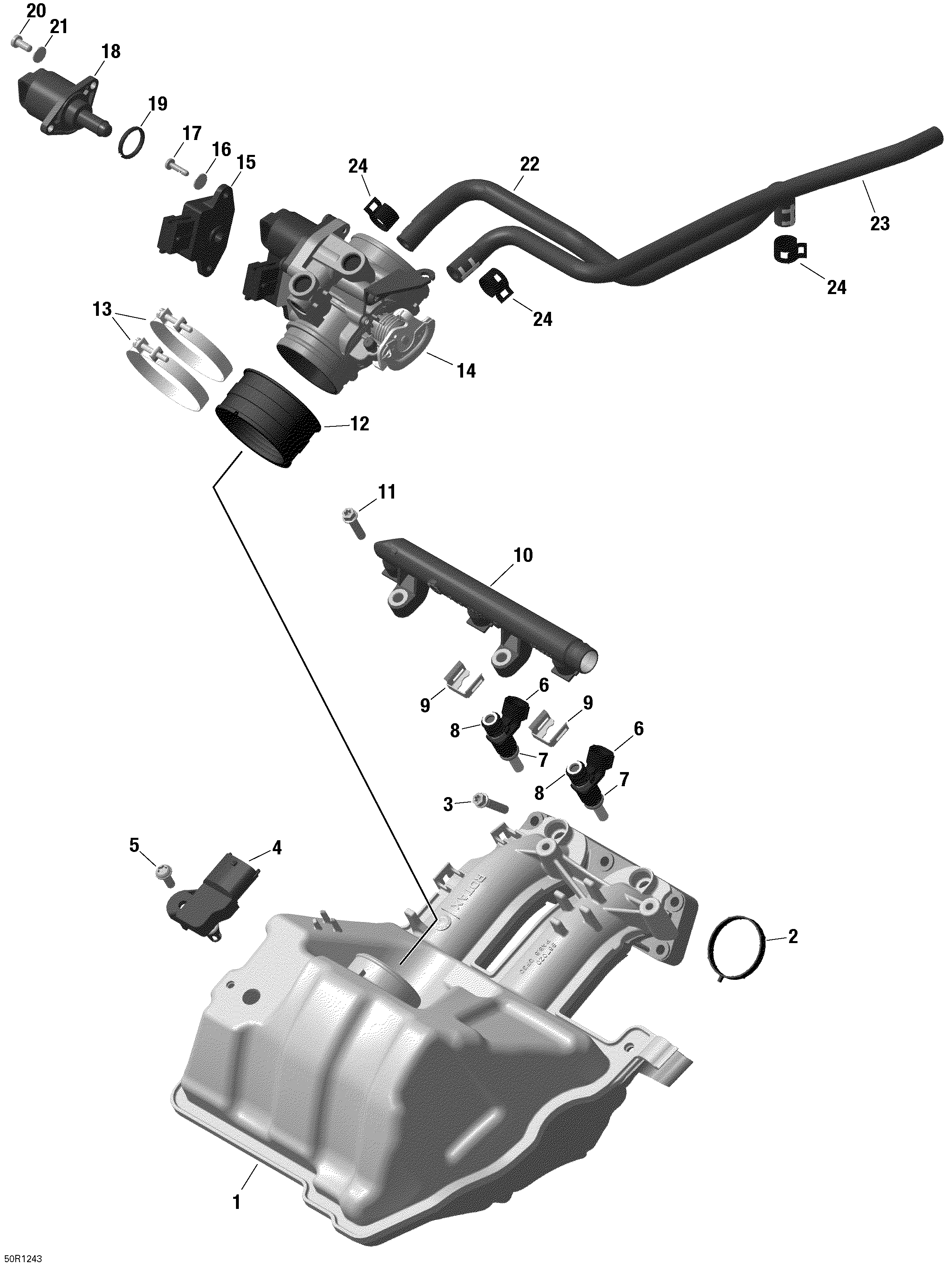

01- Air Inlet Manifold And Throttle Body для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) - 2012

№

Артикул

Название
1-2

420867020 Air Intake Manifold Ass'y

Air Intake Manifold Ass'y

68 530 ₽
2

420431660 Gasket

Gasket

900 ₽
3

420440647 Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%

Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 11NM +/- 12%

740 ₽
4

707000995 Pressure And Temperature Sensor. BOSCH 0261230030

Pressure And Temperature Sensor. BOSCH 0261230030

18 180 ₽
5

420641583 Flanged Torx Screw M6 X 16. TIGHTENING TORQUE 6NM +/- 12%

Flanged Torx Screw M6 X 16. TIGHTENING TORQUE 6NM +/- 12%

850 ₽
6-8

420874838 Injection Valve Ass'y

Injection Valve Ass'y

15 600 ₽
7

420431890 O-Ring. INCLUDED IN GASKET KIT

O-Ring. INCLUDED IN GASKET KIT

2 260 ₽
8

420631220 O-Ring. INCLUDED IN GASKET KIT

O-Ring. INCLUDED IN GASKET KIT

4 900 ₽
9

420853030 Clip

Clip

1 120 ₽
10

420874960 Fuel Rail

Fuel Rail

1 200 ₽
11

420440234 Flanged Torx Screw M6 X 25. TIGHTENING TORQUE 11NM +/- 12%

Flanged Torx Screw M6 X 25. TIGHTENING TORQUE 11NM +/- 12%

1 120 ₽
12

420460495 Intake Adaptor

Intake Adaptor

3 090 ₽
13

420251480 Clamp. TIGHTENING TORQUE 0,7NM +/- 12%

Clamp. TIGHTENING TORQUE 0,7NM +/- 12%

4 900 ₽
14-21

420296879 Throttle Body Ass'y

Throttle Body Ass'y

30 710 ₽
18

420665940 Idle Bypass Valve

Idle Bypass Valve

14 180 ₽
19

420631780 O-Ring. INCLUDED IN GASKET KIT

O-Ring. INCLUDED IN GASKET KIT

1 540 ₽
20

420440911 Binding Head Screw M5 X 16. TIGHTENING TORQUE 4,5NM +/- 12%

Binding Head Screw M5 X 16. TIGHTENING TORQUE 4,5NM +/- 12%

1 280 ₽
21

420845710 Snap Ring

Snap Ring

380 ₽
22

420460910 Molded Hose

Molded Hose

1 590 ₽
23

420460915 Molded Hose

Molded Hose

2 180 ₽
24

420853511 Clamp

Clamp

2 440 ₽
