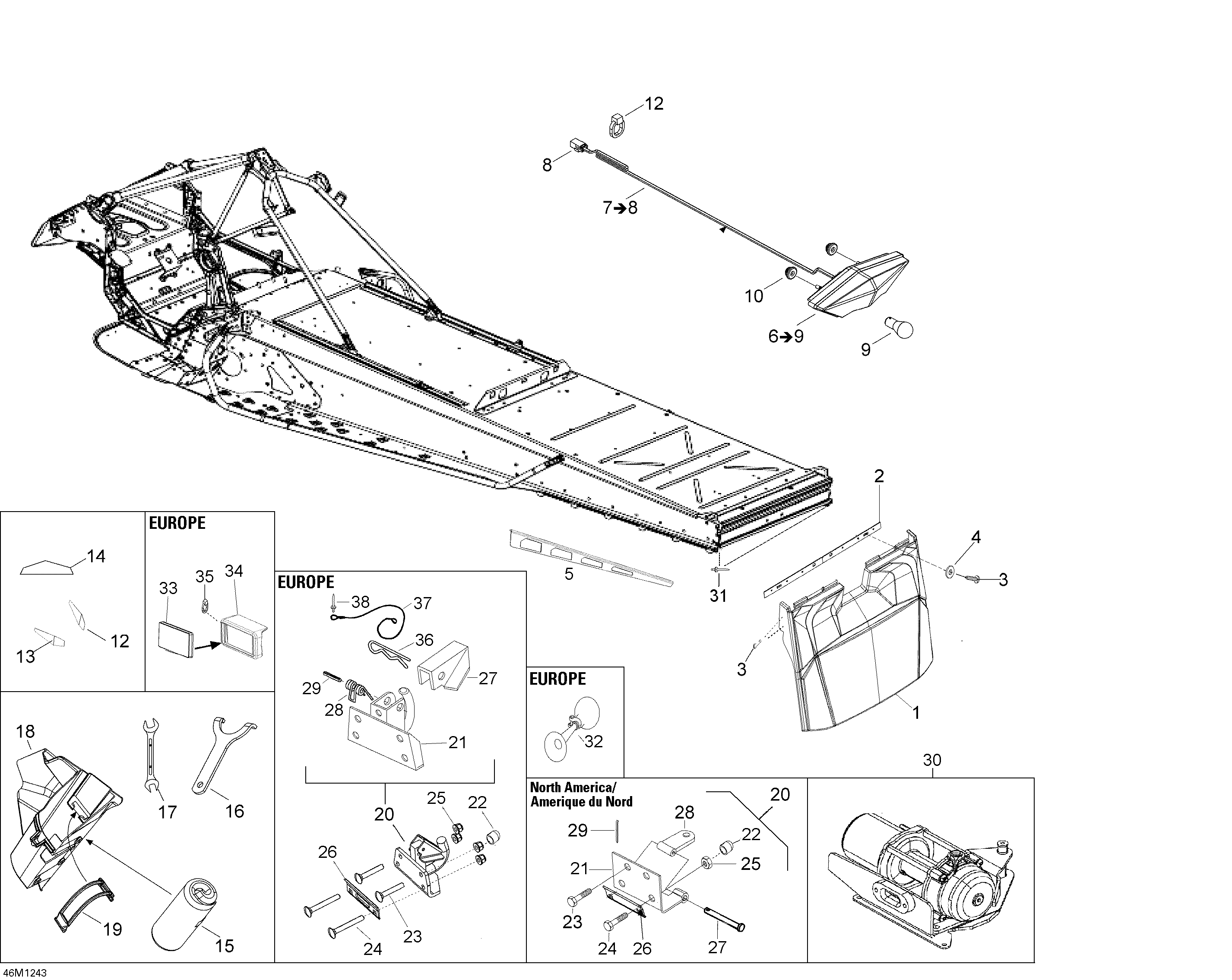

09- Utilities для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) - 2012
-
№АртикулНазвание
-
1520000990 Snow Guard Ski-Doo 500, Short, Black. North AmericaSnow Guard Ski-Doo 500, Short, Black. North America
-
1520001095 Snow Guard Ski-Doo 500, Short, Black. EuropeSnow Guard Ski-Doo 500, Short, Black. Europe
-
2520001021 PlatePlate
-
3732600030 ScrewScrew
-
4250200025 Washer M5Washer M5
-
5520000694 LH ProtectorLH Protector
-
5520000693 RH ProtectorRH Protector
-
6520000587 Rear Light. EuropeRear Light. Europe
-
6520000848 Rear Light. North AmericaRear Light. North America
-
7520000849 Rear Wiring HarnessRear Wiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9520000758 BulbBulb
-
10705003666 Rubber GrommetRubber Grommet
-
12520000843 RH ReflectorRH Reflector
-
13520000844 LH ReflectorLH Reflector
-
14705002423 Amber Lateral Reflector. EuropeAmber Lateral Reflector. Europe
-
14705003412 Red Reflector. North AmericaRed Reflector. North America
-
15529000054 Tool KitTool Kit
-
16529035582 Adjustment WrenchAdjustment Wrench
-
18520000720 Tool Kit Rack. EuropeTool Kit Rack. Europe
-
18520000894 Tool Kit Rack. North AmericaTool Kit Rack. North America
-
19520000528 LatchLatch
-
20520001039 Hitch Ass'y. EuropeHitch Ass'y. Europe
-
205344152 Hitch Ass'y. North AmericaHitch Ass'y. North America
-
21M5344151 Plate. North AmericaPlate. North America
-
22M28056 CapCap
-
23207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
24207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26520000727 PlatePlate
-
27520001041 Locking Plate. EuropeLocking Plate. Europe
-
28M548745 Hitch Plate. North AmericaHitch Plate. North America
-
28M545693 Spring. EuropeSpring. Europe
-
29M41031 Pin. North AmericaPin. North America
-
29M41012 Retainer Pin. EuropeRetainer Pin. Europe
-
30619400069 Winch KitWinch Kit
-
31293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
32549011291 Horn. EuropeHorn. Europe
-
33M21118 Reflector (White). EuropeReflector (White). Europe
-
34520000871 Reflector Support. EuropeReflector Support. Europe
-
35M27120 Tie Rap 2.4x200. EuropeTie Rap 2.4x200. Europe
-
36M41029 Pin. EuropePin. Europe
-
37M5446839 Retainer Cable. EuropeRetainer Cable. Europe
-
38390909100 Avex Rivet. EuropeAvex Rivet. Europe
