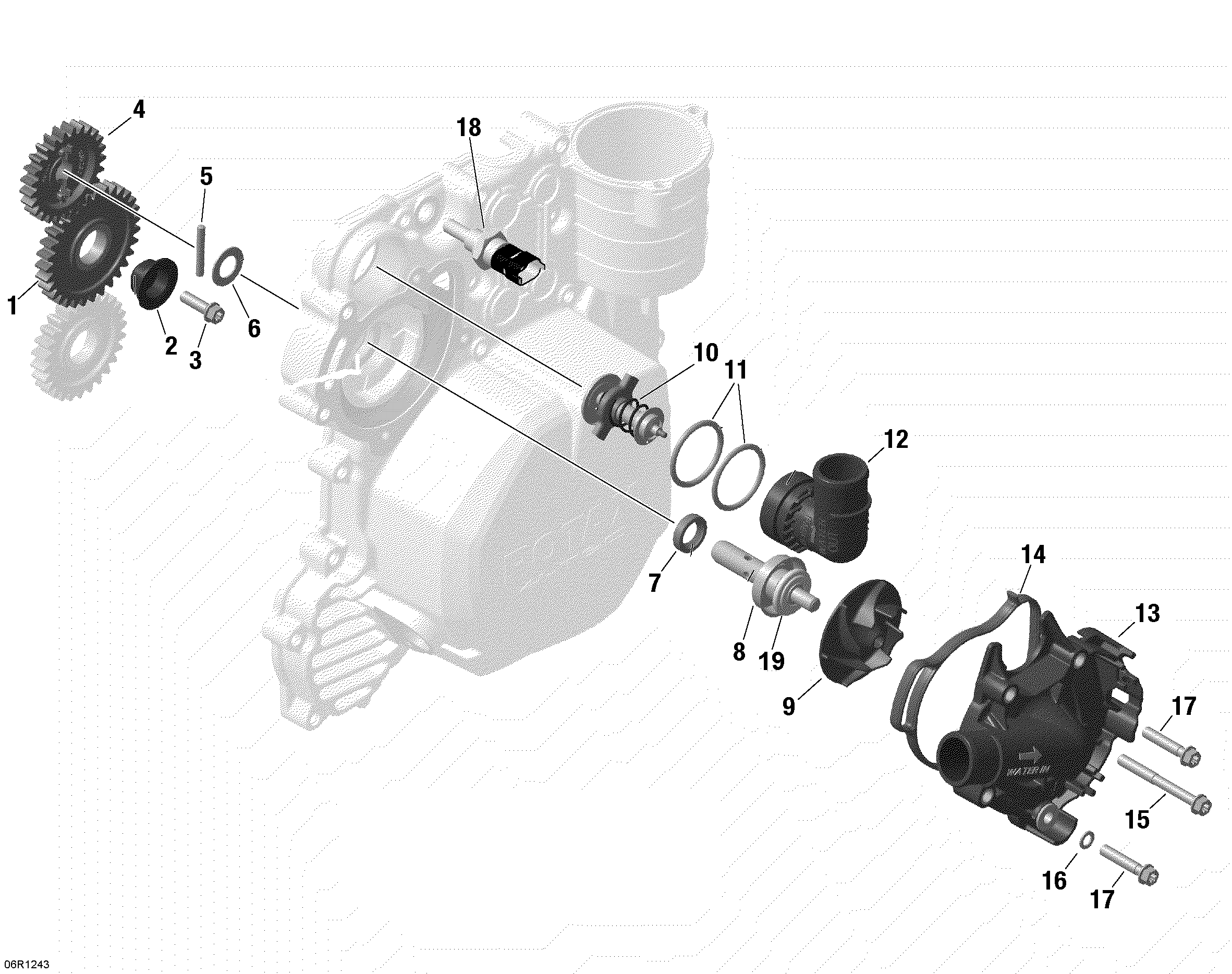

01- Engine Cooling для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) - 2012

№

Артикул

Название
1

420835059 Idle Gear, 31 Teeth

Idle Gear, 31 Teeth

2 120 ₽
2

420947390 Graduated Spacer

Graduated Spacer

2 320 ₽
3

420440207 Flanged Torx Screw M6 X 20. TIGHTENING TORQUE 11NM +/- 12%

Flanged Torx Screw M6 X 20. TIGHTENING TORQUE 11NM +/- 12%

1 120 ₽
4

420835230 Water Pump Gear

Water Pump Gear

1 030 ₽
5

420232430 Needle Pin

Needle Pin

0 ₽
6

420827261 Thrust Washer

Thrust Washer

2 650 ₽
7

420931802 Oil Seal. INCLUDED IN GASKET KIT

Oil Seal. INCLUDED IN GASKET KIT

1 680 ₽
8

420820150 Waterpump Shaft

Waterpump Shaft

9 070 ₽
9

420222880 Water Impeller. TIGHTENING TORQUE 9NM +/- 12%

Water Impeller. TIGHTENING TORQUE 9NM +/- 12%

2 650 ₽
10

420822650 Thermostat

Thermostat

2 680 ₽
11

420950893 O-Ring. INCLUDED IN GASKET KIT

O-Ring. INCLUDED IN GASKET KIT

1 890 ₽
12

420922150 Thermostat Cover

Thermostat Cover

3 000 ₽
13-14

420922290 Water Pump Housing

Water Pump Housing

5 920 ₽
14

420431680 Gasket. INCLUDED IN GASKET KIT

Gasket. INCLUDED IN GASKET KIT

640 ₽
15

420440702 Flanged Torx Screw M6 X 55. TIGHTENING TORQUE 9NM +/- 12%

Flanged Torx Screw M6 X 55. TIGHTENING TORQUE 9NM +/- 12%

1 120 ₽
16

420230415 Seal Washer. INCLUDED IN GASKET KIT

Seal Washer. INCLUDED IN GASKET KIT

670 ₽
17

420440647 Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 9NM +/- 12%

Flanged Torx Screw M6 X 30. TIGHTENING TORQUE 9NM +/- 12%

740 ₽
18

278001016 Temperature Sensor. TIGHTENING TORQUE 16NM +/- 12%

Temperature Sensor. TIGHTENING TORQUE 16NM +/- 12%

8 030 ₽
19

420850946 Seal

Seal

7 960 ₽
