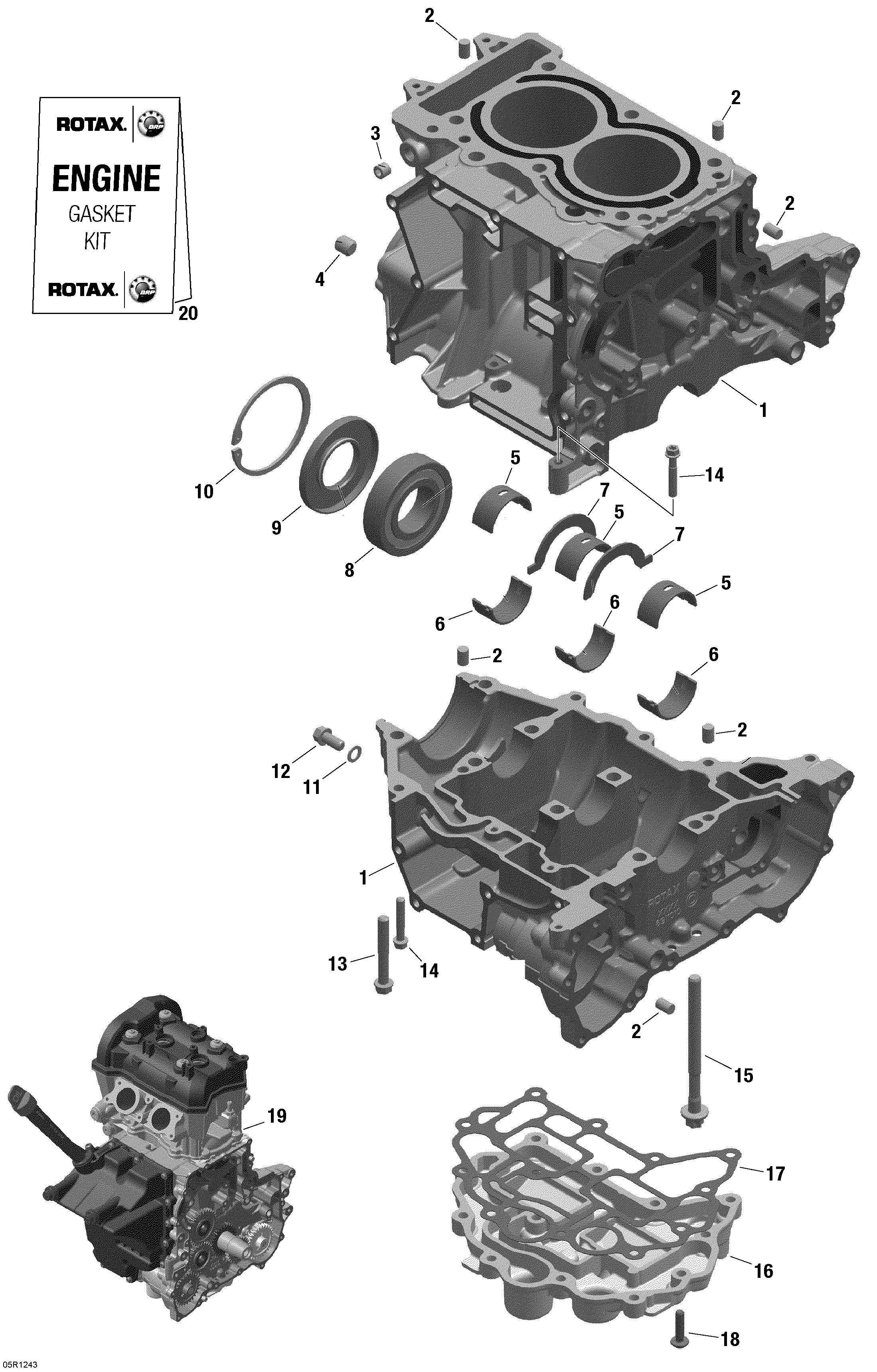

01- Engine Block для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) - 2012

№

Артикул

Название
1-6

420892853 Crankcase Ass'y. Includes 1 to 6

Crankcase Ass'y. Includes 1 to 6

153 990 ₽
2

420632010 Center Pin 8 X 12

Center Pin 8 X 12

1 450 ₽
3

420641323 Plug Screw M10 X 1. TIGHTENING TORQUE 12NM +/- 12%

Plug Screw M10 X 1. TIGHTENING TORQUE 12NM +/- 12%

1 280 ₽
4

420840500 Threaded Pin. TIGHTENING TORQUE 15NM +/- 12%

Threaded Pin. TIGHTENING TORQUE 15NM +/- 12%

590 ₽
5

420933180 Cushion

Cushion

2 580 ₽
6

420933185 Cushion

Cushion

2 950 ₽
7

420933140 Ring Half

Ring Half

3 780 ₽
8

420832232 Ball Bearing

Ball Bearing

1 090 ₽
9

420431400 Oil Seal. INCLUDED IN GASKET KIT

Oil Seal. INCLUDED IN GASKET KIT

1 530 ₽
10

420845790 Retaining Ring

Retaining Ring

690 ₽
11

420950141 Sealing Ring. INCLUDED IN GASKET KIT

Sealing Ring. INCLUDED IN GASKET KIT

790 ₽
12

420440852 Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 20NM +/- 12%

Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 20NM +/- 12%

1 450 ₽
13

420641213 Flanged Torx Screw M8 X 55. TIGHTENING TORQUE 23NM +/- 12%

Flanged Torx Screw M8 X 55. TIGHTENING TORQUE 23NM +/- 12%

2 610 ₽
14

420641258 Flanged Torx Screw M6 X 35. TIGHTENING TORQUE 11NM +/- 12%

Flanged Torx Screw M6 X 35. TIGHTENING TORQUE 11NM +/- 12%

1 800 ₽
15

420940945 Flanged Torx Screw M9 X 113. TIGHTENING TORQUE 20NM +/- 12% +120°

Flanged Torx Screw M9 X 113. TIGHTENING TORQUE 20NM +/- 12% +120°

4 240 ₽
16

420911120 Oil Sump Cover

Oil Sump Cover

0 ₽
17

420431630 Gasket. INCLUDED IN GASKET KIT

Gasket. INCLUDED IN GASKET KIT

2 400 ₽
18

420841546 Flanged Torx Screw M6 X 25. TIGHTENING TORQUE 14NM +/- 12%

Flanged Torx Screw M6 X 25. TIGHTENING TORQUE 14NM +/- 12%

450 ₽
19

420060201 Long Block 602 ACE

Long Block 602 ACE

398 250 ₽
20

420686020 Gasket Set, Engine

Gasket Set, Engine

0 ₽
