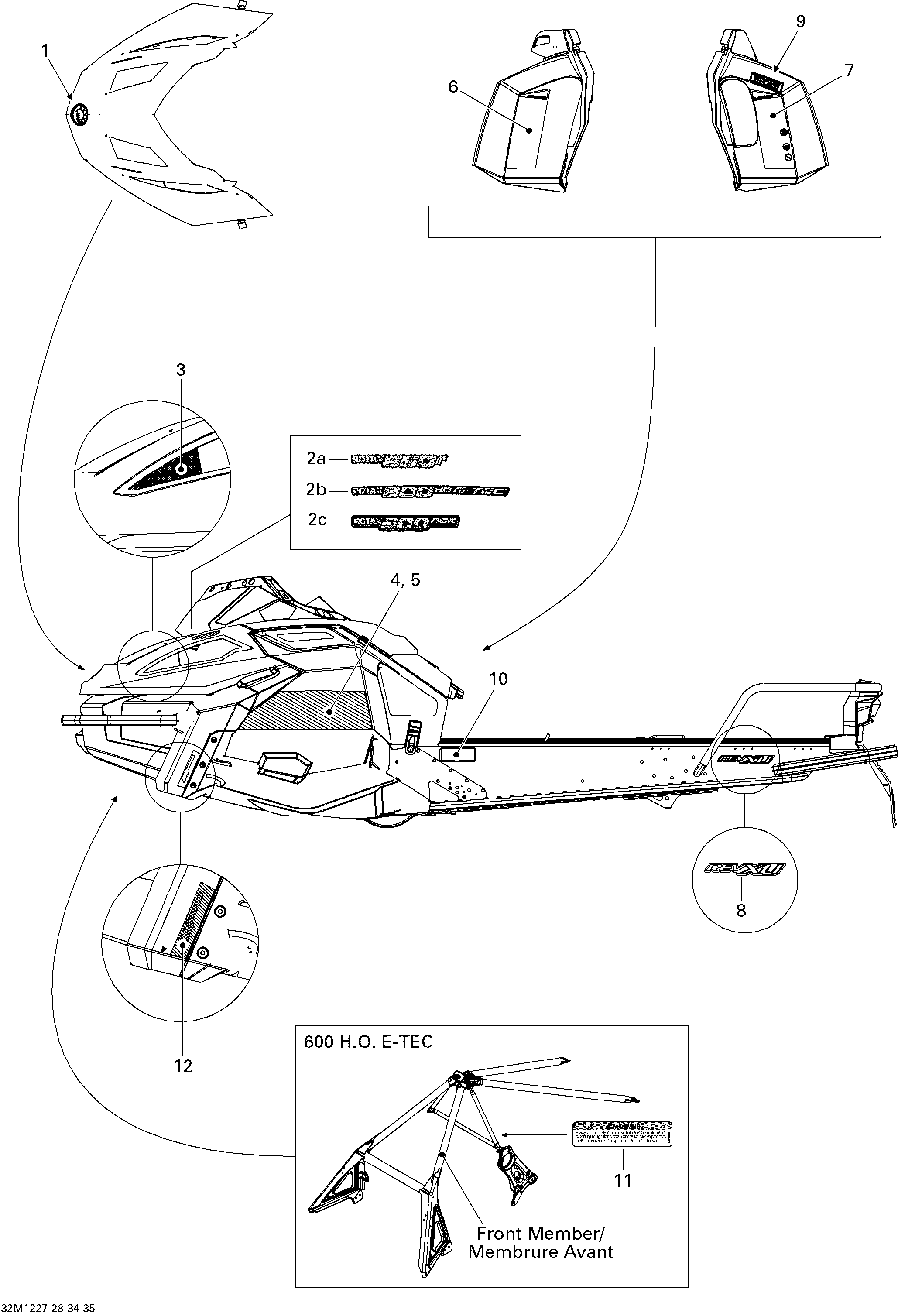

09- Decals для BRP Ski-Doo Tundra Xtreme 600HOETEC XP-LTS - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516004441 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
4516004444 RH Side DecalRH Side Decal
-
5516004443 LH Side DecalLH Side Decal
-
6516004561 Warning Decal, SecurityWarning Decal, Security
-
7516004888 Warning Decal, SecurityWarning Decal, Security
-
8516004442 Decal, REV XUDecal, REV XU
-
9516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
10516004815 Conformity Decal, B.A.T.Conformity Decal, B.A.T.
-
11516003940 Warning Decal, InjectorsWarning Decal, Injectors
-
12516004527 Decal, LTSDecal, LTS
