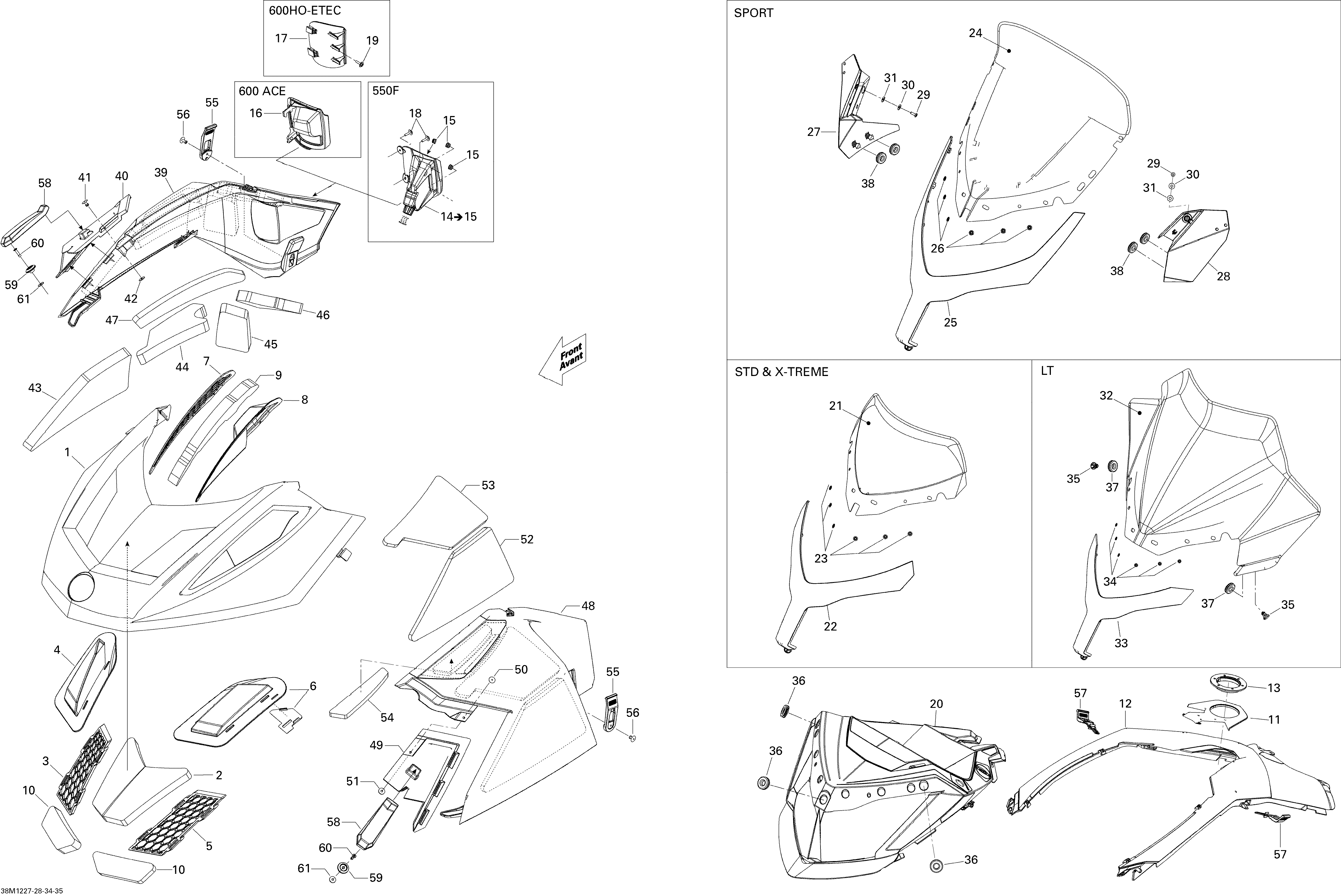

09- Hood, Windshield And Console для BRP Ski-Doo Tundra Xtreme 600HOETEC XP-LTS - 2012
-
№АртикулНазвание
-
1517304616 Hood, BlackHood, Black
-
2517304877 Foam Hood. 600HO ETECFoam Hood. 600HO ETEC
-
3517303805 RH Hood Grill. 600HO ETECRH Hood Grill. 600HO ETEC
-
5517303804 LH Hood Grill. 600HO ETECLH Hood Grill. 600HO ETEC
-
7517304279 RH Lateral Hood Grill. 600HO ETECRH Lateral Hood Grill. 600HO ETEC
-
9517304878 Foam Hood. 600HO ETECFoam Hood. 600HO ETEC
-
10517304879 Foam Hood. 600HO ETECFoam Hood. 600HO ETEC
-
11517304027 Cap ConsoleCap Console
-
12517303741 Console, BlackConsole, Black
-
13517304518 Console NutConsole Nut
-
17517304701 RH Console. 600HO ETECRH Console. 600HO ETEC
-
19250000113 Screw M4 X 16, Type K-40. 600HO ETECScrew M4 X 16, Type K-40. 600HO ETEC
-
20517303742 Indicator Support. XTREMEIndicator Support. XTREME
-
21517303888 Low Windshield (250). XTREMELow Windshield (250). XTREME
-
22517303959 Low Windshield Support. XTREMELow Windshield Support. XTREME
-
23732610072 Push Nut. XTREMEPush Nut. XTREME
-
36517303756 GrommetGrommet
-
39517304617 RH Panel, BlackRH Panel, Black
-
40517304090 RH InsertRH Insert
-
41293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
42517124300 WasherWasher
-
43517304870 FoamFoam
-
44517304871 FoamFoam
-
45517304872 Foam. 600HO ETECFoam. 600HO ETEC
-
46517304873 Foam. 600HO ETECFoam. 600HO ETEC
-
47517304876 Foam. 600HO ETECFoam. 600HO ETEC
-
48517304618 LH Panel. 600HO ETECLH Panel. 600HO ETEC
-
49517304092 LH Panel InsertLH Panel Insert
-
50293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
51517124300 WasherWasher
-
52517304874 FoamFoam
-
53517304875 FoamFoam
-
55517304999 Rear Panel LatchRear Panel Latch
-
56293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
57517304093 Center Panel LatchCenter Panel Latch
-
58517304094 Front Latch PanelFront Latch Panel
-
59517304320 Anchor LinkAnchor Link
-
60293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
61517124300 WasherWasher
