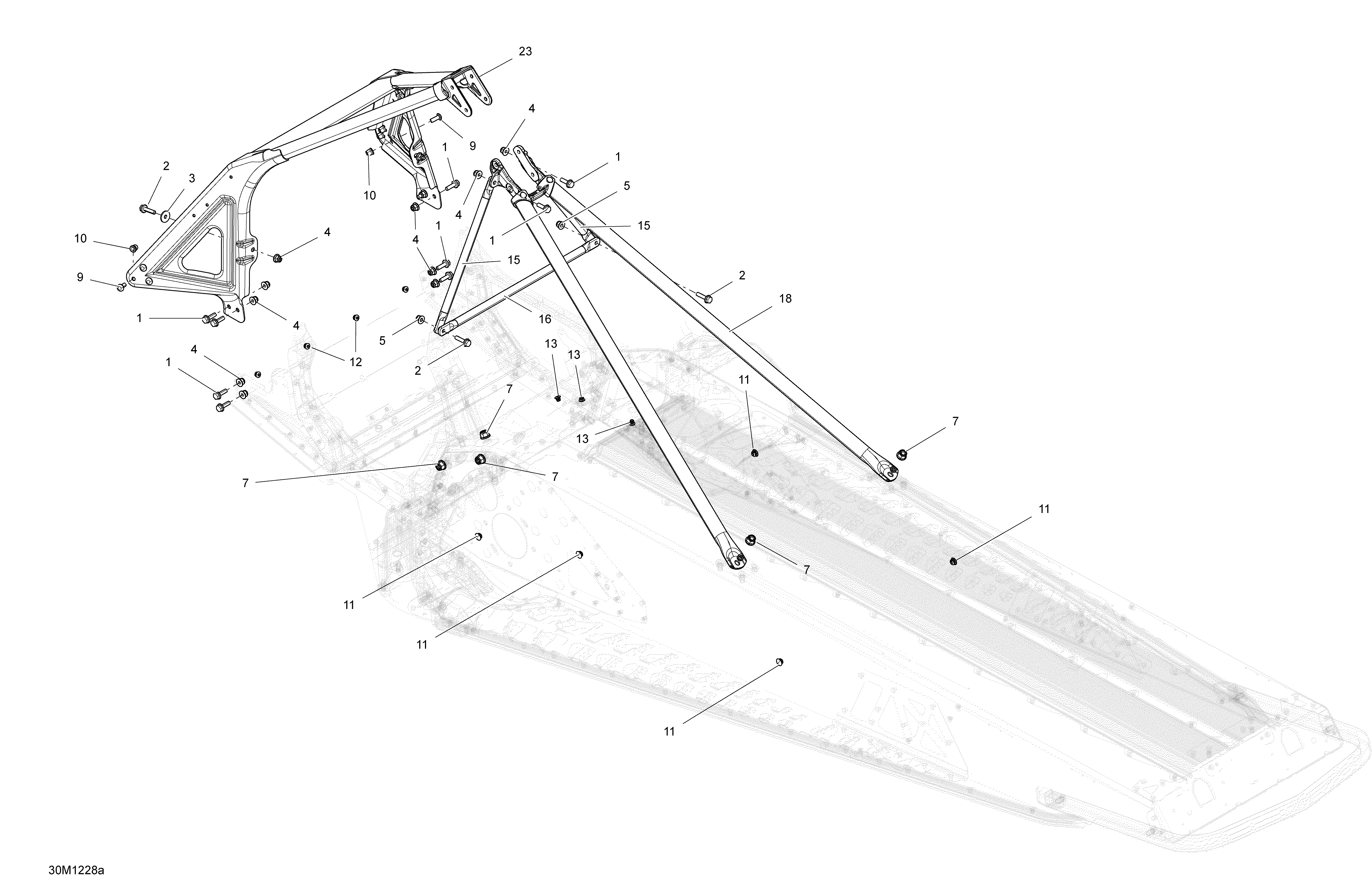

09- Frame Common Parts для BRP Ski-Doo Tundra Xtreme 600HOETEC XP-LTS - 2012
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3224061201 Flat WasherFlat Washer
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11293730047 Dart 8 mm, BlackDart 8 mm, Black
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
15518325114 Upper Column SupportUpper Column Support
-
16518325115 Center Column SupportCenter Column Support
-
18518326559 Rear MemberRear Member
-
23518326558 Front MemberFront Member
