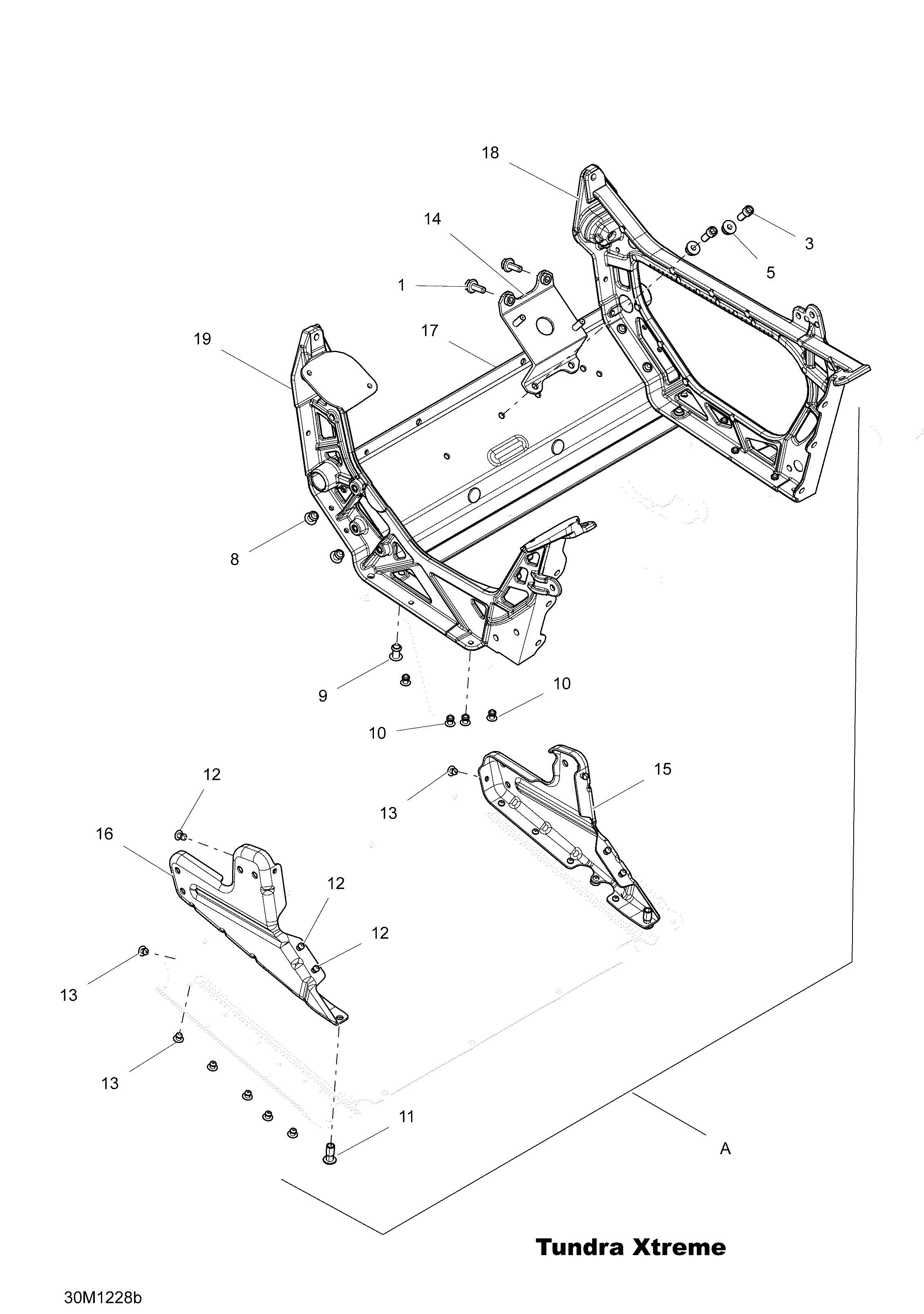

09- Frame E Module для BRP Ski-Doo Tundra Xtreme 600HOETEC XP-LTS - 2012
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3250000512 Socket Screw Head 1/4-20 X 5/8''Socket Screw Head 1/4-20 X 5/8''
-
5250100140 Elastic Hex. Flange Nut 1/4-20Elastic Hex. Flange Nut 1/4-20
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10293150144 Stavex RivetStavex Rivet
-
11293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
12390909100 Avex RivetAvex Rivet
-
13390909200 Avex RivetAvex Rivet
-
14518325943 MAG Engine SupportMAG Engine Support
-
15518325949 RH Front MemberRH Front Member
-
16518325950 LH Front MemberLH Front Member
-
17518326198 Front MemberFront Member
-
18518326795 RH MemberRH Member
-
19518326796 LH MemberLH Member
-
A518326927 Module E TUNDRA XtremeModule E TUNDRA Xtreme
