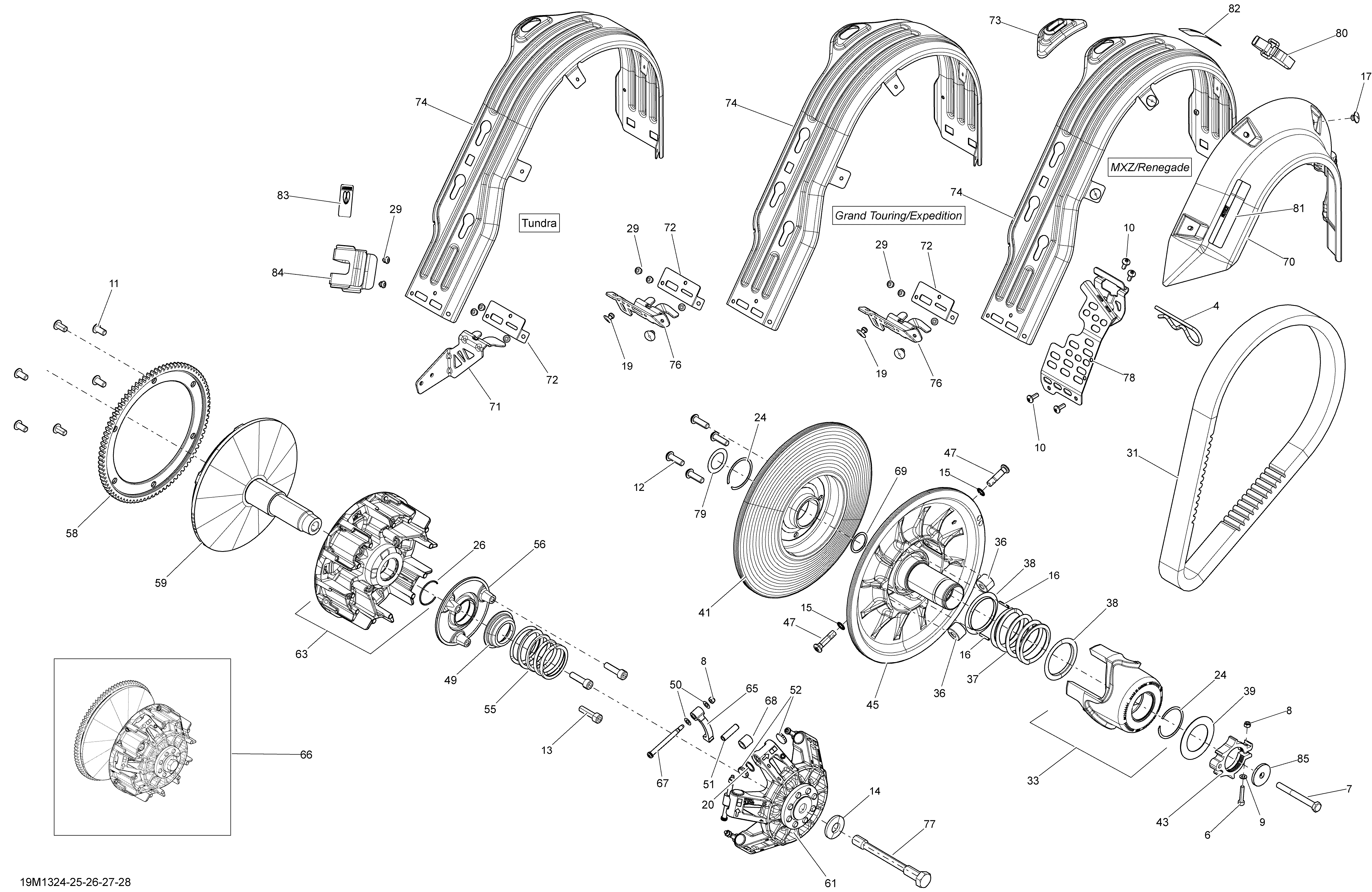

05- Pulley System для BRP Ski-Doo EXPEDITION SPORT 550F XP - 2013
-
№АртикулНазвание
-
4114045200 Hair PinHair Pin
-
6205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
7207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
8232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
9234051410 Flat Washer M5Flat Washer M5
-
10250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
11250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
12250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
13250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
14250200006 Spring Washer 14 mmSpring Washer 14 mm
-
15250200009 Lock Washer 8 mmLock Washer 8 mm
-
16250400061 Spring Pin M3 X 18Spring Pin M3 X 18
-
17293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20293300145 O-ringO-ring
-
24293370049 CirclipCirclip
-
26293370065 CirclipCirclip
-
29390909200 Avex RivetAvex Rivet
-
31414860700 Drive BeltDrive Belt
-
33417127011 Cam Ass'y. Tundra, ExpeditionCam Ass'y. Tundra, Expedition
-
36417127016 RollerRoller
-
37417127061 SpringSpring
-
38417127116 Swivel AbutmentSwivel Abutment
-
39417127155 WasherWasher
-
41417127231 Slider Flange Ass'ySlider Flange Ass'y
-
43415129604 Calibration Ass'yCalibration Ass'y
-
45417127334 Fixe Flange Ass'yFixe Flange Ass'y
-
47417127259 Pivot StudPivot Stud
-
49417223155 Spring SeatSpring Seat
-
50417223255 Thrust WasherThrust Washer
-
51417223257 Roller AxleRoller Axle
-
52417223269 Slider ShoeSlider Shoe
-
55417223315 Spring ClutchSpring Clutch
-
56417223615 Slider Adaptor Ass'ySlider Adaptor Ass'y
-
58417223476 Crown Gear LaunchCrown Gear Launch
-
59417223534 Fixe Flange Ass'yFixe Flange Ass'y
-
61417223565 Governor Cup Ass'yGovernor Cup Ass'y
-
63417223606 Slider Flange Ass'ySlider Flange Ass'y
-
65417223557 Ramp 700. Tundra, ExpeditionRamp 700. Tundra, Expedition
-
67417223694 Ramp AxleRamp Axle
-
68417223767 RollerRoller
-
69417300265 SpacerSpacer
-
70417300356 Side ProtectorSide Protector
-
71417300374 Front Belt Guard BracketFront Belt Guard Bracket
-
72417300380 ReinforcementReinforcement
-
73417300381 GuideGuide
-
74417300382 Belt GuardBelt Guard
-
76417300386 Front Belt Guard BracketFront Belt Guard Bracket
-
77417300407 Drive Bolt PulleyDrive Bolt Pulley
-
78417300446 Belt Guard BracketBelt Guard Bracket
-
79504112000 ShimShim
-
81516005503 Decal, EnglishDecal, English
-
82516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
85517302322 Strength WasherStrength Washer
