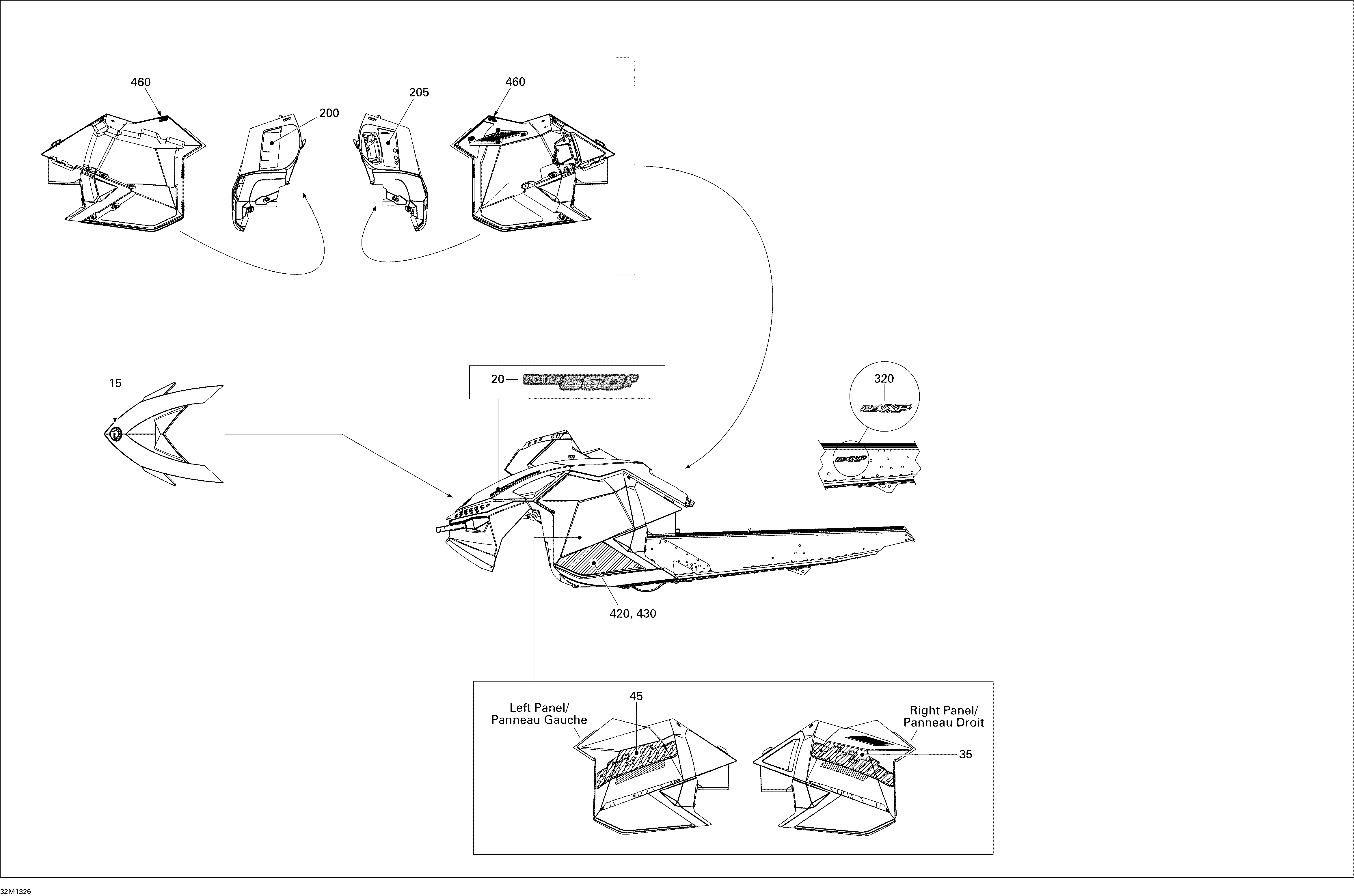

09- Decals для BRP Ski-Doo EXPEDITION SPORT 550F XP - 2013
![](/wa-data/public/shop/sheme/bombardier/ski-doo/856acca4-03f3-4c7c-9e1c-1c7186c343c5.png)
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005236 Hood Decal, Rotax 550fHood Decal, Rotax 550f
-
35516005290 RH Side DecalRH Side Decal
-
45516005289 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516004205 Decal REV XPDecal REV XP
-
420516005294 RH Lower DecalRH Lower Decal
-
430516005293 LH Lower DecalLH Lower Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
