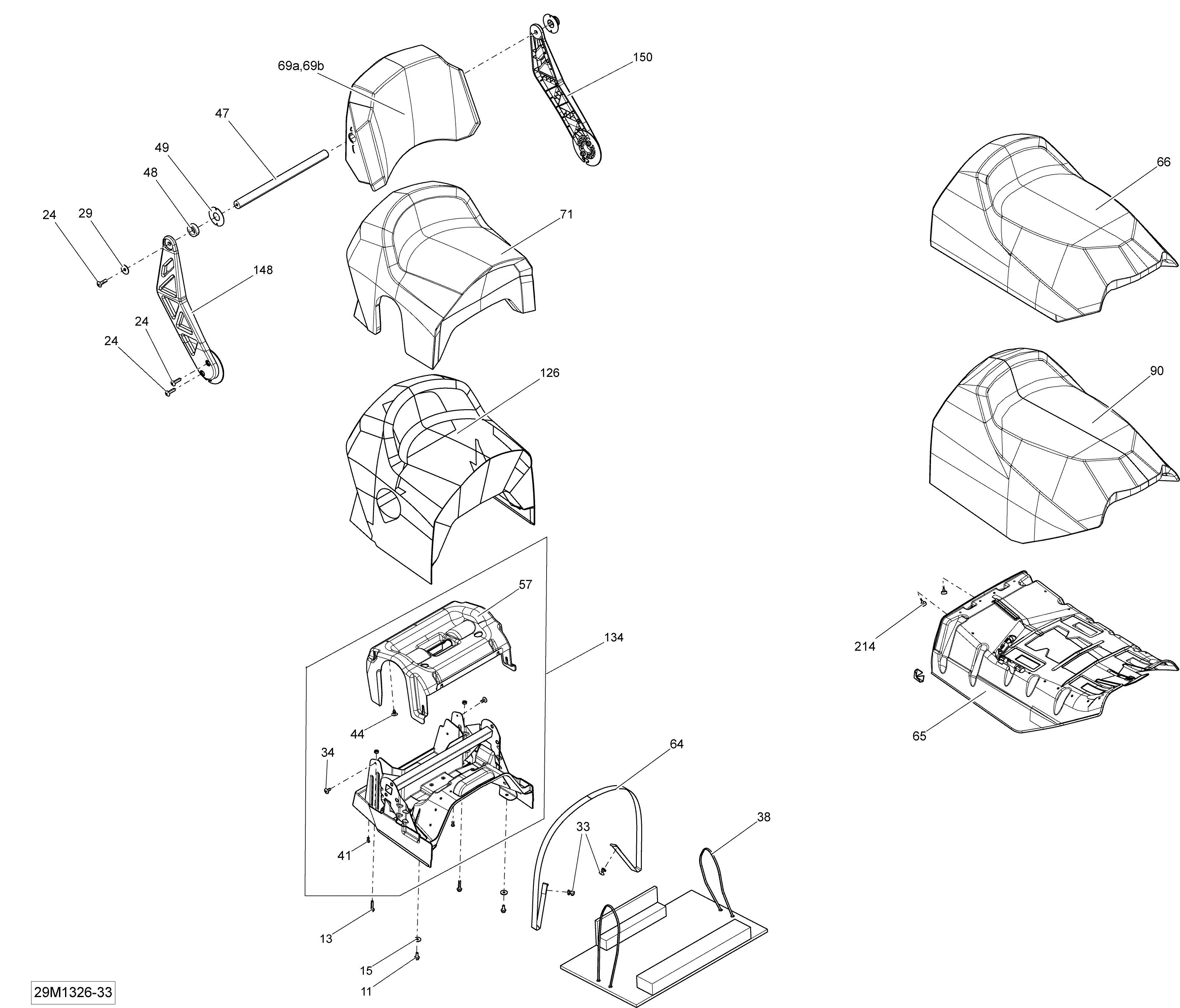

09- Seat для BRP Ski-Doo EXPEDITION SPORT 550F XP - 2013
-
№АртикулНазвание
-
11207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
13207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
15224061201 Flat WasherFlat Washer
-
24250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
29250200128 Flat Washer 8 mmFlat Washer 8 mm
-
33293150067 Rivet TRI-FASTRivet TRI-FAST
-
34390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
44414644300 DartDart
-
47510004377 Upper Backrest AxleUpper Backrest Axle
-
48510004378 Rubber ShimRubber Shim
-
49510004379 WasherWasher
-
57510004423 Foam SupportFoam Support
-
64510004768 Seat BeltSeat Belt
-
65510004775 Front Seat BaseFront Seat Base
-
66510004777 Front Seat FoamFront Seat Foam
-
69a510004782 Backrest FoamBackrest Foam
-
69b510005309 Backrest CoverBackrest Cover
-
71510004791 Rear Seat FoamRear Seat Foam
-
90510005181 Seat CoverSeat Cover
-
126510005399 Rear Seat CoverRear Seat Cover
-
134510005535 Seat Base Ass'ySeat Base Ass'y
-
148510005548 RH Arm, BlackRH Arm, Black
-
150510005549 LH Arm, BlackLH Arm, Black
-
214708000759 Rubber StopperRubber Stopper
