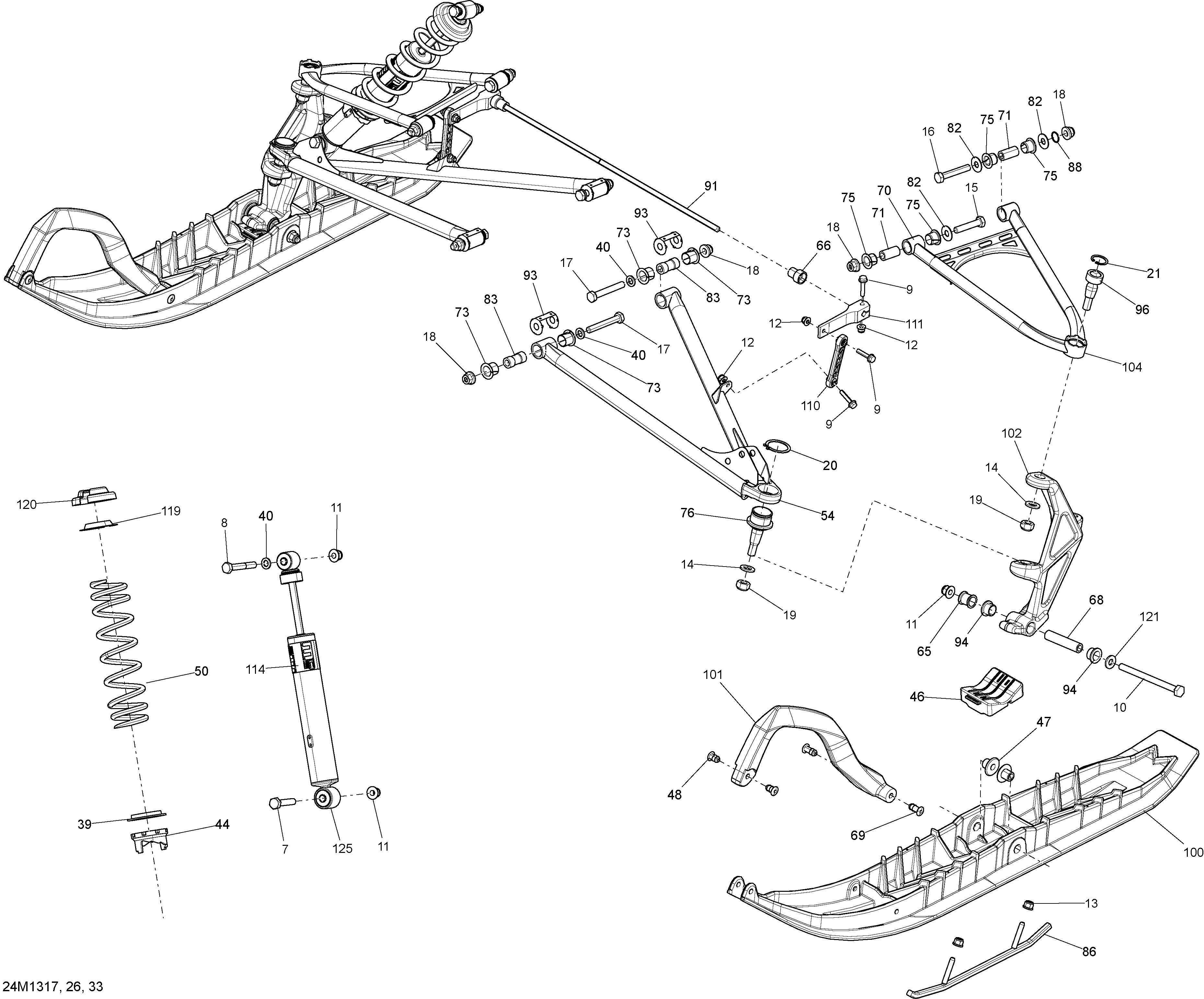

07- Front Suspension And Ski для BRP Ski-Doo EXPEDITION SPORT 550F XP - 2013
-
№АртикулНазвание
-
7207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
8207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
9207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
10230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
11233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
12233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503192491 WasherWasher
-
15250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
16250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
17250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
18250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
19232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
20293370035 CirclipCirclip
-
21293370070 CirclipCirclip
-
39503187500 Spring Guide. EXPEDITIONSpring Guide. EXPEDITION
-
40503189564 WasherWasher
-
44505070150 Adjustment Cam. EXPEDITIONAdjustment Cam. EXPEDITION
-
46505072594 Ski StopperSki Stopper
-
47505071781 Cushion. EXPEDITION Except 4MRCushion. EXPEDITION Except 4MR
-
48505071812 Retainer. EXPEDITION Except 4MRRetainer. EXPEDITION Except 4MR
-
50505072897 Painted Spring. EXPEDITIONPainted Spring. EXPEDITION
-
54505072497 RH Lower ArmRH Lower Arm
-
54505072498 LH Lower ArmLH Lower Arm
-
65505071999 SpacerSpacer
-
66505072064 Bushing. EXPEDITIONBushing. EXPEDITION
-
68506133300 SpacerSpacer
-
69505072133 Retainer. EXPEDITION Except 4MRRetainer. EXPEDITION Except 4MR
-
71505072143 BushingBushing
-
73505072208 BushingBushing
-
75505072250 BushingBushing
-
76505072682 Lower Ball JointLower Ball Joint
-
82505072392 WasherWasher
-
83505072393 Bushing. EXPEDITIONBushing. EXPEDITION
-
86860200141 Carbide Runner KitCarbide Runner Kit
-
88505072448 O-RingO-Ring
-
91505072602 Stabilisator. EXPEDITIONStabilisator. EXPEDITION
-
93505072634 Wear PlateWear Plate
-
94505072690 Leg CushionLeg Cushion
-
96505072913 Upper Ball JointUpper Ball Joint
-
100415129567 DS Ski, Black. EXPEDITION Except 4MRDS Ski, Black. EXPEDITION Except 4MR
-
101505072976 Handle, Black. EXPEDITION Except 4MRHandle, Black. EXPEDITION Except 4MR
-
102505073043 LH Machined Ski Leg. EXPEDITION Except 4MRLH Machined Ski Leg. EXPEDITION Except 4MR
-
102505073044 RH Machined Ski Leg. EXPEDITION Except 4MRRH Machined Ski Leg. EXPEDITION Except 4MR
-
104505073074 LH Upper ArmLH Upper Arm
-
104505073076 RH Upper ArmRH Upper Arm
-
110505072204 Double Ball Joint Link. EXPEDITIONDouble Ball Joint Link. EXPEDITION
-
111505072394 Stabilisator Lever. EXPEDITIONStabilisator Lever. EXPEDITION
-
114516005535 Shock Decal, Mc. EXPEDITIONShock Decal, Mc. EXPEDITION
-
119706200785 CapCap
-
120706200881 Spring Stopper. EXPEDITIONSpring Stopper. EXPEDITION
-
121503192496 WasherWasher
-
125505073181 Front Shock. EXPEDITIONFront Shock. EXPEDITION
