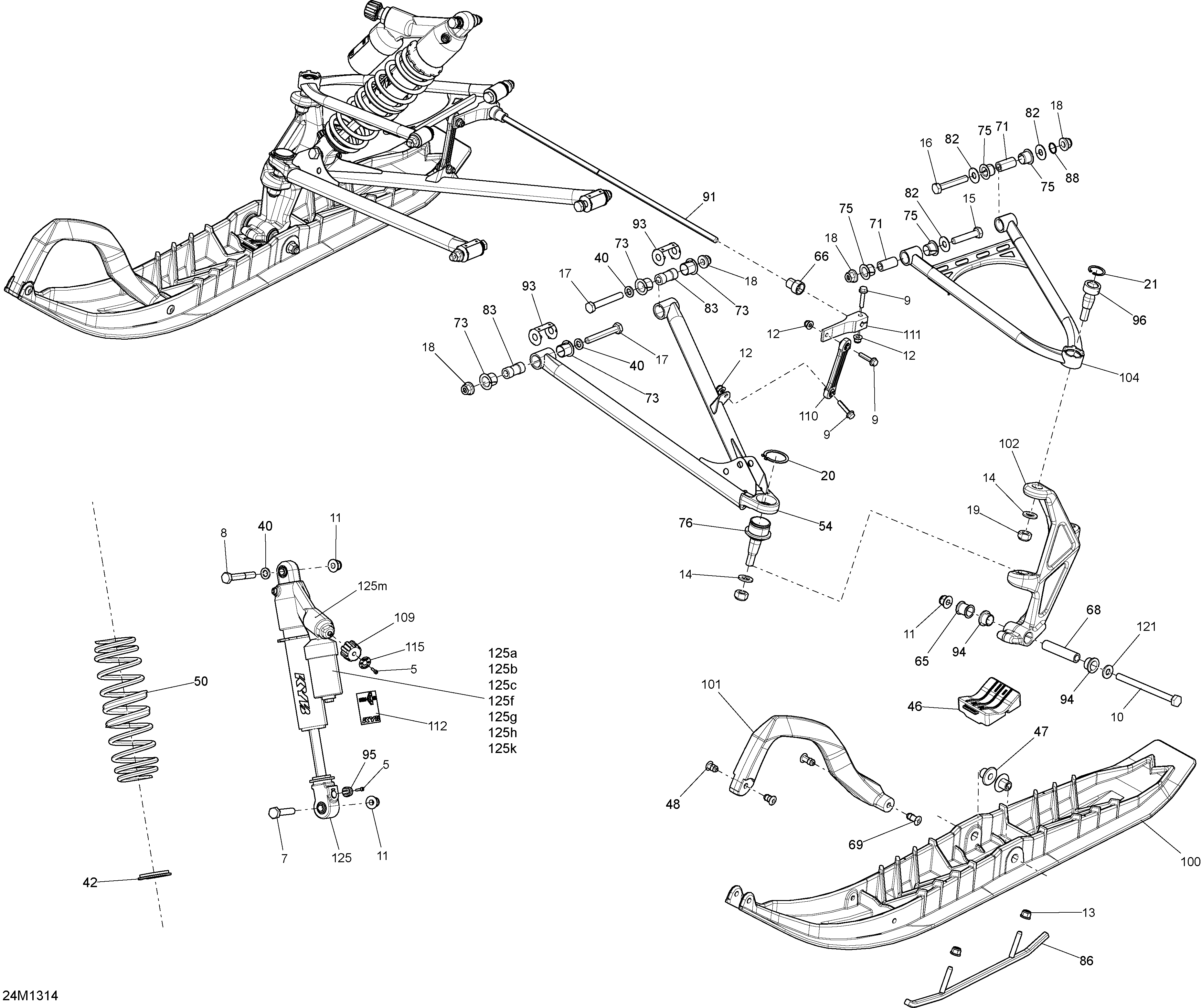

07- Front Suspension And Ski для BRP Ski-Doo FREERIDE 137, 146, 154, 800RE XP - 2013
-
№АртикулНазвание
-
5250000644 Allen Screw M3 X 10. FREERIDEAllen Screw M3 X 10. FREERIDE
-
7207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
8207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
9207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
10230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
11233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
12233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503192491 WasherWasher
-
15250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
16250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
17250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
18250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
19232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
20293370035 CirclipCirclip
-
21293370070 CirclipCirclip
-
40503189564 WasherWasher
-
42503192608 Spring Stopper. FREERIDESpring Stopper. FREERIDE
-
46505072594 Ski StopperSki Stopper
-
47505071781 Cushion. FREERIDECushion. FREERIDE
-
48505071812 Retainer. FREERIDERetainer. FREERIDE
-
50505072760 Painted Spring. FREERIDEPainted Spring. FREERIDE
-
54505072497 RH Lower ArmRH Lower Arm
-
54505072498 LH Lower ArmLH Lower Arm
-
65505071999 SpacerSpacer
-
66505072786 Bushing. FREERIDEBushing. FREERIDE
-
68506133300 SpacerSpacer
-
69505072133 Retainer. FREERIDERetainer. FREERIDE
-
71505072143 BushingBushing
-
73505072208 BushingBushing
-
75505072250 BushingBushing
-
76505072682 Lower Ball JointLower Ball Joint
-
82505072392 WasherWasher
-
83505072214 Bushing. FREERIDEBushing. FREERIDE
-
86860200141 Carbide Runner KitCarbide Runner Kit
-
88505072448 O-RingO-Ring
-
91505072785 Stabilisator. FREERIDEStabilisator. FREERIDE
-
93505072634 Wear PlateWear Plate
-
94505072690 Leg CushionLeg Cushion
-
95505072753 Adjustment Knob. FREERIDEAdjustment Knob. FREERIDE
-
96505072913 Upper Ball JointUpper Ball Joint
-
100415129567 DS Ski, Black. FREERIDEDS Ski, Black. FREERIDE
-
101505072976 Handle, Black. FREERIDEHandle, Black. FREERIDE
-
102505073247 LH Painted Ski Leg. FREERIDELH Painted Ski Leg. FREERIDE
-
102505073248 RH Painted Ski Leg. FREERIDERH Painted Ski Leg. FREERIDE
-
104505073074 LH Upper ArmLH Upper Arm
-
104505073076 RH Upper ArmRH Upper Arm
-
109503193025 Adjustment Knob. FREERIDEAdjustment Knob. FREERIDE
-
110505073172 Double Ball Joint Link. FREERIDEDouble Ball Joint Link. FREERIDE
-
110505073292 Double Ball Joint Link. FREERIDEDouble Ball Joint Link. FREERIDE
-
111505073176 Stabilisator Lever. FREERIDEStabilisator Lever. FREERIDE
-
112516005534 Shock Adjustment Decal. FREERIDEShock Adjustment Decal. FREERIDE
-
115516004752 Shock Knob Adjustment Decal. FREERIDEShock Knob Adjustment Decal. FREERIDE
-
121503192496 WasherWasher
-
125505073124 RH Front Shock. FREERIDERH Front Shock. FREERIDE
-
125505073123 LH Front Shock. FREERIDELH Front Shock. FREERIDE
-
125a505070400 O-Ring. FREERIDEO-Ring. FREERIDE
-
125b505070399 Screw. FREERIDEScrew. FREERIDE
-
125c505070398 Air Valve. FREERIDEAir Valve. FREERIDE
-
125g415093804 O-Ring. FREERIDEO-Ring. FREERIDE
-
125h415093806 Piston Ring. FREERIDEPiston Ring. FREERIDE
-
125k415093807 O-Ring. FREERIDEO-Ring. FREERIDE
-
125m415130165 Base Valve. FREERIDEBase Valve. FREERIDE
