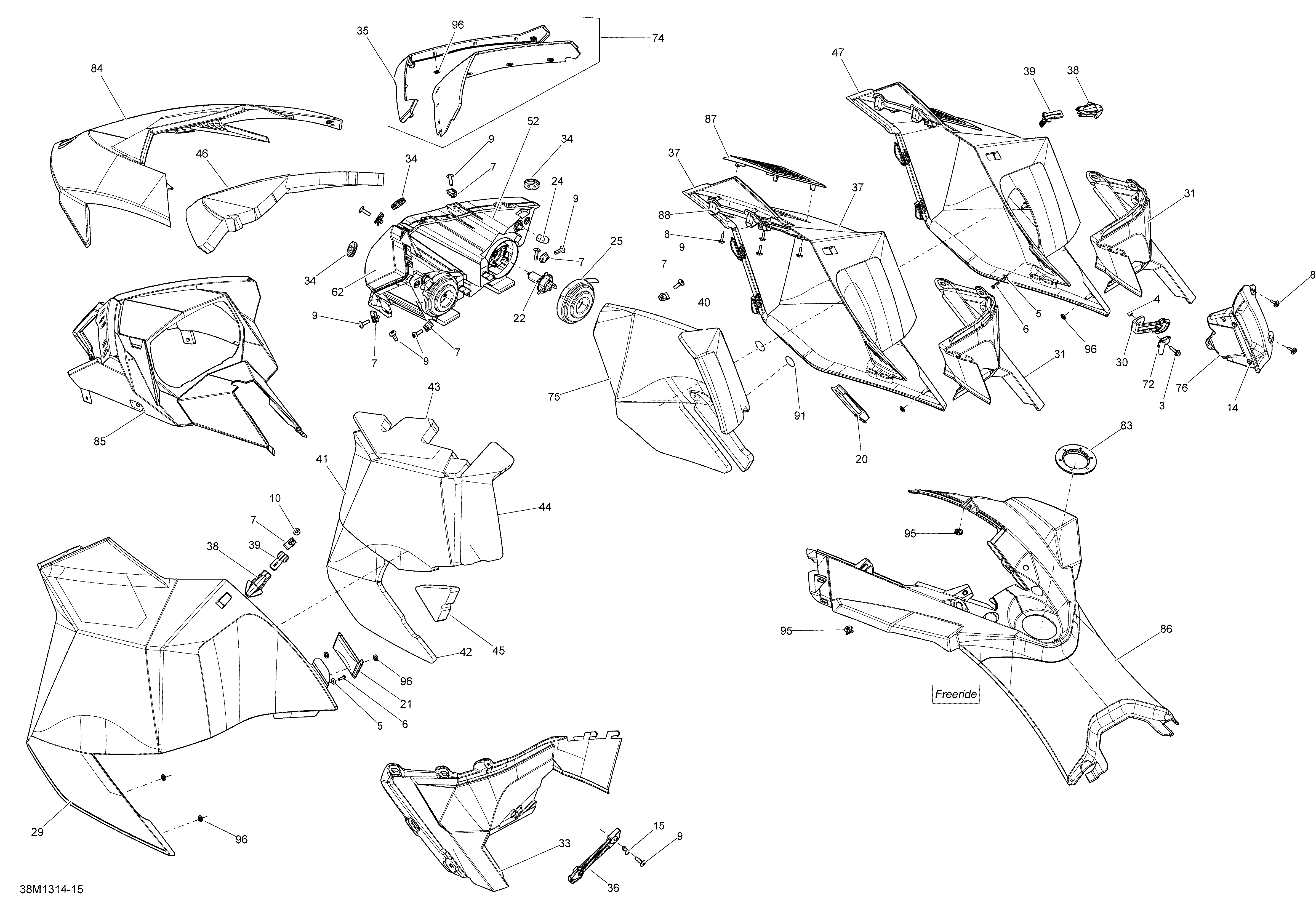

09- Hood, Windshield And Console для BRP Ski-Doo FREERIDE 137, 146, 154, 800RE XP - 2013
-
№АртикулНазвание
-
3250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
4233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
5234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
6241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
7250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
9250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14275500241 Cap, BlackCap, Black
-
15293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
20513033471 RH Panel ClipRH Panel Clip
-
21513033472 LH Panel ClipLH Panel Clip
-
22515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
24515176498 CapCap
-
25515176499 CoverCover
-
29517305219 LH PanelLH Panel
-
30517303612 RH Panel LatchRH Panel Latch
-
31517303671 RH Moulding PanelRH Moulding Panel
-
33517303673 LH Moulding PanelLH Moulding Panel
-
34517303756 GrommetGrommet
-
35517303757 Windshield SupportWindshield Support
-
36517303808 LH Panel LatchLH Panel Latch
-
37517305217 RH PanelRH Panel
-
38860200239 Black Latch KitBlack Latch Kit
-
39517303981 Panel LatchPanel Latch
-
40517304884 RH Panel Rear FoamRH Panel Rear Foam
-
41517304887 LH Panel Center FoamLH Panel Center Foam
-
42517304888 LH Panel Lower FoamLH Panel Lower Foam
-
43517304889 LH Panel Upper FoamLH Panel Upper Foam
-
44517304890 LH Panel Rear FoamLH Panel Rear Foam
-
45517304891 FoamFoam
-
46517304913 Hood FoamHood Foam
-
47517305216 RH PanelRH Panel
-
52517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
62517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
72517304221 Latch SupportLatch Support
-
74517304226 Low Windshield Ass'y (140)Low Windshield Ass'y (140)
-
75517304883 RH Center FoamRH Center Foam
-
76517304322 RH ConsoleRH Console
-
83517304518 Console NutConsole Nut
-
84517305210 HoodHood
-
85517304581 Gauge SupportGauge Support
-
86517305211 ConsoleConsole
-
87517304763 External GrillExternal Grill
-
88517304764 Internal GrillInternal Grill
-
91518325560 Adhesive PatchAdhesive Patch
-
95732610057 Jack Nut M6Jack Nut M6
-
96732610072 Push NutPush Nut
