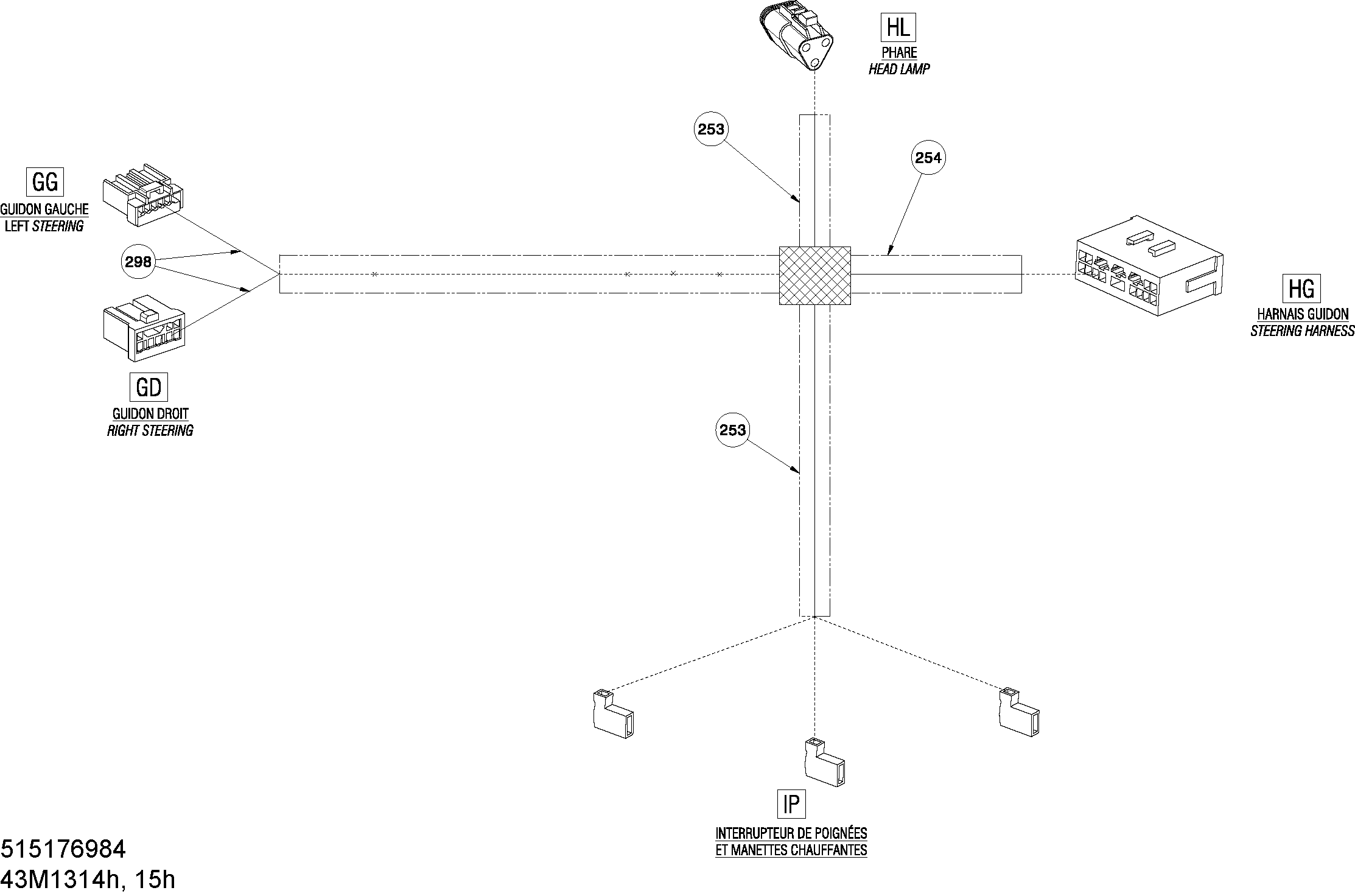

10- Electrical Harness Steerring для BRP Ski-Doo FREERIDE 137, 146, 154, 800RE XP - 2013
-
№АртикулНазвание
-
3200515176984 Steering Wiring Harness Ass'y. FREERIDESteering Wiring Harness Ass'y. FREERIDE
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
GD515175231 Female TerminalFemale Terminal
-
GD515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
GG515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
GG515175231 Female TerminalFemale Terminal
-
HG515175232 Male TerminalMale Terminal
-
HG515175273 Male TerminalMale Terminal
-
HG515175351 Male Terminal Housing, 15 CircuitsMale Terminal Housing, 15 Circuits
-
HL278000632 Female TerminalFemale Terminal
-
HL409207400 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
HL409207200 Female LockFemale Lock
