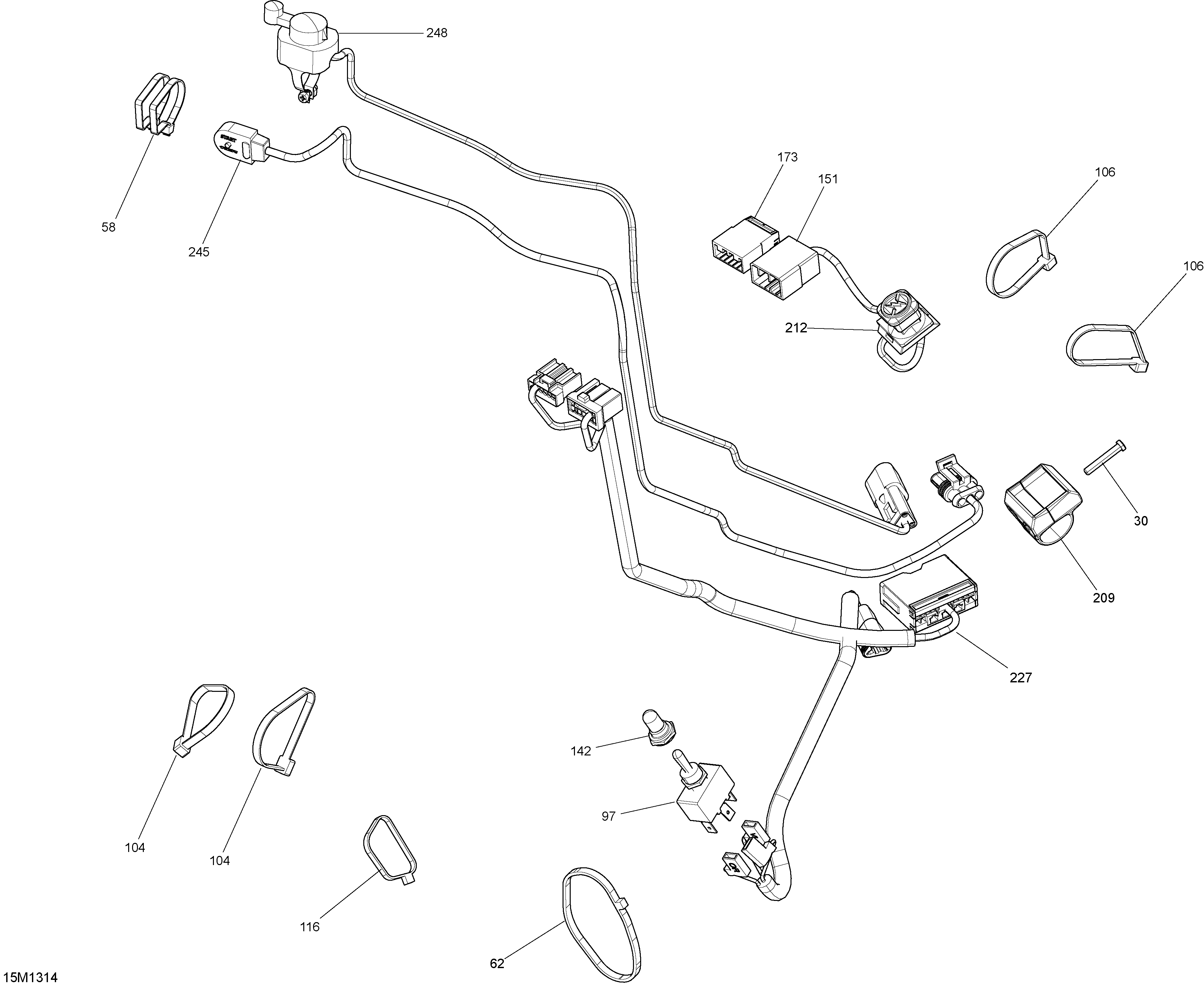

10- Steering Wiring Harness для BRP Ski-Doo FREERIDE 137, 146, 154, 800RE XP - 2013
-
№АртикулНазвание
-
30250000263 Torx Screw #8-18Torx Screw #8-18
-
58293750002 Tie-Rap 142 mm. FREERIDETie-Rap 142 mm. FREERIDE
-
62293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
97410107300 Switch (Heating Grip). FREERIDESwitch (Heating Grip). FREERIDE
-
104414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
106414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
116414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
142515175281 Switch Cover. FREERIDESwitch Cover. FREERIDE
-
151515175817 Male Terminal Housing, 8 Circuits. FREERIDEMale Terminal Housing, 8 Circuits. FREERIDE
-
173515175662 Male Terminal Housing, 6 Circuits. FREERIDEMale Terminal Housing, 6 Circuits. FREERIDE
-
209515176825 Kill Switch SupportKill Switch Support
-
212515177362 Kill SwitchKill Switch
-
227515176984 Steering Wiring Harness Ass'y. FREERIDESteering Wiring Harness Ass'y. FREERIDE
-
245515176987 Switch. FREERIDESwitch. FREERIDE
-
248515177433 Dimmer Switch. FREERIDEDimmer Switch. FREERIDE
