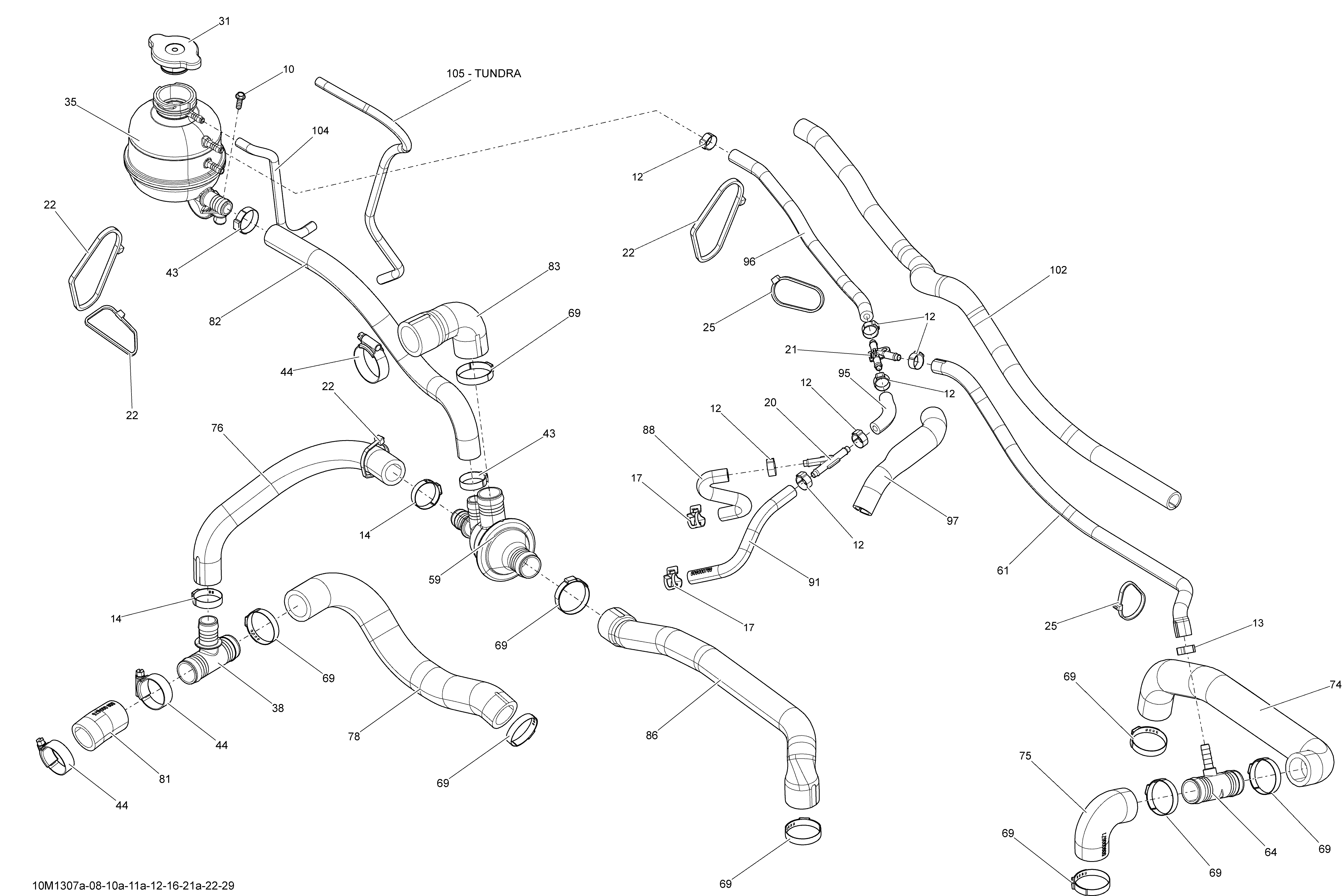

01- Cooling System для BRP Ski-Doo MXZ TNT 600HOE XP - 2013
-
№АртикулНазвание
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
12293650046 Oetiker Clamp. 600HO ETECOetiker Clamp. 600HO ETEC
-
13293650047 Crimp ClampCrimp Clamp
-
14293650099 Oetiker Gear Clamp. Except 600RSOetiker Gear Clamp. Except 600RS
-
17293650210 Spring Clamp. 600HO ETECSpring Clamp. 600HO ETEC
-
20293710059 Y-Fitting. 600HO ETECY-Fitting. 600HO ETEC
-
21293710140 Y-Fitting. 600HO ETECY-Fitting. 600HO ETEC
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31509000180 Pressure CapPressure Cap
-
35509000368 Coolant Tank. Except 600RSCoolant Tank. Except 600RS
-
38509000372 T-FittingT-Fitting
-
43509000442 Oetiker Gear Clamp. Except 600RSOetiker Gear Clamp. Except 600RS
-
44509000443 Aba Gear ClampAba Gear Clamp
-
59509000499 Thermostat Housing. Except 600RSThermostat Housing. Except 600RS
-
61509000502 Bleeder Hose. 600HO ETECBleeder Hose. 600HO ETEC
-
64509000510 T-FittingT-Fitting
-
69509000529 Oetiker Gear ClampOetiker Gear Clamp
-
74509000670 Radiator HoseRadiator Hose
-
75509000671 Radiator HoseRadiator Hose
-
76509000672 Bypass Hose. Except 600RSBypass Hose. Except 600RS
-
78509000673 Radiator HoseRadiator Hose
-
81509000675 Engine Inlet Hose. 600HO ETECEngine Inlet Hose. 600HO ETEC
-
82509000676 Filling Hose. 600HO ETECFilling Hose. 600HO ETEC
-
83509000678 Engine Outlet Hose. ETECEngine Outlet Hose. ETEC
-
86509000679 Thermostat Outlet Hose. Except 600RSThermostat Outlet Hose. Except 600RS
-
88509000768 Bleeder Hose. 600HO ETECBleeder Hose. 600HO ETEC
-
91509000769 Bleeder Hose. 600HO ETECBleeder Hose. 600HO ETEC
-
95415129508 Bleeder Hose. 600HO ETECBleeder Hose. 600HO ETEC
-
96415129508 Bleeder Hose. 600HO ETECBleeder Hose. 600HO ETEC
-
97513033231 Protector Tube, 16 mm. 600HO ETECProtector Tube, 16 mm. 600HO ETEC
-
102415080000 Tubing 16 mm. 600HO ETECTubing 16 mm. 600HO ETEC
-
104415110000 Polyurethane Hose 5.2 mm. 600HO ETEC Except TUNDRAPolyurethane Hose 5.2 mm. 600HO ETEC Except TUNDRA
