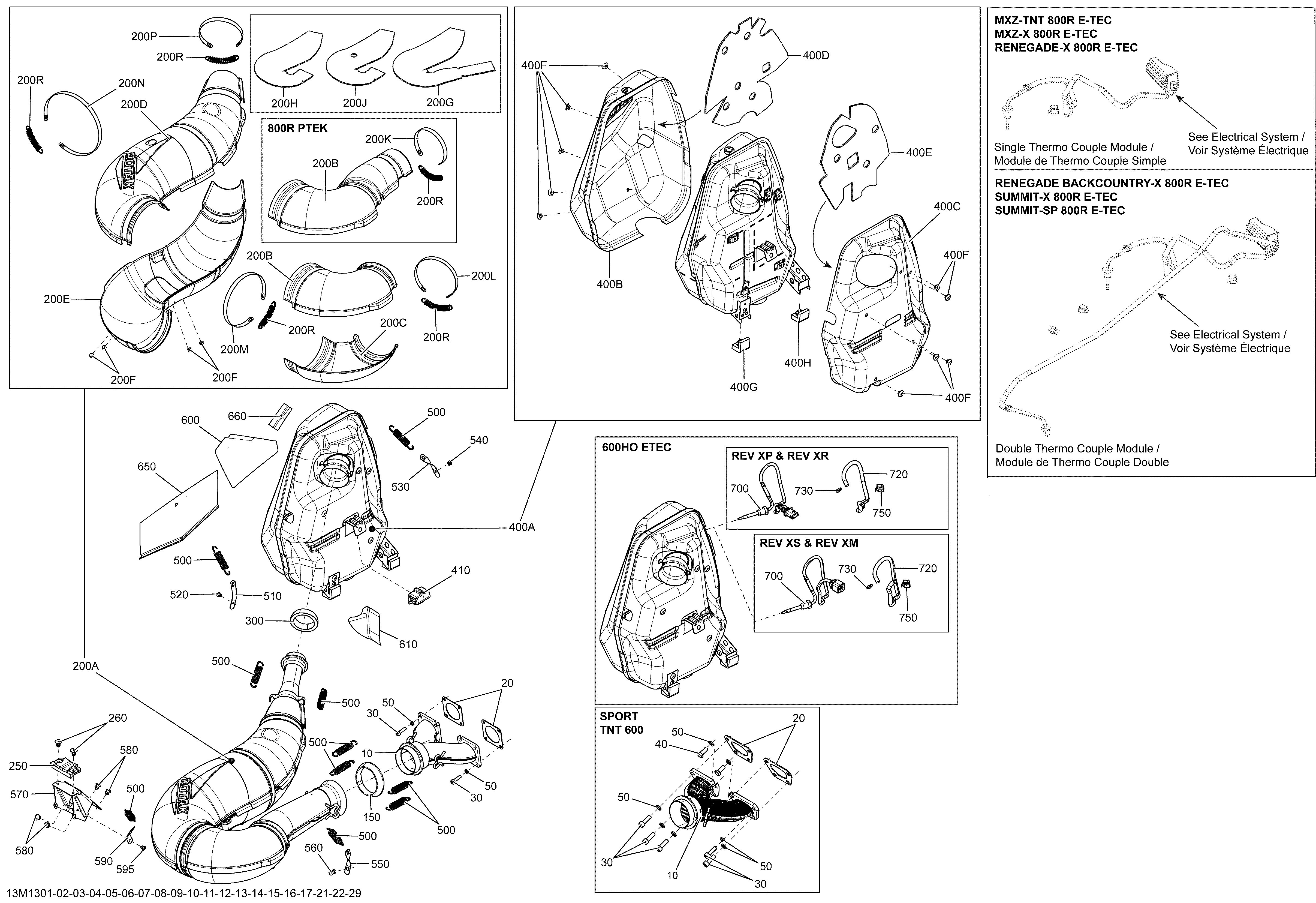

01- Exhaust System для BRP Ski-Doo MXZ TNT 600HOE XP - 2013
-
№АртикулНазвание
-
10420673420 Exhaust ManifoldExhaust Manifold
-
20420850552 GasketGasket
-
30514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
50514053953 WasherWasher
-
150514053487 Exhaust GasketExhaust Gasket
-
200a514054910 Exhaust Tuned Pipe Ass'y. Includes 200A to 200RExhaust Tuned Pipe Ass'y. Includes 200A to 200R
-
200b514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
200c514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
200d514054994 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
200e514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
200f293150091 Henrob RivetHenrob Rivet
-
200h514054487 Insulating WoolInsulating Wool
-
200L514054408 Retaining StrapRetaining Strap
-
200M514054409 Retaining StrapRetaining Strap
-
200N514054410 Retaining StrapRetaining Strap
-
200P514053499 Retaining StrapRetaining Strap
-
200R514053643 SpringSpring
-
250514054275 BumperBumper
-
260293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
300514054174 Exhaust GasketExhaust Gasket
-
400a514054970 Muffler Ass'y. Includes 400A to 400HMuffler Ass'y. Includes 400A to 400H
-
400b514054985 RH DeflectorRH Deflector
-
400c514054967 LH DeflectorLH Deflector
-
400d514054711 RH Insulating WoolRH Insulating Wool
-
400e514054299 LH Insulating WoolLH Insulating Wool
-
400f390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
400g514054274 Lower StopperLower Stopper
-
400h514054496 Lower StopperLower Stopper
-
410514054606 Upper StopperUpper Stopper
-
500415107100 SpringSpring
-
510514054974 Spring BracketSpring Bracket
-
520390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
530514054974 Spring BracketSpring Bracket
-
540390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
550514054975 Spring BracketSpring Bracket
-
560293150147 Hemlock RivetHemlock Rivet
-
600514054488 Reflective SheetReflective Sheet
-
610514054817 Heat ShieldHeat Shield
-
700514054856 Temperature SensorTemperature Sensor
-
720515175442 Tubing 6 mmTubing 6 mm
-
730293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
750414227300 ClipClip
