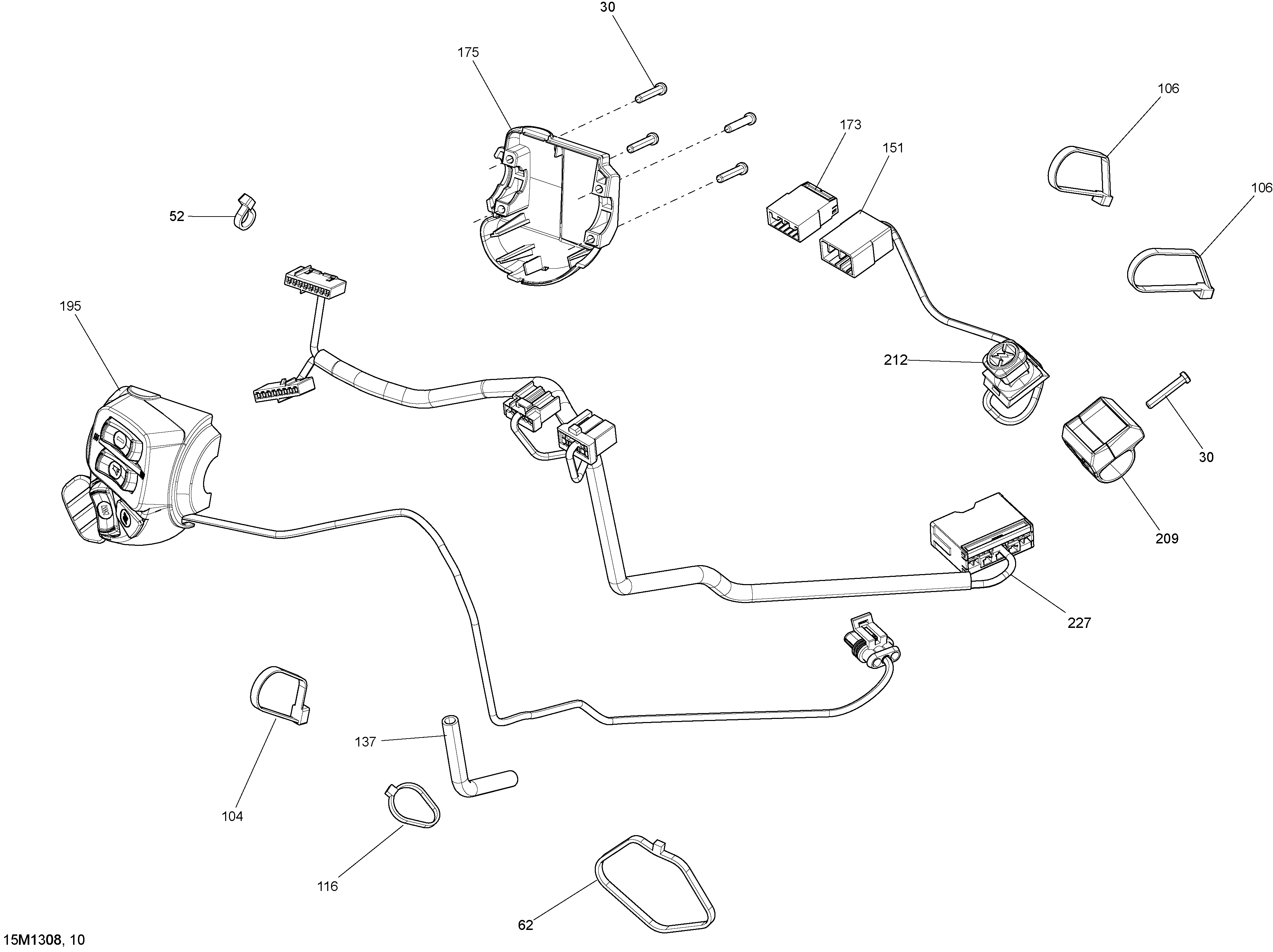

10- Steering Wiring Harness для BRP Ski-Doo MXZ TNT 600HOE XP - 2013
-
№АртикулНазвание
-
30250000263 Torx Screw #8-18. TNTTorx Screw #8-18. TNT
-
52293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
62293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
104414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
106414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
116414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
137515175442 Tubing 6 mmTubing 6 mm
-
151515175817 Male Terminal Housing, 8 Circuits. TNTMale Terminal Housing, 8 Circuits. TNT
-
173515175662 Male Terminal Housing, 6 Circuits. TNTMale Terminal Housing, 6 Circuits. TNT
-
175515175926 Housing Switch Plate. TNTHousing Switch Plate. TNT
-
195515177508 LH Housing Switch. TNTLH Housing Switch. TNT
-
209515176825 Kill Switch SupportKill Switch Support
-
212515177362 Kill SwitchKill Switch
-
227515176867 Steering Wiring Harness Ass'y. TNTSteering Wiring Harness Ass'y. TNT
