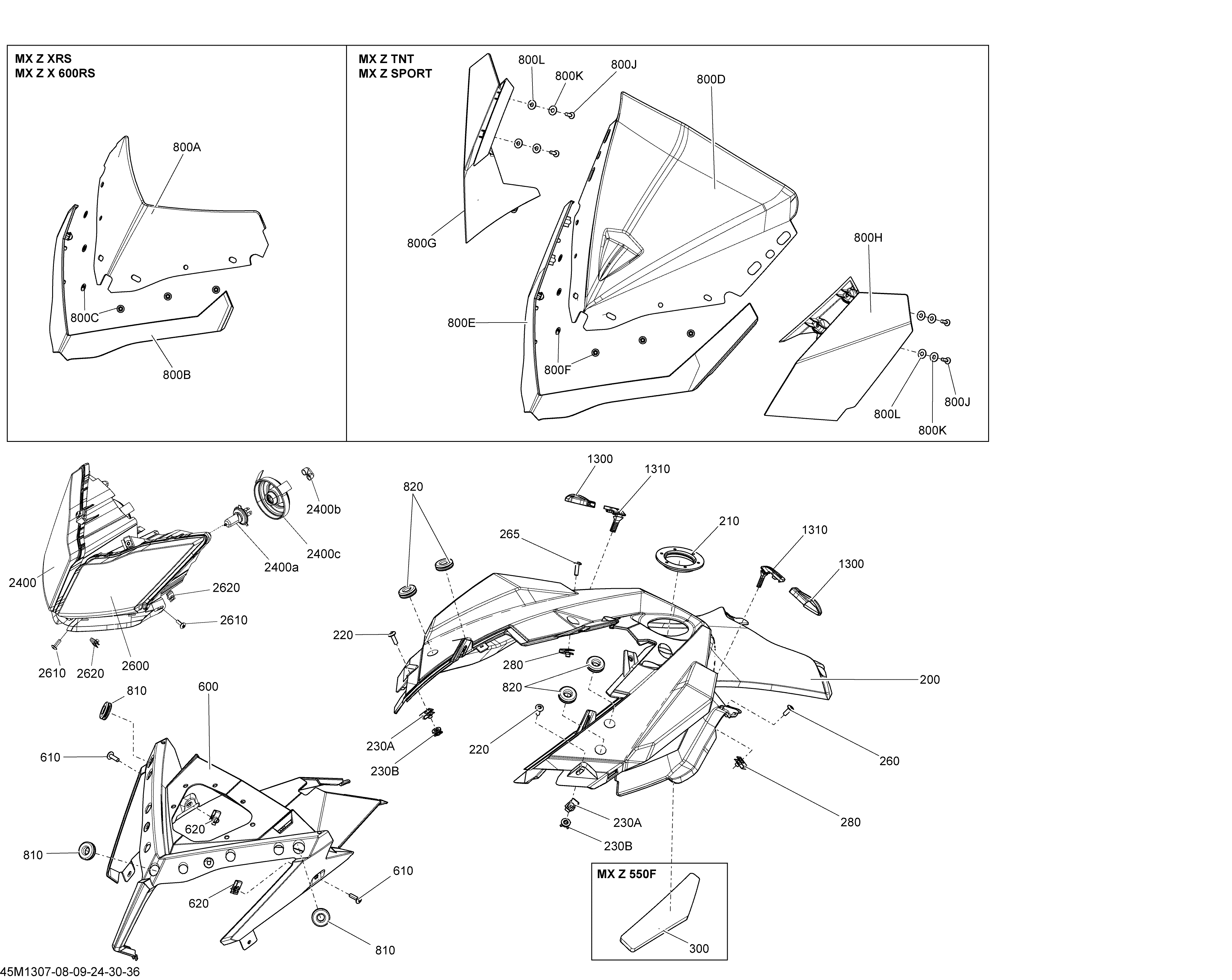

09- Windshield And Console для BRP Ski-Doo MXZ TNT 600HOE XP - 2013
-
№АртикулНазвание
-
200517303924 Deep Black ConsoleDeep Black Console
-
210517304518 Console NutConsole Nut
-
220250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
230a250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
260250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
265250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
600517305030 Gauge SupportGauge Support
-
610250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
620250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
800d860200478 Windsheld Kit 375. Includes 800D to 800LWindsheld Kit 375. Includes 800D to 800L
-
800d517304395 Windsheld 375mm. Windshield OnlyWindsheld 375mm. Windshield Only
-
800e517303607 Windshield SupportWindshield Support
-
800f732610072 Push NutPush Nut
-
800g517303604 RH Air DeflectorRH Air Deflector
-
800h517303605 LH Air DeflectorLH Air Deflector
-
800j250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
800k250200025 Washer M5Washer M5
-
800l250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
820517303756 GrommetGrommet
-
1300860200239 Black Latch Kit. Includes 1300A to 1300BBlack Latch Kit. Includes 1300A to 1300B
-
1310517303981 Panel LatchPanel Latch
-
2400517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
2400a515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400b515176498 CapCap
-
2400c515176499 CoverCover
-
2600517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
2610250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2620250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
