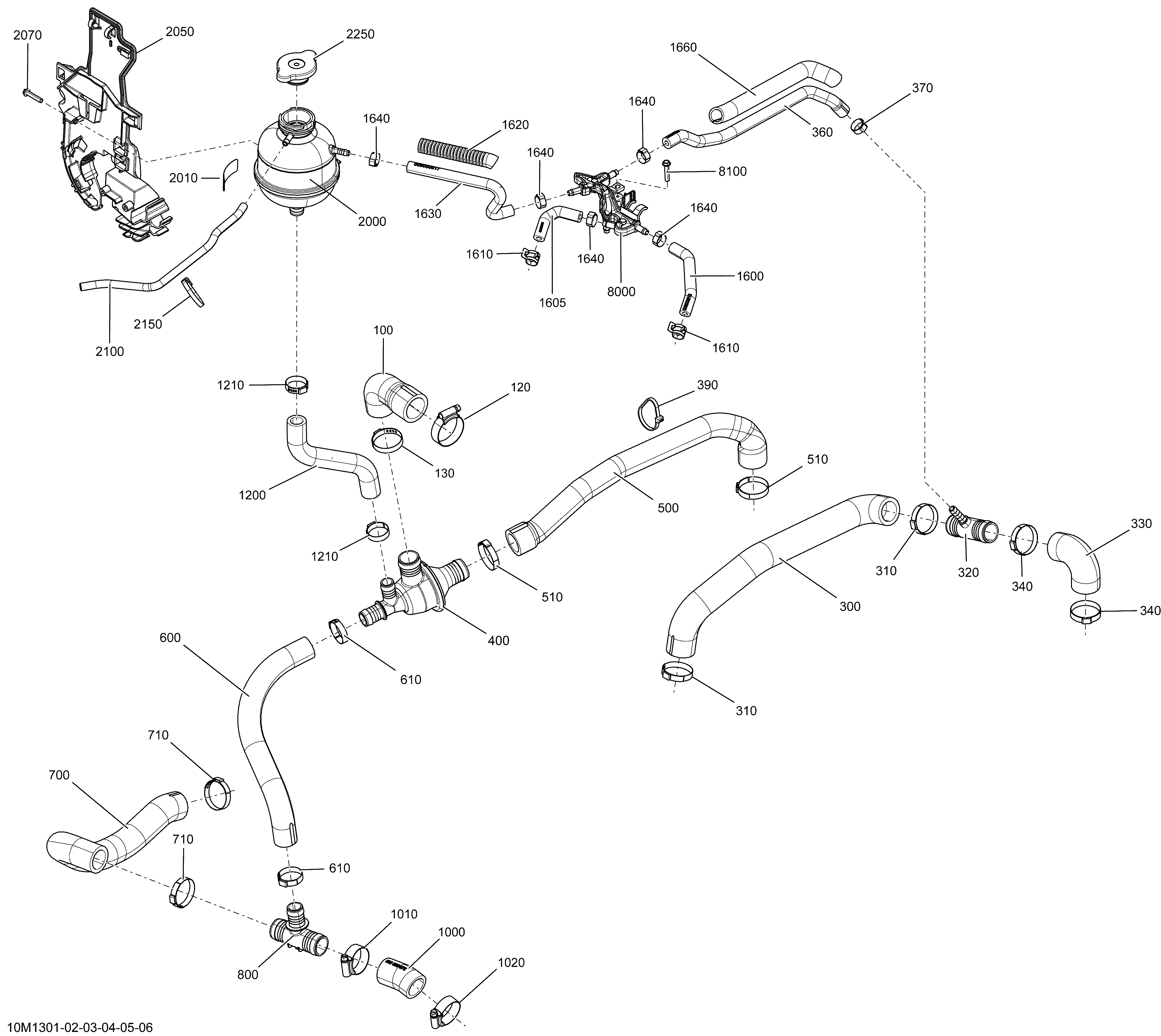

01- Cooling System для BRP Ski-Doo MXZ X 600HOE - 2013
-
№АртикулНазвание
-
100509000678 Engine Outlet HoseEngine Outlet Hose
-
120509000443 Aba Gear ClampAba Gear Clamp
-
130509000529 Oetiker Gear ClampOetiker Gear Clamp
-
300509000670 Radiator HoseRadiator Hose
-
310509000529 Oetiker Gear ClampOetiker Gear Clamp
-
320509000510 T-FittingT-Fitting
-
330509000671 Radiator HoseRadiator Hose
-
340509000529 Oetiker Gear ClampOetiker Gear Clamp
-
360509000815 Breather HoseBreather Hose
-
370293650047 Crimp ClampCrimp Clamp
-
390414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
400509000499 Thermostat HousingThermostat Housing
-
500509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
510509000529 Oetiker Gear ClampOetiker Gear Clamp
-
600509000672 Bypass HoseBypass Hose
-
610293650099 Oetiker Gear ClampOetiker Gear Clamp
-
700509000673 Radiator HoseRadiator Hose
-
710509000529 Oetiker Gear ClampOetiker Gear Clamp
-
800509000372 T-FittingT-Fitting
-
1000509000674 Engine Inlet Hose. 800R E-TECEngine Inlet Hose. 800R E-TEC
-
1000509000675 Engine Inlet Hose. 600HO E-TECEngine Inlet Hose. 600HO E-TEC
-
1010509000443 Aba Gear ClampAba Gear Clamp
-
1020509000443 Aba Gear ClampAba Gear Clamp
-
1200509000812 Filling HoseFilling Hose
-
1210509000442 Oetiker Gear ClampOetiker Gear Clamp
-
1600509000818 Bleeder HoseBleeder Hose
-
1605509000819 Bleeder HoseBleeder Hose
-
1610293650210 Spring ClampSpring Clamp
-
1620409901800 Tubing 13 mmTubing 13 mm
-
1630509000817 HoseHose
-
1640293650046 Oetiker ClampOetiker Clamp
-
1660415080000 Tubing 16 mmTubing 16 mm
-
2000509000802 Coolant TankCoolant Tank
-
2010516005904 Warning DecalWarning Decal
-
2050509000813 Tank SupportTank Support
-
2070241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
2100276000048 Hose 6 mmHose 6 mm
-
2150414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2250509000180 Pressure CapPressure Cap
-
8000509000803 Bleed CollectorBleed Collector
-
8100241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
