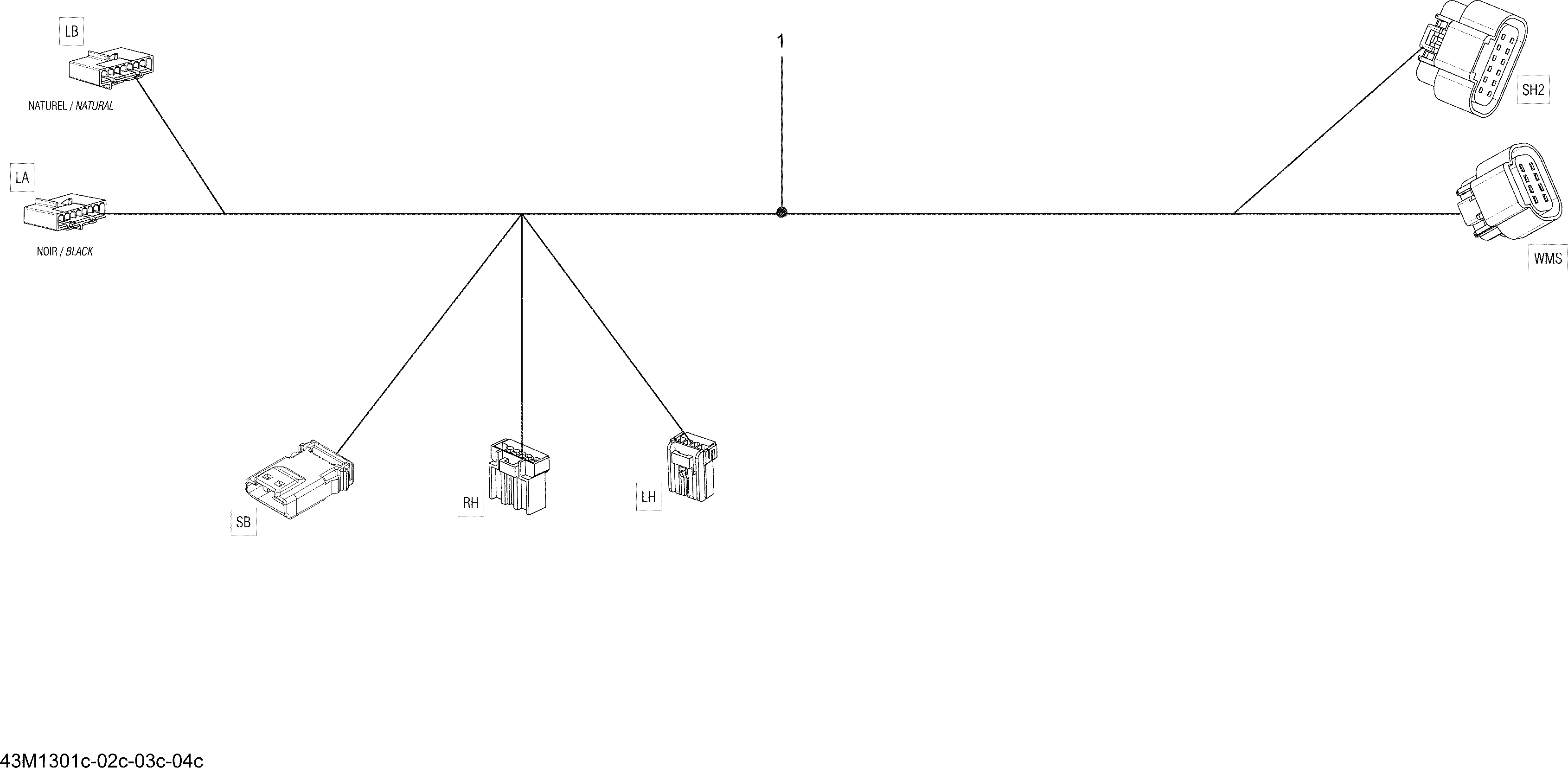

10- Electrical Harness , Steering для BRP Ski-Doo MXZ X 600HOE - 2013
-
№АртикулНазвание
-
1515177416 Steering Wiring Harness. Includes 1 to WMSSteering Wiring Harness. Includes 1 to WMS
-
LA515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
LA515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LA515175808 Female TerminalFemale Terminal
-
LA515175941 Female TerminalFemale Terminal
-
LB515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
LB515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LB515175808 Female TerminalFemale Terminal
-
LB515175941 Female TerminalFemale Terminal
-
LH515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
LH515175231 Female TerminalFemale Terminal
-
RH515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
RH515175231 Female TerminalFemale Terminal
-
SB515177442 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
SB515177445 PlugPlug
-
SB515177444 Male TerminalMale Terminal
-
SH2710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
SH2710001225 CapCap
-
SH2710001332 Seal WireSeal Wire
-
SH2710001233 SealSeal
-
SH2710001229 TerminalTerminal
-
SH2710001228 TerminalTerminal
-
WMS710001928 HousingHousing
-
WMS710001225 CapCap
-
WMS710001233 SealSeal
-
WMS710001229 TerminalTerminal
