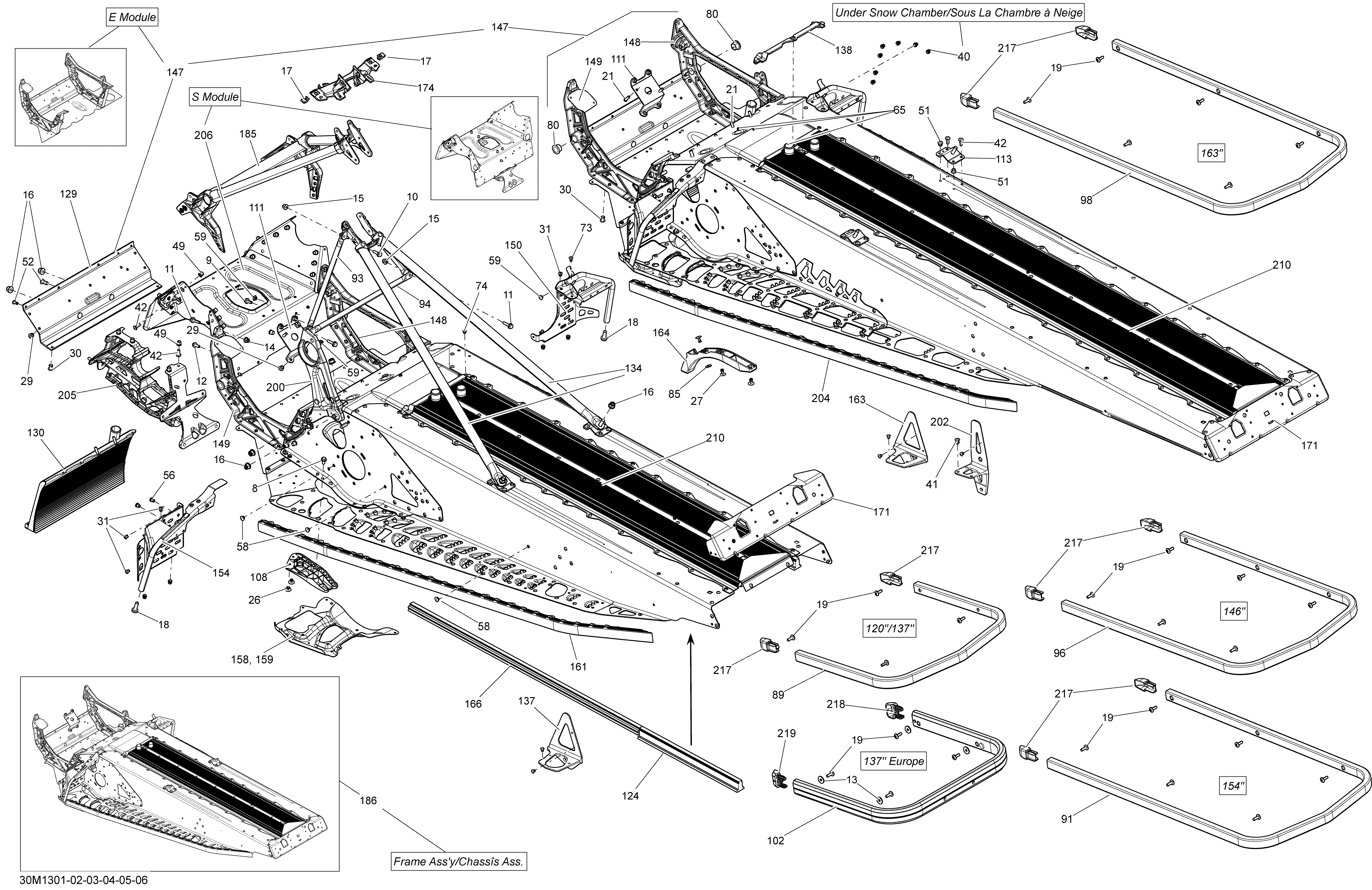

09- Frame для BRP Ski-Doo MXZ X 600HOE - 2013
-
№АртикулНазвание
-
8207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
9207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
12210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13224061201 Flat WasherFlat Washer
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
19250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
21250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
26293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
31293150144 Stavex RivetStavex Rivet
-
40293150146 Henrob RivetHenrob Rivet
-
41293150147 Hemlock RivetHemlock Rivet
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
52293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
56293450268 InsertInsert
-
58293730047 Dart 8 mm, BlackDart 8 mm, Black
-
59293730042 Dart. MXZDart. MXZ
-
59293730053 DartDart
-
73390909100 Avex RivetAvex Rivet
-
74390909200 Avex RivetAvex Rivet
-
80505073317 Leg CushionLeg Cushion
-
85517124300 WasherWasher
-
89518325481 Rear BumperRear Bumper
-
93518325114 Upper Column SupportUpper Column Support
-
94518325115 Center Column SupportCenter Column Support
-
108518325782 RH DeflectorRH Deflector
-
108518325783 LH DeflectorLH Deflector
-
111518325943 MAG Engine SupportMAG Engine Support
-
113518325973 RH Rear BaseRH Rear Base
-
113518325974 LH Rear BaseLH Rear Base
-
124860200267 Tunnel Protector KitTunnel Protector Kit
-
129518326198 Front MemberFront Member
-
130518326485 Front RadiatorFront Radiator
-
134518326559 Rear MemberRear Member
-
137518326654 RH Slide Suspension BracketRH Slide Suspension Bracket
-
137518326655 LH Slide Suspension BracketLH Slide Suspension Bracket
-
138518326656 SealSeal
-
147518327567 Front E ModuleFront E Module
-
148518326795 RH MemberRH Member
-
149518326796 LH MemberLH Member
-
150518326812 RH Stirup Ass'yRH Stirup Ass'y
-
154518326931 LH Stirup Ass'yLH Stirup Ass'y
-
158518326937 RH ReinforcementRH Reinforcement
-
159518326938 LH ReinforcementLH Reinforcement
-
161518326942 RH RollerRH Roller
-
161518326943 LH RollerLH Roller
-
164518326973 Front Protector. 120'', 137'' ModelFront Protector. 120'', 137'' Model
-
166860200267 Tunnel Protector Kit. 120'', 137'' ModelTunnel Protector Kit. 120'', 137'' Model
-
171518327105 Rear CapRear Cap
-
174518327145 Sub A SupportSub A Support
-
185518327565 Front MemberFront Member
-
186415129727 Frame Ass'y, 120'' XS BlackFrame Ass'y, 120'' XS Black
-
200518327133 Driven Pulley SupportDriven Pulley Support
-
205518327475 Front Suspension SupportFront Suspension Support
-
206518327495 Cross Member S ModuleCross Member S Module
-
210518327580 Rear Radiator 120''Rear Radiator 120''
-
217520000840 CapCap
