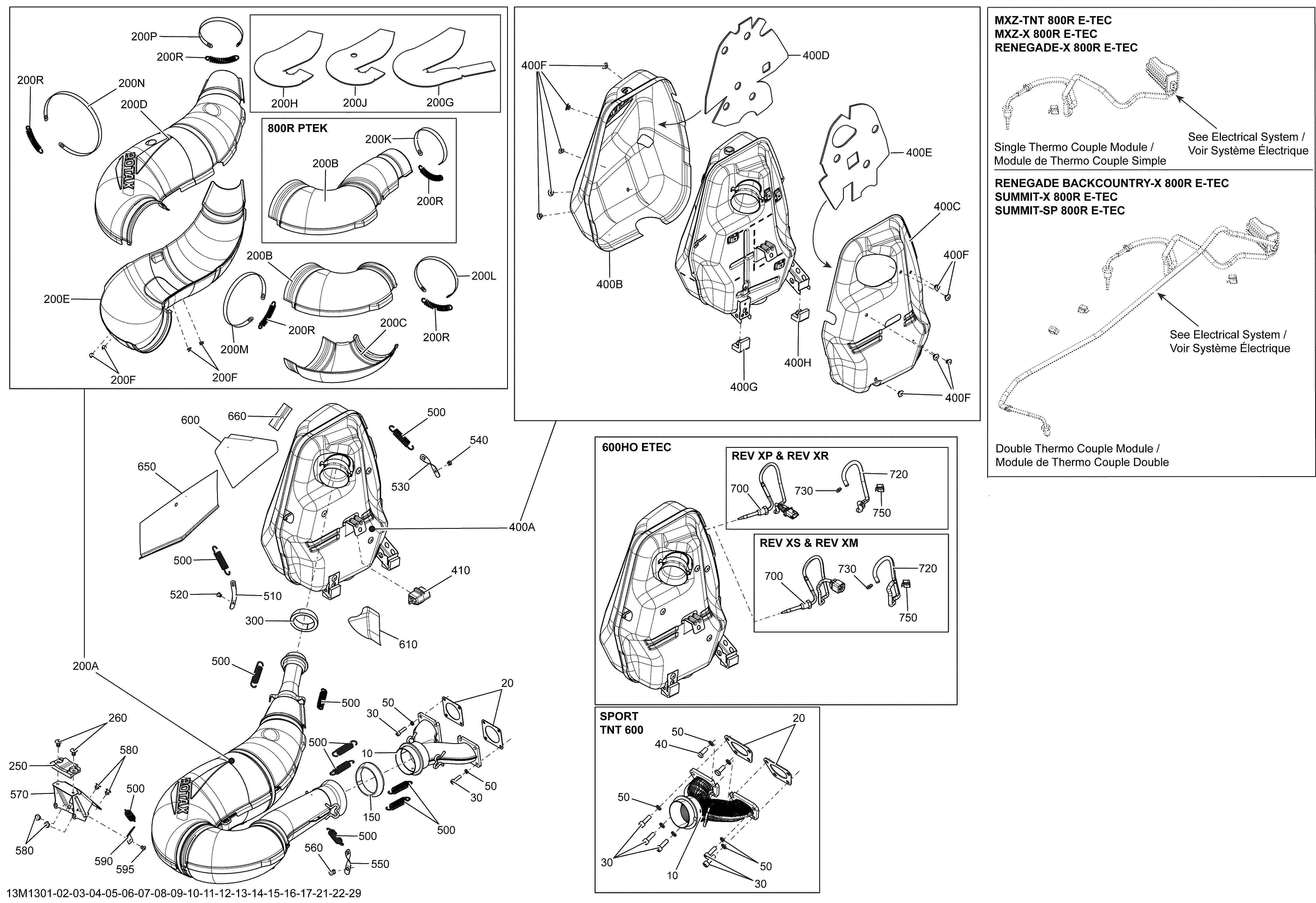

01- Exhaust System для BRP Ski-Doo MXZ X 600HOE - 2013
-
№АртикулНазвание
-
10420673373 Exhaust Manifold. 800R E-TECExhaust Manifold. 800R E-TEC
-
10420673420 Exhaust Manifold. 600HO E-TECExhaust Manifold. 600HO E-TEC
-
20420430482 Gasket. 800R E-TECGasket. 800R E-TEC
-
20420850552 Gasket. 600HO E-TECGasket. 600HO E-TEC
-
30250000414 Socket Head Screw M8 X 22. 800R E-TECSocket Head Screw M8 X 22. 800R E-TEC
-
700514054870 Temperature Sensor. 600HO E-TECTemperature Sensor. 600HO E-TEC
-
30514054626 Socket Screw M6 X 22, Scotch Grip. 600HO E-TECSocket Screw M6 X 22, Scotch Grip. 600HO E-TEC
-
50250200111 Washer. 800R E-TECWasher. 800R E-TEC
-
50514053953 Washer. 600HO E-TECWasher. 600HO E-TEC
-
150514053487 Exhaust GasketExhaust Gasket
-
200a514054906 Exhaust Tuned Pipe Ass'y. 800R E-TEC, Includes 200A to 200RExhaust Tuned Pipe Ass'y. 800R E-TEC, Includes 200A to 200R
-
200a514054910 Exhaust Tuned Pipe Ass'y. 600HO E-TEC, Includes 200A to 200RExhaust Tuned Pipe Ass'y. 600HO E-TEC, Includes 200A to 200R
-
200b514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
200c514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
200d514054994 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
200e514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
200f293150091 Henrob RivetHenrob Rivet
-
200h514054487 Insulating WoolInsulating Wool
-
200L514054408 Retaining StrapRetaining Strap
-
200M514054409 Retaining StrapRetaining Strap
-
200N514054410 Retaining StrapRetaining Strap
-
200P514053499 Retaining StrapRetaining Strap
-
200R514053643 SpringSpring
-
250514054275 BumperBumper
-
260293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
300514054174 Exhaust GasketExhaust Gasket
-
400a514054968 Muffler Ass'y. 800R E-TEC, Includes 400A to 400HMuffler Ass'y. 800R E-TEC, Includes 400A to 400H
-
400a514054970 Muffler Ass'y. 600HO E-TEC, Includes 400A to 400HMuffler Ass'y. 600HO E-TEC, Includes 400A to 400H
-
400b514054986 RH Deflector. 800R E-TECRH Deflector. 800R E-TEC
-
400b514054985 RH Deflector. 600HO E-TECRH Deflector. 600HO E-TEC
-
400c514054967 LH DeflectorLH Deflector
-
400d514054711 RH Insulating WoolRH Insulating Wool
-
400e514054299 LH Insulating WoolLH Insulating Wool
-
400f390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
400g514054274 Lower StopperLower Stopper
-
400h514054496 Lower StopperLower Stopper
-
410514054606 Upper StopperUpper Stopper
-
500415107100 SpringSpring
-
510514054974 Spring BracketSpring Bracket
-
520390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
530514054974 Spring BracketSpring Bracket
-
540390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
550514054975 Spring BracketSpring Bracket
-
560293150147 Hemlock RivetHemlock Rivet
-
660514054987 Heat ShieldHeat Shield
-
700514054870 Temperature Sensor. 600HO E-TECTemperature Sensor. 600HO E-TEC
-
720515175442 Tubing 6 mm. 600HO E-TECTubing 6 mm. 600HO E-TEC
-
730293750001 Tie-Rap 94 mm. 600HO E-TECTie-Rap 94 mm. 600HO E-TEC
-
750414227300 Clip. 600HO E-TECClip. 600HO E-TEC
