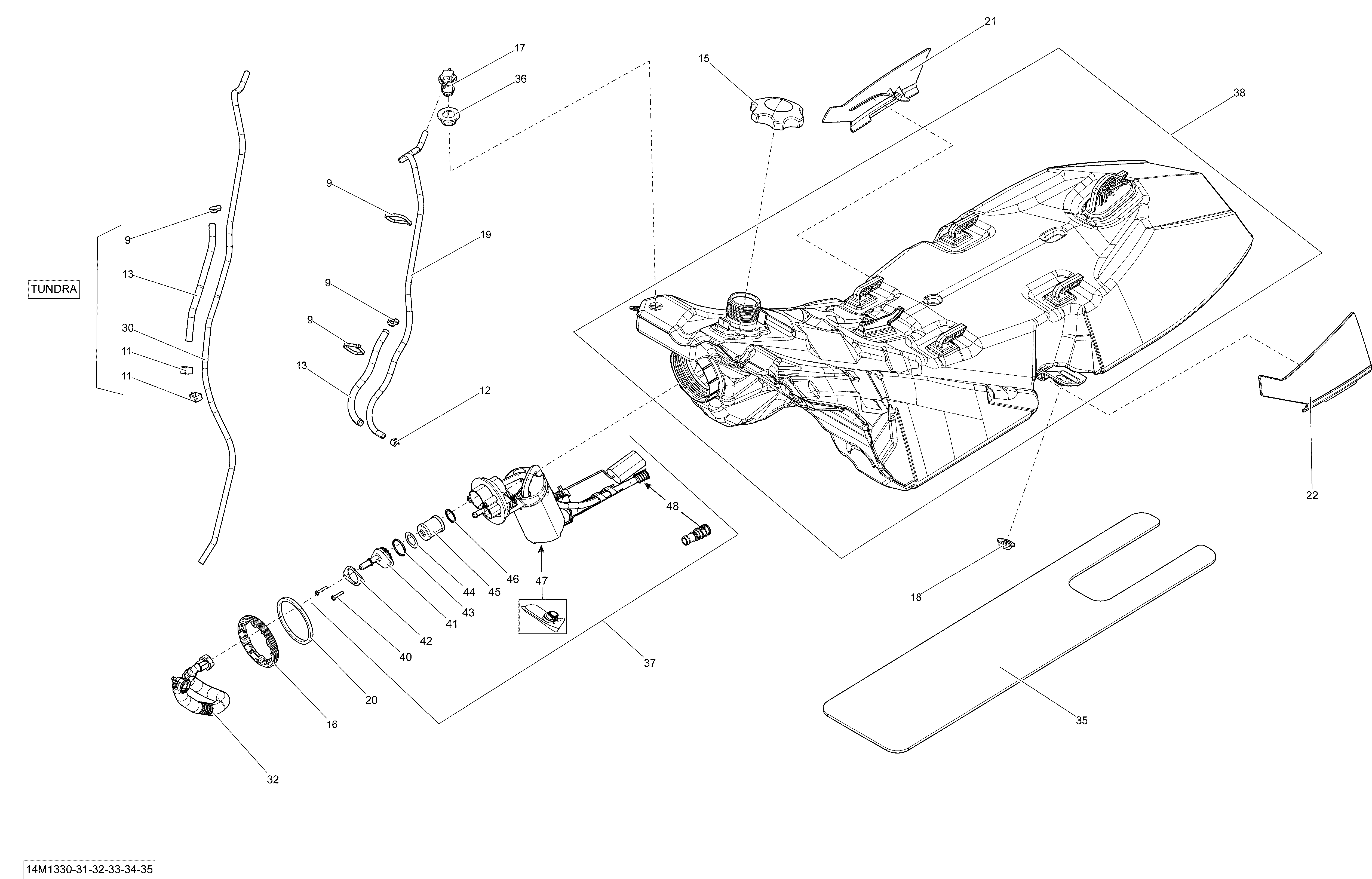

02- Fuel System для BRP Ski-Doo RENEGADE SPORT 600 ACE (4 TEMPS) XP - 2013
-
№АртикулНазвание
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12414554800 Spring Clamp. Except TundraSpring Clamp. Except Tundra
-
13504152900 Protector TubeProtector Tube
-
15513033720 Fuel Tank Cap. Octane 87Fuel Tank Cap. Octane 87
-
15513033721 Fuel Tank Cap. Octane 92Fuel Tank Cap. Octane 92
-
16513033180 RingRing
-
17513033188 Check ValveCheck Valve
-
18513033326 Shoulder BushingShoulder Bushing
-
19415080200 Hose, Polyurethane. Except TundraHose, Polyurethane. Except Tundra
-
20513033334 GasketGasket
-
21513033418 RH Cap. Except GTXRH Cap. Except GTX
-
22513033419 LH Cap. Except GTXLH Cap. Except GTX
-
32513033582 Hose Ass'yHose Ass'y
-
35513033588 Insulating FoamInsulating Foam
-
36513033596 GrommetGrommet
-
37513033654 Fuel Pump Ass'yFuel Pump Ass'y
-
38513033667 Fuel TankFuel Tank
-
40415129513 ScrewScrew
-
41415129685 CoverCover
-
42415129569 Fuel Pump RingFuel Pump Ring
-
43415129509 O-RingO-Ring
-
44415129512 Wave WasherWave Washer
-
45415129510 Fuel FilterFuel Filter
-
46415129511 O-RingO-Ring
-
47415129451 Fuel FilterFuel Filter
-
48414872100 Fuel FilterFuel Filter
