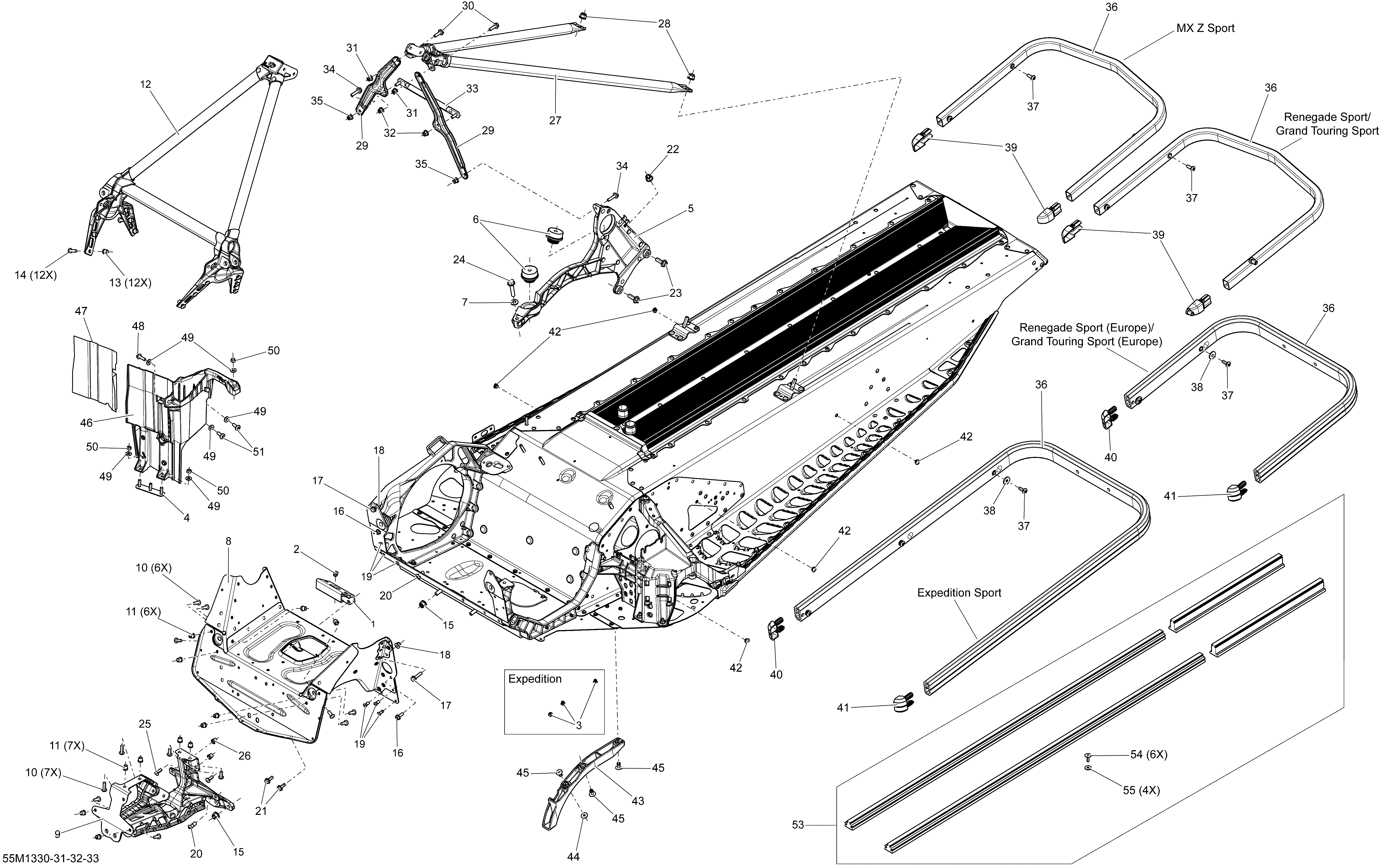

09- Frame And Components для BRP Ski-Doo RENEGADE SPORT 600 ACE (4 TEMPS) XP - 2013
-
№АртикулНазвание
-
1518326178 Engine SupportEngine Support
-
2293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
4518326550 Retaining PlateRetaining Plate
-
5518327535 Brace Ass'y. Includes 5 to 6Brace Ass'y. Includes 5 to 6
-
6512060295 Rubber MountRubber Mount
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8518327495 S-Module. Includes 8 to 11S-Module. Includes 8 to 11
-
9518327475 Front Suspension SupportFront Suspension Support
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12518326970 Front MemberFront Member
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
20293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
21207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
24207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27518326559 Rear MemberRear Member
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29518326848 Upper Column SupportUpper Column Support
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33518326355 Center Column SupportCenter Column Support
-
34207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36518324980 Rear Bumper. North AmericaRear Bumper. North America
-
36518325577 Rear Bumper. EuropeRear Bumper. Europe
-
37250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
38224061201 Flat Washer. EuropeFlat Washer. Europe
-
39520000567 Cap. North AmericaCap. North America
-
40520000711 RH Cap. EuropeRH Cap. Europe
-
41520000712 LH Cap. EuropeLH Cap. Europe
-
42293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
43518326973 Front Protector. Includes 43 to 44Front Protector. Includes 43 to 44
-
44517124300 WasherWasher
-
45293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
46518326472 Battery SupportBattery Support
-
47514054755 Heat ShieldHeat Shield
-
48210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
49250200039 Flat WasherFlat Washer
-
50232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
51250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
