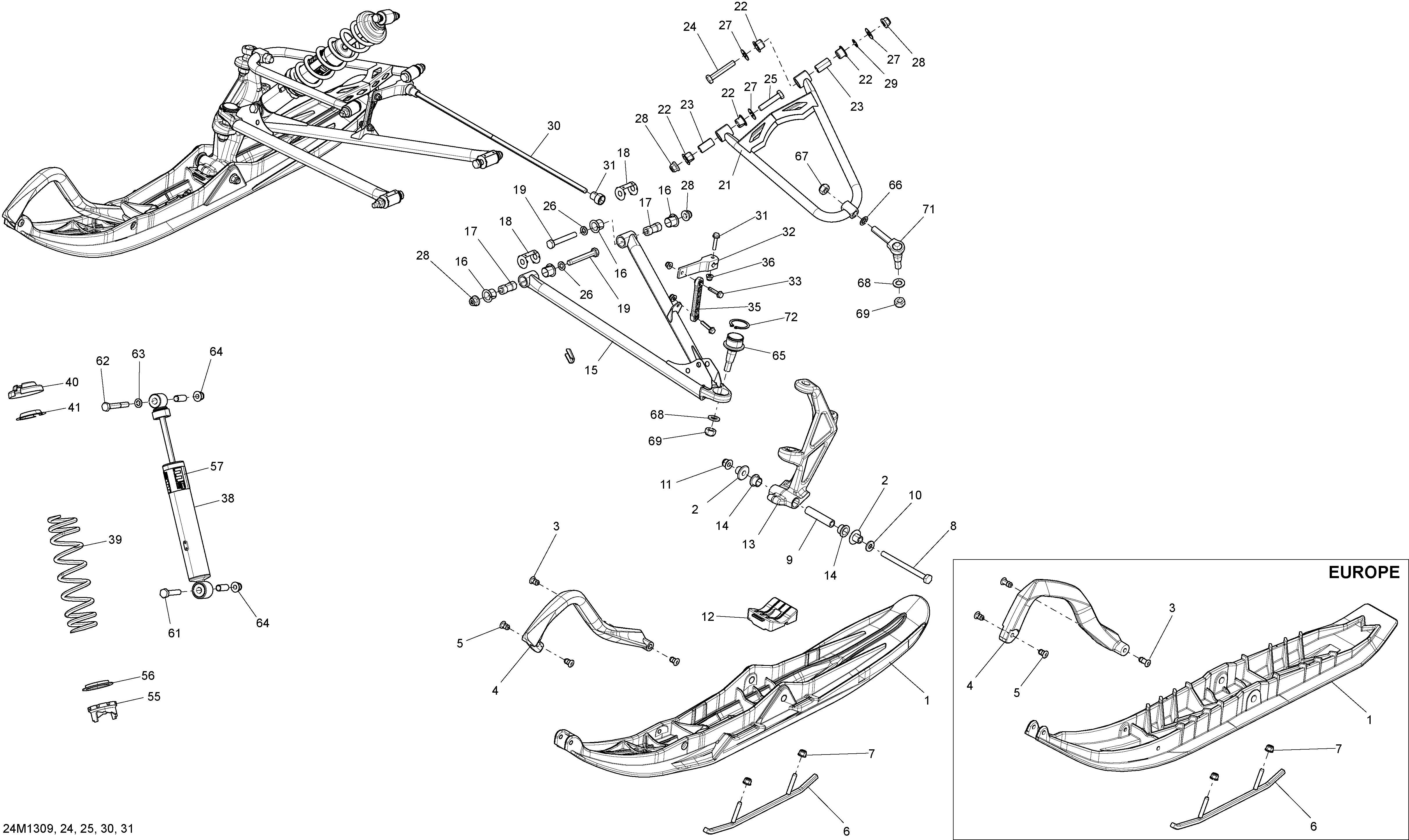

07- Front Suspension And Ski для BRP Ski-Doo RENEGADE SPORT 600 ACE (4 TEMPS) XP - 2013
-
№АртикулНазвание
-
1505072943 RH Pilot Ski, Black. North AmericaRH Pilot Ski, Black. North America
-
1505072942 LH Pilot Ski, Black. North AmericaLH Pilot Ski, Black. North America
-
1415129567 DS Ski, Black. EuropeDS Ski, Black. Europe
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070917 Handle, Yellow. North AmericaHandle, Yellow. North America
-
4505073107 Handle, Yellow. EuropeHandle, Yellow. Europe
-
5505072133 RetainerRetainer
-
6860200141 Carbide Runner Kit. RENEGADECarbide Runner Kit. RENEGADE
-
7233281414 Hex. Flanged Elastic Nut M8. RENEGADEHex. Flanged Elastic Nut M8. RENEGADE
-
8230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
9506133300 SpacerSpacer
-
10503192496 WasherWasher
-
11233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073041 LH Modified Ski Leg. RENEGADE SPORTLH Modified Ski Leg. RENEGADE SPORT
-
13505073042 RH Modified Ski Leg. RENEGADE SPORTRH Modified Ski Leg. RENEGADE SPORT
-
14505072690 Leg CushionLeg Cushion
-
15505072495 RH Lower Arm. RENEGADE SPORTRH Lower Arm. RENEGADE SPORT
-
15505072496 LH Lower Arm. RENEGADE SPORTLH Lower Arm. RENEGADE SPORT
-
16505072208 BushingBushing
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70. Except XRScrew Hex. M10 X 70. Except XR
-
21505072374 Upper Arm. XP RENEGADEUpper Arm. XP RENEGADE
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072448 O-RingO-Ring
-
30505072602 Stabilisator. Except SUM, Except GTX 1000Stabilisator. Except SUM, Except GTX 1000
-
31505072064 Bushing. Except SUM, Except GTX 1000Bushing. Except SUM, Except GTX 1000
-
32505072394 Stabilisator Lever. Except SUM, Except GTX 1000Stabilisator Lever. Except SUM, Except GTX 1000
-
33207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
34233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
37233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38505072754 Front Shock. RENEGADE SPORT EuropeFront Shock. RENEGADE SPORT Europe
-
38505073180 Front Shock. RENEGADE SPORT North AmericaFront Shock. RENEGADE SPORT North America
-
39505072230 Spring. RENEGADE SPORT EuropeSpring. RENEGADE SPORT Europe
-
39505072791 Painted Spring. RENEGADE SPORT North AmericaPainted Spring. RENEGADE SPORT North America
-
40706200881 Spring Stopper. RENEGADE SPORT EuropeSpring Stopper. RENEGADE SPORT Europe
-
40706200881 Spring Stopper. RENEGADE SPORT North AmericaSpring Stopper. RENEGADE SPORT North America
-
41706200785 Cap. RENEGADE SPORT EuropeCap. RENEGADE SPORT Europe
-
55505070150 Adjustment Cam. RENEGADE SPORT North AmericaAdjustment Cam. RENEGADE SPORT North America
-
56503187500 Spring Guide. RENEGADE SPORT North AmericaSpring Guide. RENEGADE SPORT North America
-
57516005535 Shock Decal, Mc. RENEGADE SPORT North AmericaShock Decal, Mc. RENEGADE SPORT North America
-
61207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
62207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
63503189564 WasherWasher
-
64233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
65505072682 Lower Ball JointLower Ball Joint
-
66503189276 Washer. XPWasher. XP
-
67250100089 Hex. Elastic Hex. Nut M12. XPHex. Elastic Hex. Nut M12. XP
-
68503192491 WasherWasher
-
69232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
71505072257 Upper Ball Joint. XPUpper Ball Joint. XP
-
72293370035 CirclipCirclip
