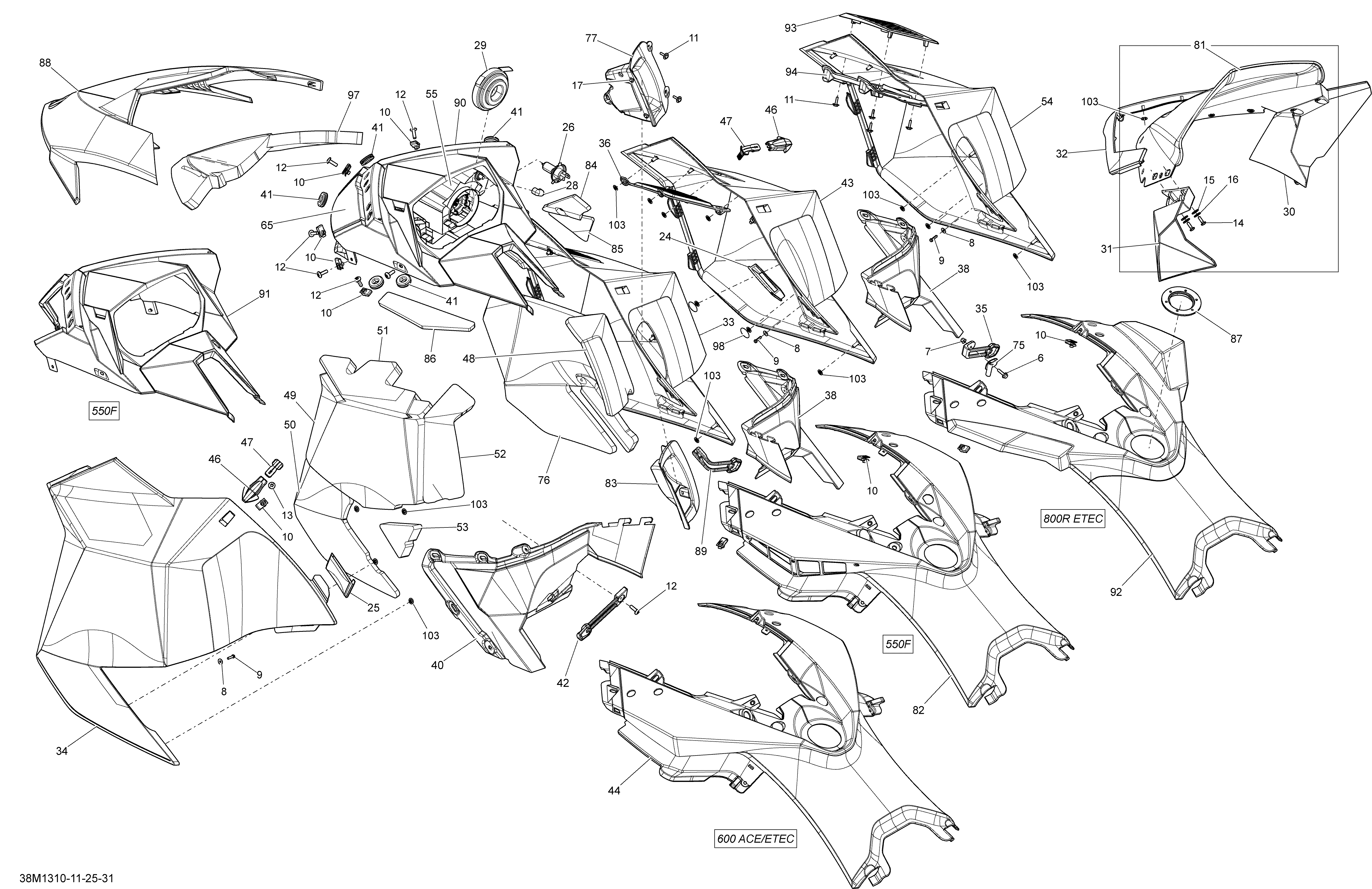

09- Hood, Windshield And Console для BRP Ski-Doo RENEGADE SPORT 600 ACE (4 TEMPS) XP - 2013
-
№АртикулНазвание
-
6250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
9241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
10250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10732610057 Jack Nut M6. 800R ETECJack Nut M6. 800R ETEC
-
11250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
16250200025 Washer M5Washer M5
-
17275500241 Black CapBlack Cap
-
24513033471 RH Panel ClipRH Panel Clip
-
25513033472 LH Panel ClipLH Panel Clip
-
26515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
28515176498 CapCap
-
29515176499 CoverCover
-
30517303604 RH Air DeflectorRH Air Deflector
-
31517303605 LH Air DeflectorLH Air Deflector
-
32517303607 Windshield SupportWindshield Support
-
34517304030 Deep Black LH PanelDeep Black LH Panel
-
35517303612 RH Panel LatchRH Panel Latch
-
36517303622 GrillGrill
-
38517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
40517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
41517303756 GrommetGrommet
-
42517303808 LH Panel LatchLH Panel Latch
-
43517304210 Deep Black RH PanelDeep Black RH Panel
-
44517303924 Deep Black ConsoleDeep Black Console
-
46860200239 Black Latch KitBlack Latch Kit
-
47517303981 Panel LatchPanel Latch
-
48517304884 RH Panel Rear FoamRH Panel Rear Foam
-
49517304887 LH Panel Center FoamLH Panel Center Foam
-
50517304888 LH Panel Lower FoamLH Panel Lower Foam
-
51517304889 LH Panel Upper FoamLH Panel Upper Foam
-
52517304890 LH Panel Rear FoamLH Panel Rear Foam
-
53517304891 FoamFoam
-
54517304029 Deep Black RH Panel. Manual StarterDeep Black RH Panel. Manual Starter
-
54517304210 Deep Black RH Panel. BC, ADR 800R ModelDeep Black RH Panel. BC, ADR 800R Model
-
55517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
65517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
75517304221 Latch SupportLatch Support
-
76517304883 RH Center FoamRH Center Foam
-
77517304322 Black RH ConsoleBlack RH Console
-
81860200478 Windsheld Kit 375Windsheld Kit 375
-
81517304395 Windsheld 375mmWindsheld 375mm
-
82517304954 Deep Black Console. 550F ModelDeep Black Console. 550F Model
-
83517304500 Black RH Console. 600 ACE ModelBlack RH Console. 600 ACE Model
-
84517304885 Foam. 550F ModelFoam. 550F Model
-
85517304886 Foam. 550F ModelFoam. 550F Model
-
86517304882 Foam. 550F ModelFoam. 550F Model
-
87517304518 Console NutConsole Nut
-
88517304530 Deep Black HoodDeep Black Hood
-
89517304551 Panel Latch. 600 ACE ModelPanel Latch. 600 ACE Model
-
90517305030 Gauge SupportGauge Support
-
91517305194 Gauge Support. 550F ModelGauge Support. 550F Model
-
92517304639 ConsoleConsole
-
93517304763 External GrillExternal Grill
-
94517304764 Internal GrillInternal Grill
-
97517304913 Hood FoamHood Foam
-
98518325560 Adhesive PatchAdhesive Patch
-
103732610072 Push NutPush Nut
