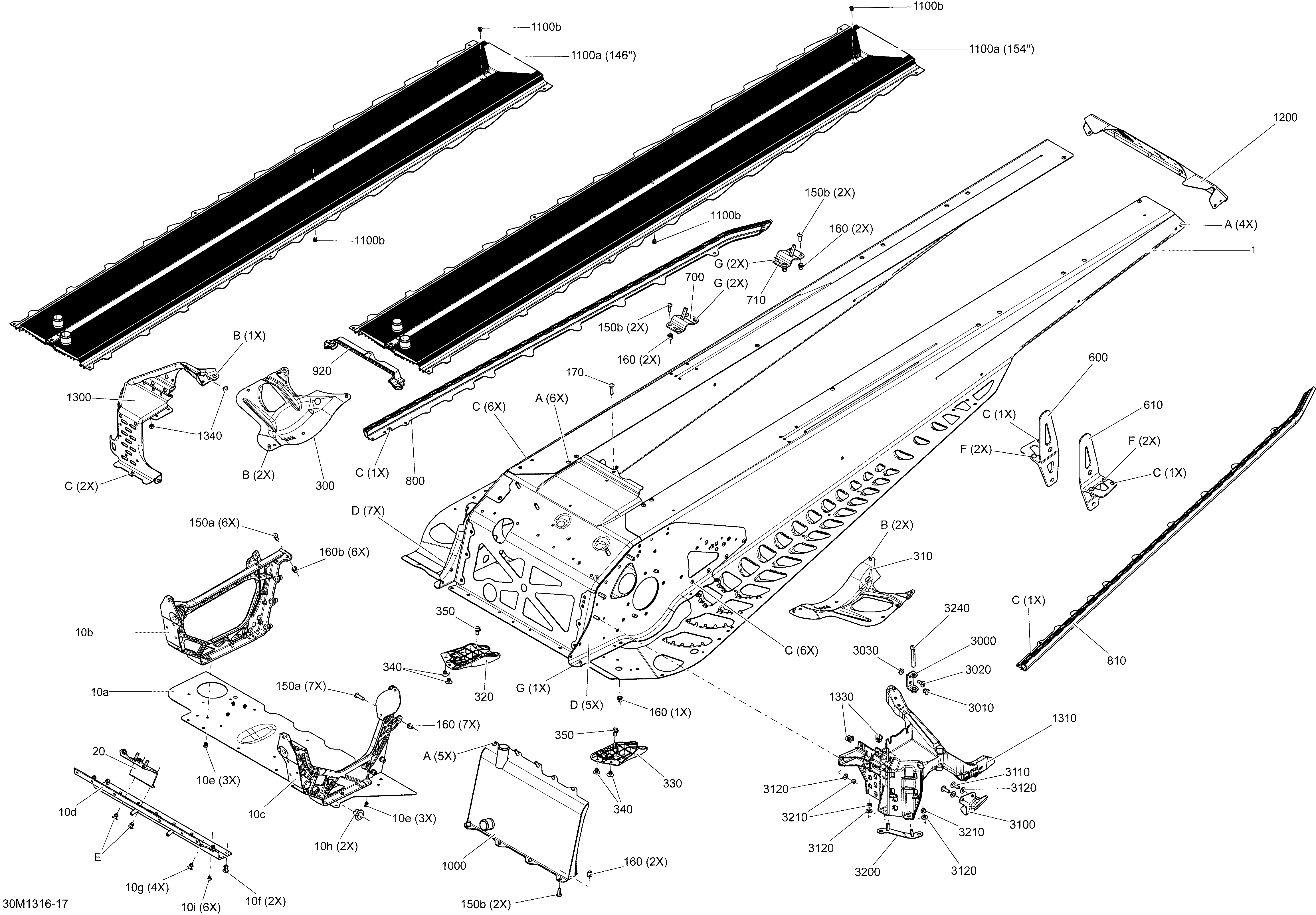

09- Frame 154 для BRP Ski-Doo SUMMIT SP 600HOE XP - 2013
-
№АртикулНазвание
-
1415129745 Frame Ass'y. Includes 1 to GFrame Ass'y. Includes 1 to G
-
10a518327567 Front E Module. Includes 10a to 10iFront E Module. Includes 10a to 10i
-
10b518326795 RH MemberRH Member
-
10c518326796 LH MemberLH Member
-
10d518326198 Front MemberFront Member
-
10e293150144 Stavex RivetStavex Rivet
-
10f293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10g293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10h505073317 Leg CushionLeg Cushion
-
20518325943 MAG Engine SupportMAG Engine Support
-
150a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
160233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
170207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
300518324874 RH ReinforcementRH Reinforcement
-
310518324875 LH ReinforcementLH Reinforcement
-
320518325782 RH DeflectorRH Deflector
-
330518325783 LH DeflectorLH Deflector
-
340293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
350207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
600518324976 RH Suspension BracketRH Suspension Bracket
-
610518324977 LH Suspension BracketLH Suspension Bracket
-
700518325973 RH Rear BaseRH Rear Base
-
710518325974 LH Rear BaseLH Rear Base
-
800518325159 RH RollerRH Roller
-
810518325160 LH RollerLH Roller
-
920518326656 SealSeal
-
1000518326485 Front RadiatorFront Radiator
-
1100a518326692 Rear Radiator Ass'y, 154''. Includes 1100a to 1100bRear Radiator Ass'y, 154''. Includes 1100a to 1100b
-
1100b293150144 Stavex RivetStavex Rivet
-
1200518327105 Rear CapRear Cap
-
1300518326216 RH StirupRH Stirup
-
1310518326820 LH StirupLH Stirup
-
1330250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1340293730042 DartDart
-
3000518326961 U-AttachU-Attach
-
3010293150147 Hemlock RivetHemlock Rivet
-
3020250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
3030233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
3100518326960 SupportSupport
-
3110250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
3120250200039 Flat WasherFlat Washer
-
3200518326986 AttachAttach
-
3210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3240250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
A390909200 Avex RivetAvex Rivet
-
B390909100 Avex RivetAvex Rivet
-
C293150144 Stavex RivetStavex Rivet
-
D293150146 Henrob RivetHenrob Rivet
-
E293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
F293150147 Hemlock RivetHemlock Rivet
-
G293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
