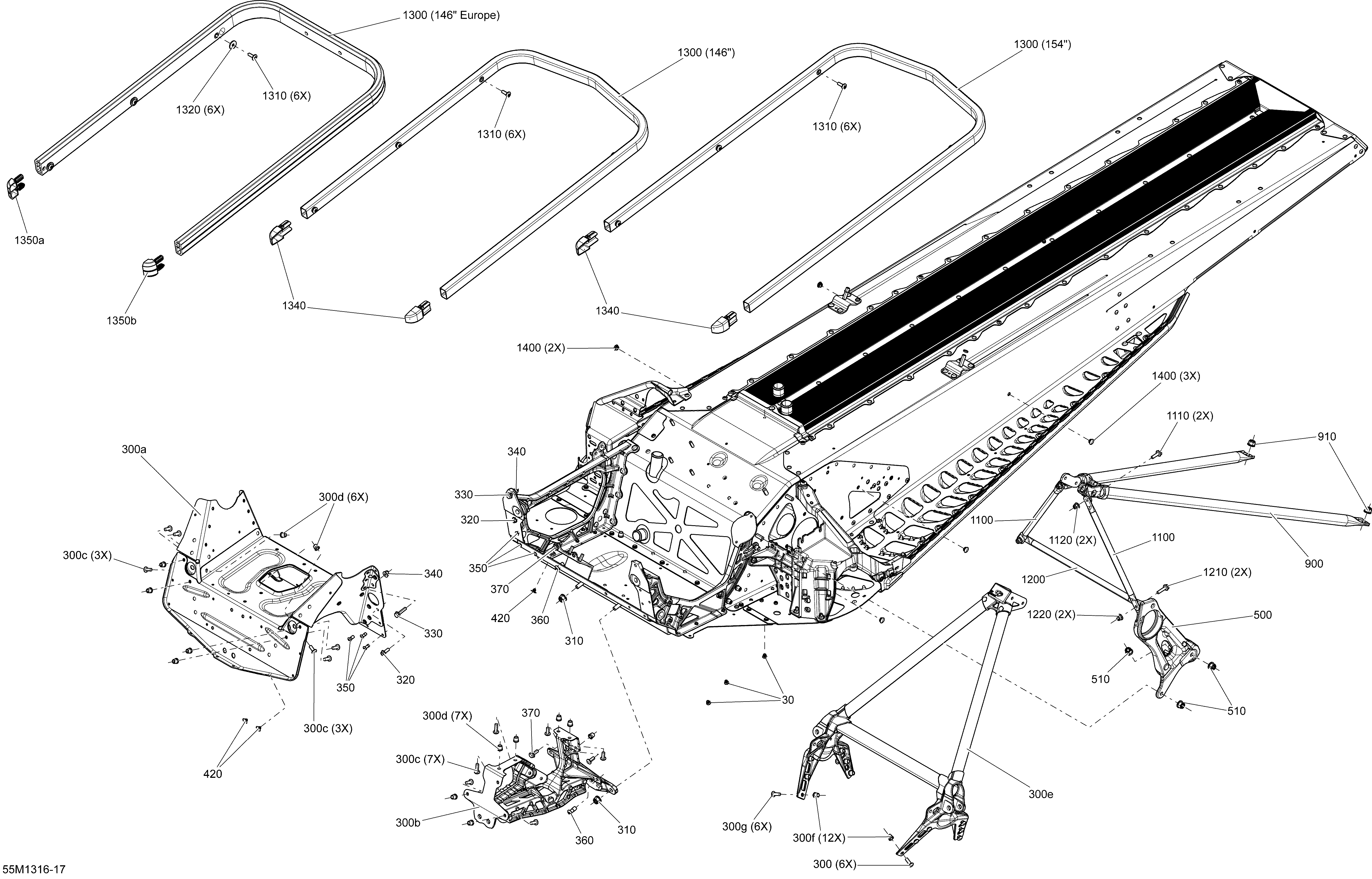

09- Frame And Components 154 для BRP Ski-Doo SUMMIT SP 600HOE XP - 2013
-
№АртикулНазвание
-
30390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
300a518327495 Cross Member S Module. Includes 300a to 300dCross Member S Module. Includes 300a to 300d
-
300b518327475 Front Suspension SupportFront Suspension Support
-
300c207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
300d233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300e518326970 Front MemberFront Member
-
300f233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300g207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420293730053 DartDart
-
500518327133 Driven Pulley SupportDriven Pulley Support
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518325114 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1200518325115 Center Column SupportCenter Column Support
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1300518326049 Rear Bumper, 154''Rear Bumper, 154''
-
1310250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
1340520000840 CapCap
-
1400293730047 Dart 8 mm, BlackDart 8 mm, Black
