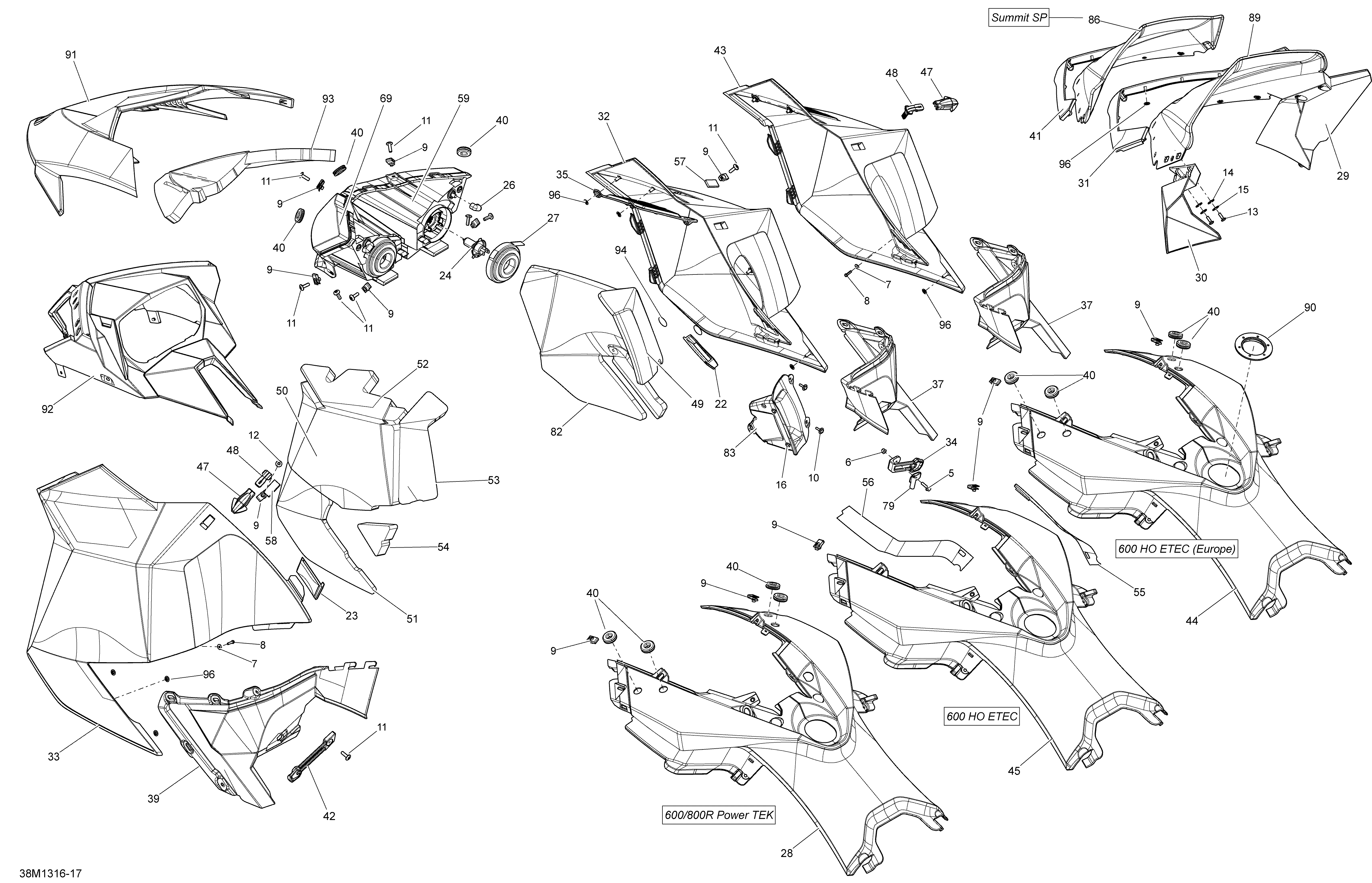

09- Hood, Windshield And Console для BRP Ski-Doo SUMMIT SP 600HOE XP - 2013
-
№АртикулНазвание
-
5250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
6233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
7234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
8241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
14250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
15250200025 Washer M5Washer M5
-
16275500241 Black CapBlack Cap
-
22513033472 LH Panel ClipLH Panel Clip
-
23513033471 RH Panel ClipRH Panel Clip
-
24515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
26515176498 CapCap
-
27515176499 CoverCover
-
28517303923 Deep Black Console. 600/800R Power TEKDeep Black Console. 600/800R Power TEK
-
29517303604 RH Air DeflectorRH Air Deflector
-
30517303605 LH Air DeflectorLH Air Deflector
-
31517303607 Windshield SupportWindshield Support
-
32517304029 Deep Black RH Panel. With Manual StarterDeep Black RH Panel. With Manual Starter
-
33517304030 Deep Black LH PanelDeep Black LH Panel
-
34517303612 RH Panel LatchRH Panel Latch
-
35517303622 GrillGrill
-
37517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
39517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
40517303756 GrommetGrommet
-
41517303757 Windshield SupportWindshield Support
-
42517303808 LH Panel LatchLH Panel Latch
-
43517304210 Deep Black RH Panel. With Electric StarterDeep Black RH Panel. With Electric Starter
-
44517303924 Deep Black Console. 600 HO ETEC, EuropeDeep Black Console. 600 HO ETEC, Europe
-
45517303922 Deep Black ConsoleDeep Black Console
-
47860200239 Black Latch KitBlack Latch Kit
-
48517303981 Panel LatchPanel Latch
-
49517304884 RH Panel Rear FoamRH Panel Rear Foam
-
50517304887 LH Panel Center FoamLH Panel Center Foam
-
51517304888 LH Panel Lower FoamLH Panel Lower Foam
-
52517304889 LH Panel Upper FoamLH Panel Upper Foam
-
53517304890 LH Panel Rear FoamLH Panel Rear Foam
-
54517304891 FoamFoam
-
59517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
69517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
79517304221 Latch SupportLatch Support
-
82517304883 RH Center FoamRH Center Foam
-
83517304322 Black RH ConsoleBlack RH Console
-
86517304390 Windshield 285 Ass'y. Summit SP ModelWindshield 285 Ass'y. Summit SP Model
-
89860200478 Windsheld Kit 375Windsheld Kit 375
-
89517304395 Windsheld 375mmWindsheld 375mm
-
90517304518 Console NutConsole Nut
-
91517304530 Deep Black HoodDeep Black Hood
-
92517305213 Indicator SupportIndicator Support
-
93517304913 Hood FoamHood Foam
-
94518325560 Adhesive PatchAdhesive Patch
-
96732610072 Push NutPush Nut
