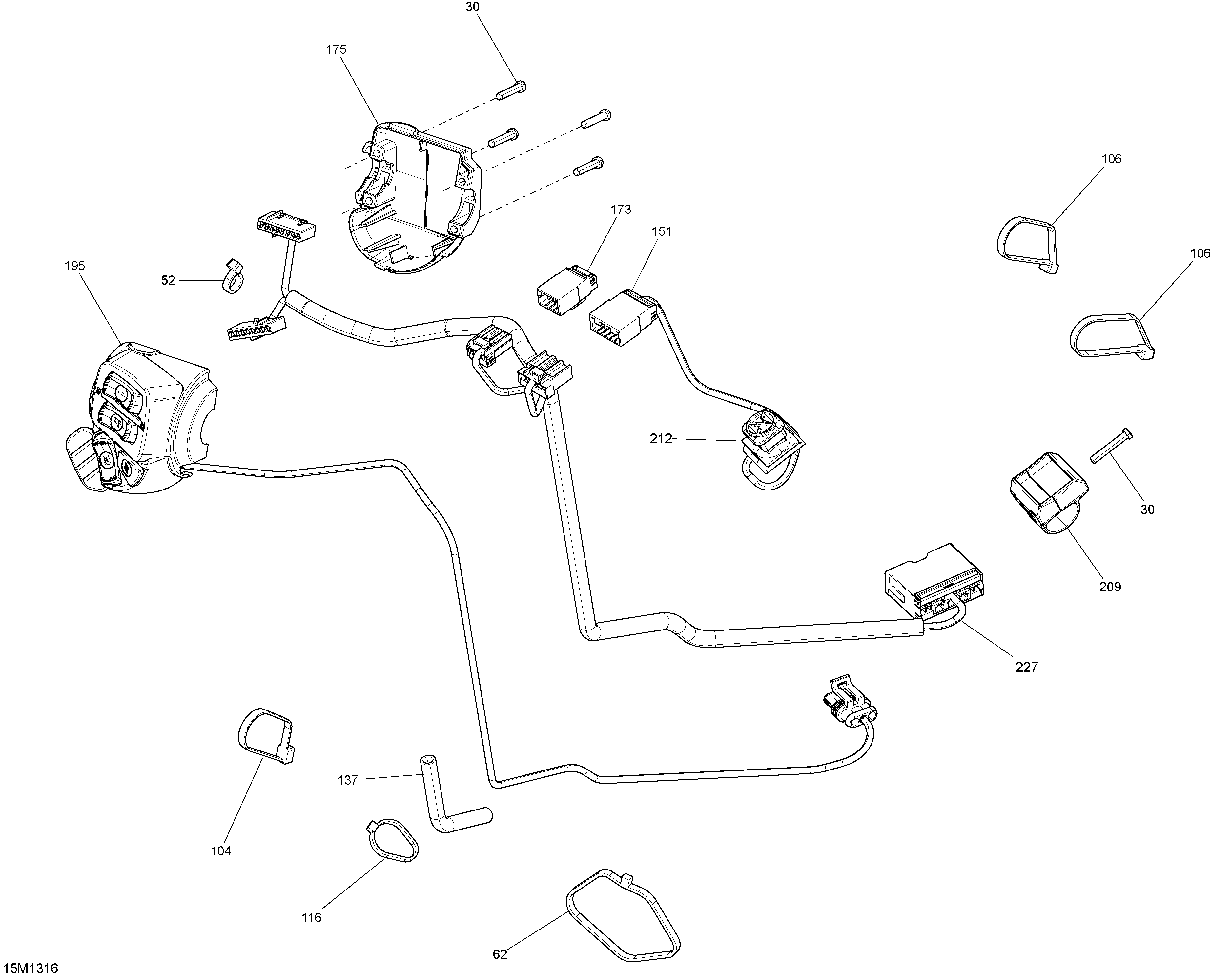

10- Steering Wiring Harness для BRP Ski-Doo SUMMIT SP 600HOE XP - 2013
-
№АртикулНазвание
-
30250000263 Torx Screw #8-18. SUMMITTorx Screw #8-18. SUMMIT
-
52293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
62293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
104414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
106414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
116414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
137515175442 Tubing 6 mmTubing 6 mm
-
151515175662 Male Terminal Housing, 6 Circuits. SUMMITMale Terminal Housing, 6 Circuits. SUMMIT
-
173515175846 Male Terminal Housing, 4 Circuits. SUMMITMale Terminal Housing, 4 Circuits. SUMMIT
-
175515175926 Housing Switch Plate. SUMMITHousing Switch Plate. SUMMIT
-
195515177509 LH Housing Switch. SUMMITLH Housing Switch. SUMMIT
-
209515176825 Kill Switch SupportKill Switch Support
-
212515177362 Kill SwitchKill Switch
-
227515176868 Steering Wiring Harness Ass'y. SUMMITSteering Wiring Harness Ass'y. SUMMIT
