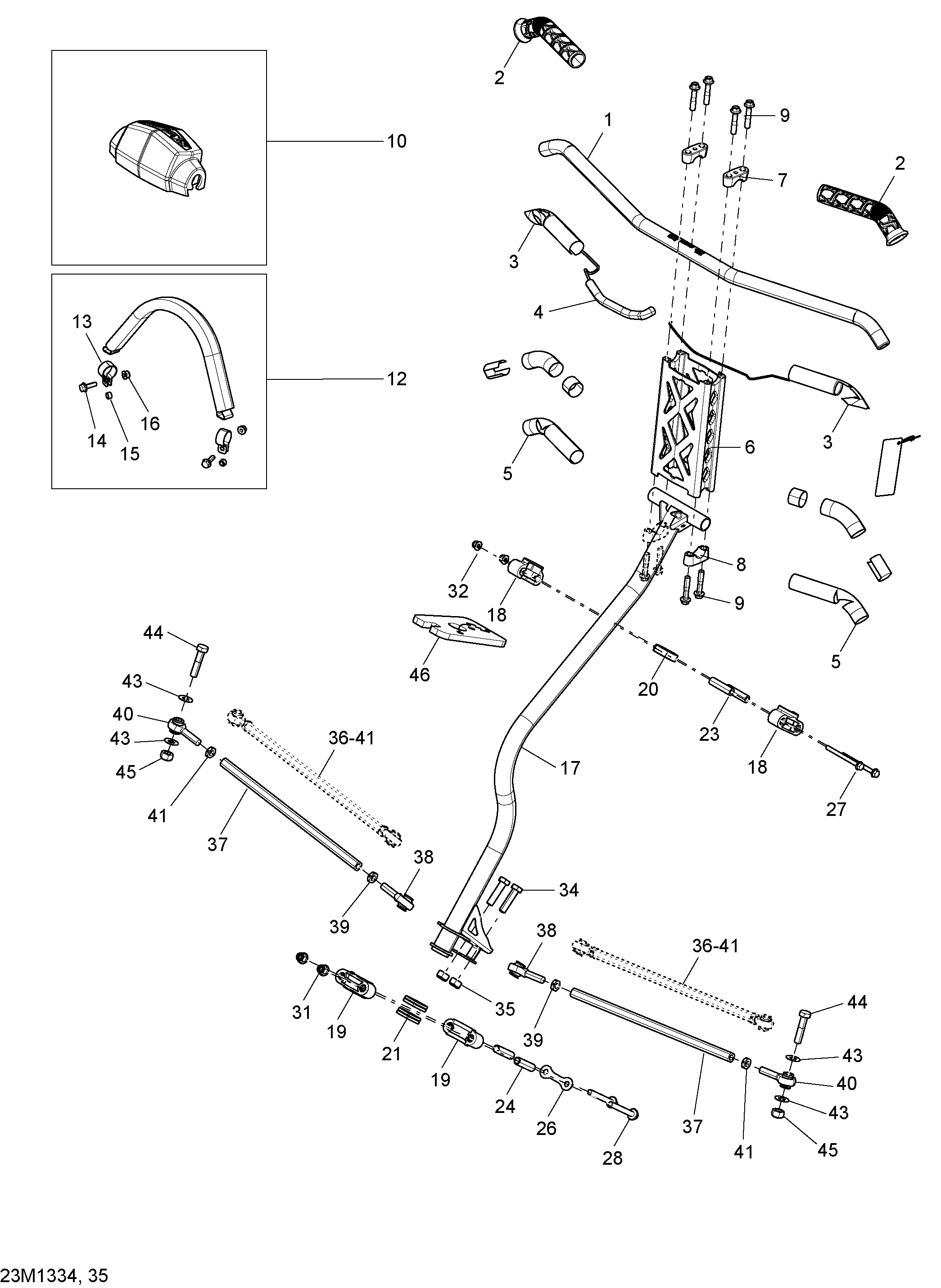

07- Steering для BRP Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
1506152613 Handle Bar (Painted)Handle Bar (Painted)
-
2506152486 GripGrip
-
3506152578 Heating Element 20 WATTHeating Element 20 WATT
-
4515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
5506152611 InsulantInsulant
-
6860200269 Handlebar ExtensionHandlebar Extension
-
7506152395 Steering SupportSteering Support
-
8506152395 Steering SupportSteering Support
-
9250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
10506152192 Steering PadSteering Pad
-
12506152115 Strap Ass'yStrap Ass'y
-
13506152536 Painted Support PlatePainted Support Plate
-
14207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15506152156 BushingBushing
-
16233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
17506152585 Main Tube (Painted)Main Tube (Painted)
-
18506152508 Upper Half-HousingUpper Half-Housing
-
19506152217 Lower Half-HousingLower Half-Housing
-
20506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
21506152518 Lower Vibration RingLower Vibration Ring
-
23506152297 Housing BushingHousing Bushing
-
24506152388 Lower Housing BushingLower Housing Bushing
-
26506152389 Stopper PlateStopper Plate
-
27207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
28207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
37506152377 Tie RodTie Rod
-
38506152081 LH Ball JointLH Ball Joint
-
39250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
40506152019 RH Ball JointRH Ball Joint
-
41732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
43506152582 WasherWasher
-
44207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
45250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
46506152521 CushionCushion
