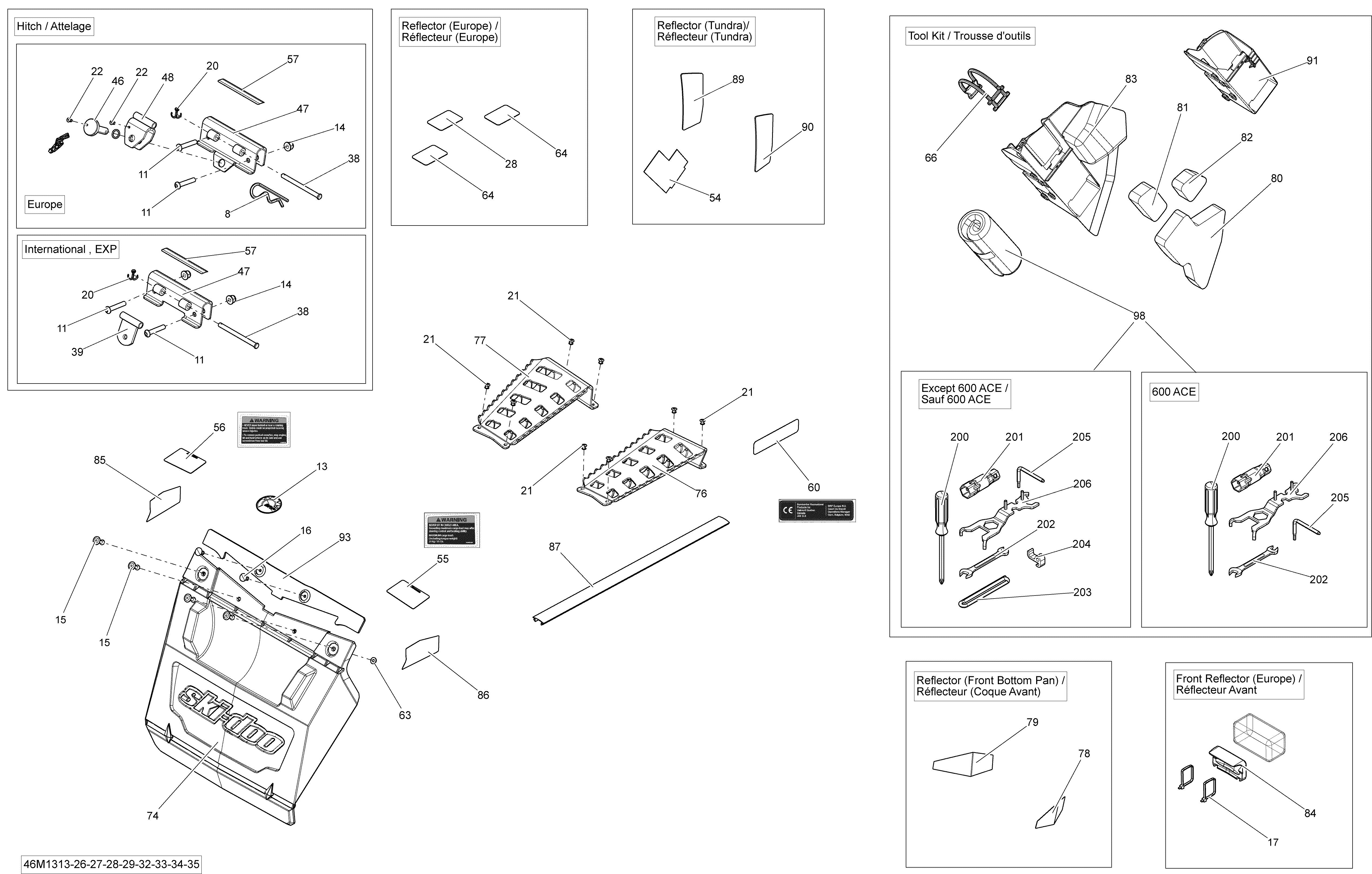

09- Utilities для BRP Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
8114045200 Hair PinHair Pin
-
11205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
13219903947 BRP Logo 48MMBRP Logo 48MM
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293750018 Tie Rap 371 mmTie Rap 371 mm
-
20371800200 Cotter PinCotter Pin
-
22390404300 Pop Rivet 5/32''Pop Rivet 5/32''
-
28415037900 Reflector, WhiteReflector, White
-
38511000520 Clevis PinClevis Pin
-
39511000521 Hitch Plate WeldedHitch Plate Welded
-
46511000555 PinPin
-
47511000768 Support. InternationalSupport. International
-
47511000554 Support. EuropeSupport. Europe
-
48511000588 Hitch PlateHitch Plate
-
55516005587 Warning Decal RHWarning Decal RH
-
56516005586 Warning Decal LHWarning Decal LH
-
57516004568 Warning Decal, SecurityWarning Decal, Security
-
60516005873 ''CE'' Decal''CE'' Decal
-
63517124300 WasherWasher
-
64520000271 Reflector, AmberReflector, Amber
-
66520000528 LatchLatch
-
74520000949 Snow GuardSnow Guard
-
84520000871 Reflector SupportReflector Support
-
85520000880 LH Reflector. InternationalLH Reflector. International
-
85520000882 LH Reflector. EuropeLH Reflector. Europe
-
86520000881 RH Reflector. InternationalRH Reflector. International
-
86520000883 RH Reflector. EuropeRH Reflector. Europe
-
87520000829 Radiator TrimRadiator Trim
-
89520000891 RH ReflectorRH Reflector
-
90520000892 LH ReflectorLH Reflector
-
91520000894 Tool Kit RackTool Kit Rack
-
98529000066 Tool KitTool Kit
-
200529000004 Screw DriverScrew Driver
-
201529000046 Set Key 16 / 21 MMSet Key 16 / 21 MM
-
202529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
205520001142 Spacing ToolSpacing Tool
-
206520000988 Wrench SuspensionWrench Suspension
