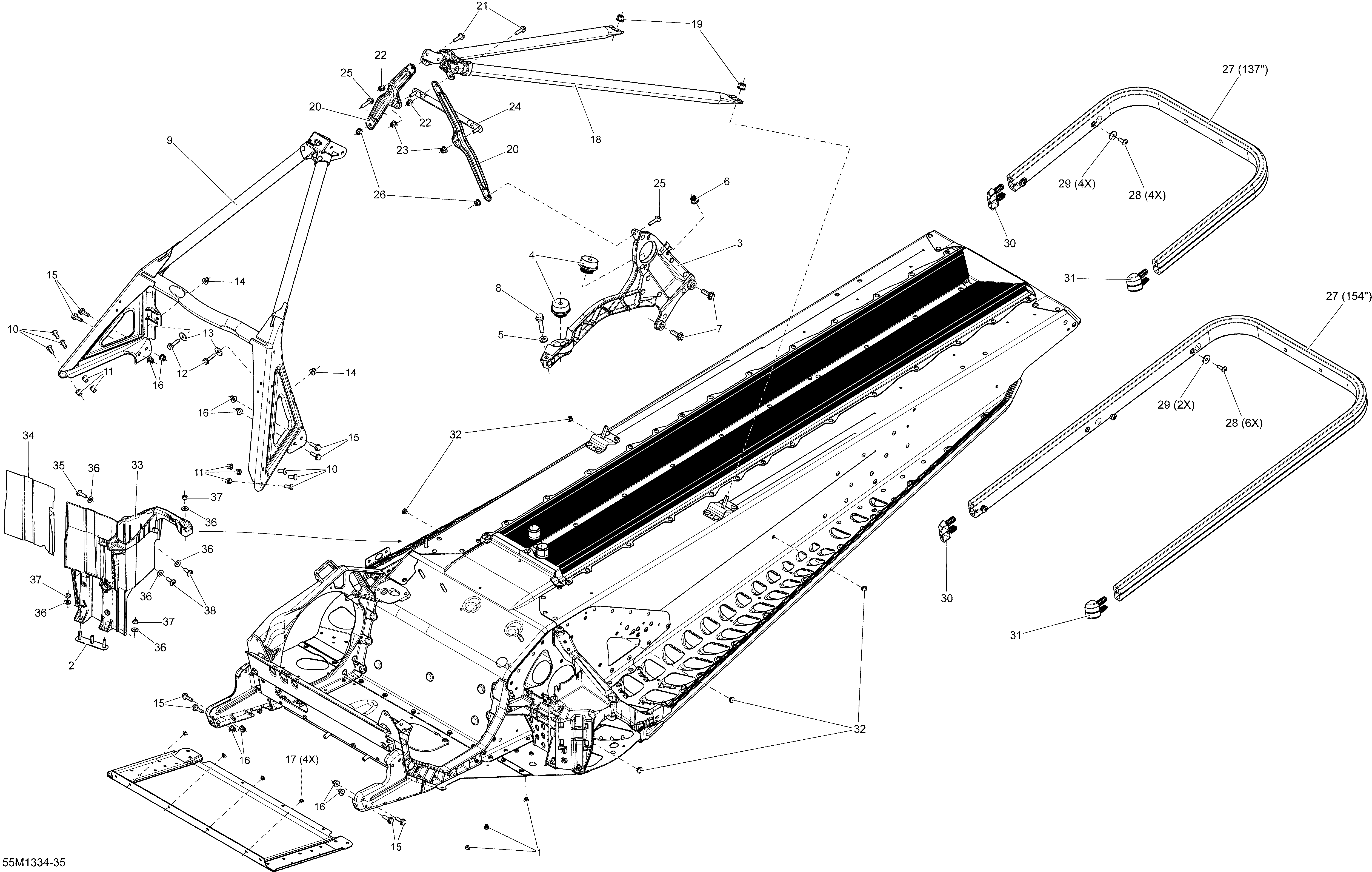

09- Frame And Components для BRP Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
1390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
2518326550 Retaining PlateRetaining Plate
-
3518327535 Brace Ass'y. Includes 3 to 4Brace Ass'y. Includes 3 to 4
-
4512060295 Rubber MountRubber Mount
-
5234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
8207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
9518326557 Front MemberFront Member
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13224061201 Flat WasherFlat Washer
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518326559 Rear MemberRear Member
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20518326848 Upper Column SupportUpper Column Support
-
21207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24518326355 Center Column SupportCenter Column Support
-
25207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27518325579 Rear BumperRear Bumper
-
28250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
29224061201 Flat WasherFlat Washer
-
30520000711 RH CapRH Cap
-
31520000712 LH CapLH Cap
-
32293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
33518326472 Battery SupportBattery Support
-
34514054755 Heat ShieldHeat Shield
-
35210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
36250200039 Flat WasherFlat Washer
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
