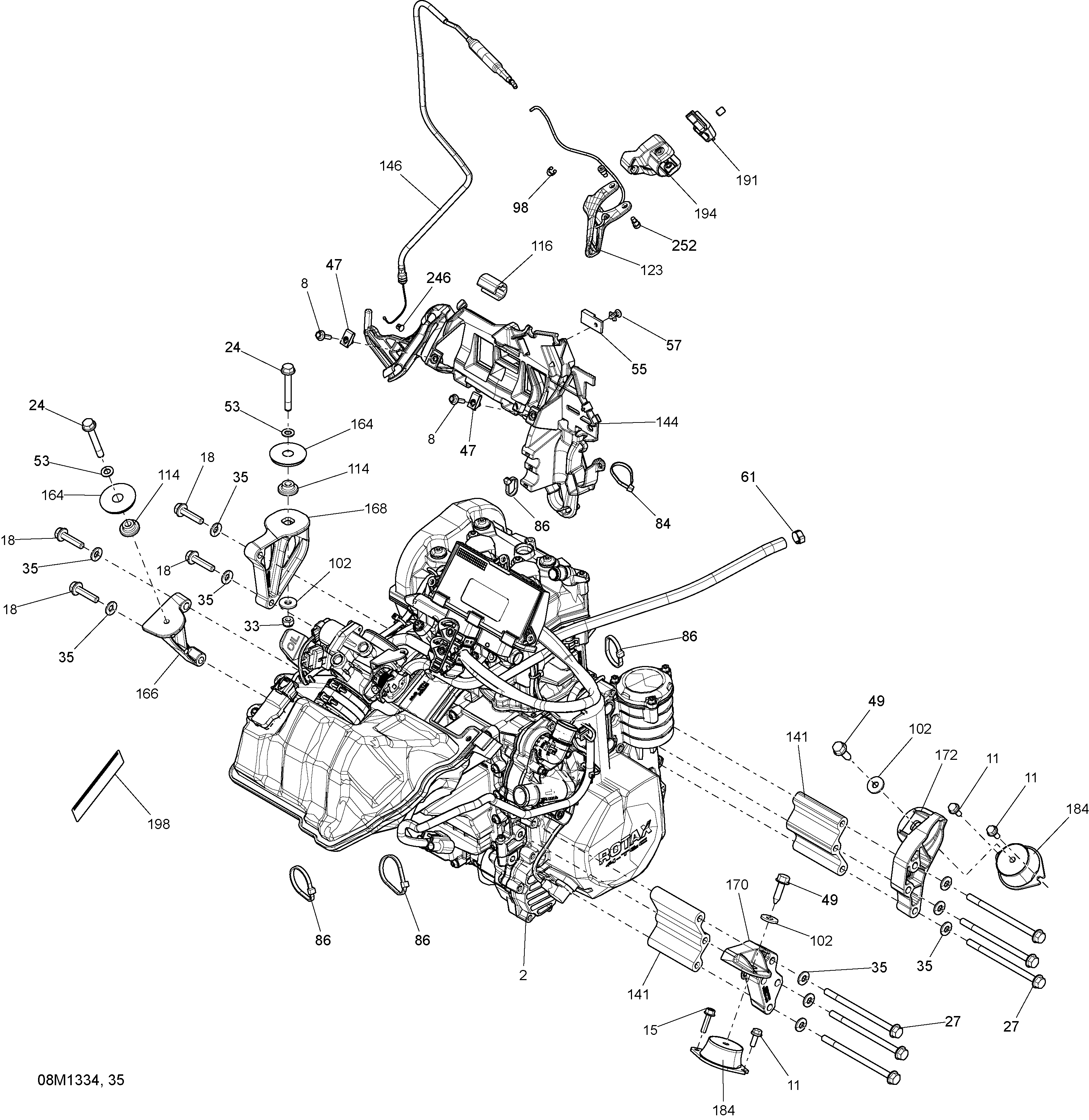

01- Engine And Engine Support для BRP Ski-Doo TUNDRA SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
8207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
15207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
18207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
24207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
27230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
33232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
35234281474 Conical Spring Washer M8Conical Spring Washer M8
-
47250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
49250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
53250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
55270000141 ClipClip
-
57293150027 Avdel RivetAvdel Rivet
-
61293650046 Oetiker ClampOetiker Clamp
-
84293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
86414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
98414274500 CirclipCirclip
-
102503183200 Washer, YellowWasher, Yellow
-
114512060285 SpacerSpacer
-
116512060313 ProtectorProtector
-
123512060616 Throttle HandleThrottle Handle
-
141512060505 ShimShim
-
144512060509 Module SupportModule Support
-
146512060607 Throttle Cable. TUNDRAThrottle Cable. TUNDRA
-
164512060647 StopperStopper
-
166512060660 Rear Support, PTORear Support, PTO
-
168512060661 Front Support, PTOFront Support, PTO
-
170512060662 Rear Support, MAGRear Support, MAG
-
172512060663 Front Support, MAGFront Support, MAG
-
184512060729 Rubber MountRubber Mount
-
191512060859 Upper HousingUpper Housing
-
194512060860 Lower HousingLower Housing
-
198516005521 Check Oil DecalCheck Oil Decal
-
246707000434 Cable GuideCable Guide
-
252732601143 Flanged ScrewFlanged Screw
