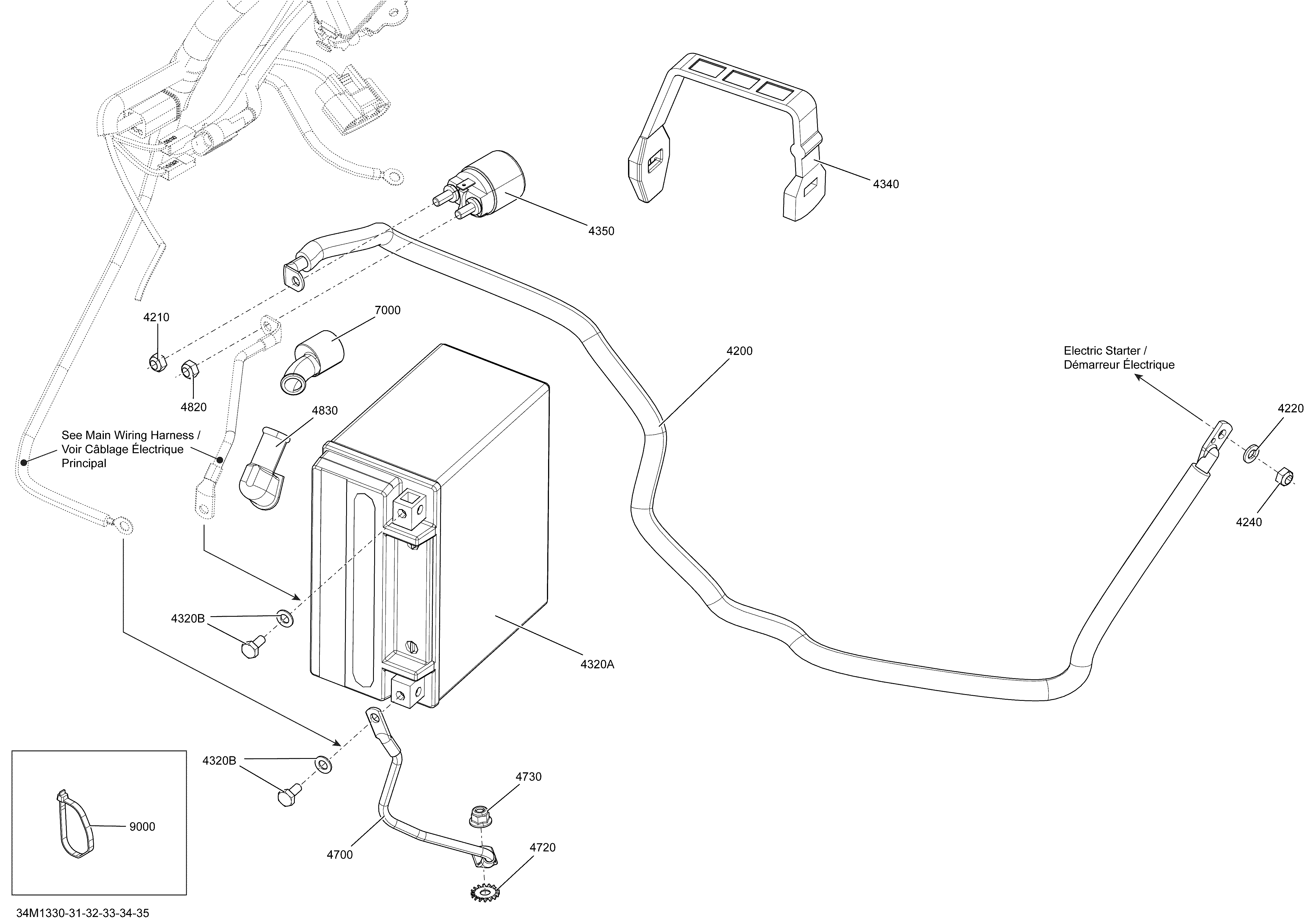

10- Battery And Starter для BRP Ski-Doo TUNDRA SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
4200515176966 Battery WireBattery Wire
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4320a296000295 Battery 18 Amp. Includes 4320A to 4320BBattery 18 Amp. Includes 4320A to 4320B
-
4320B295500849 Battery Fastener KitBattery Fastener Kit
-
4340515176944 StrapStrap
-
4350515176942 Starter RelayStarter Relay
-
4700515176943 Ground WireGround Wire
-
4720250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4730233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
7000515175919 Protector CapProtector Cap
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
