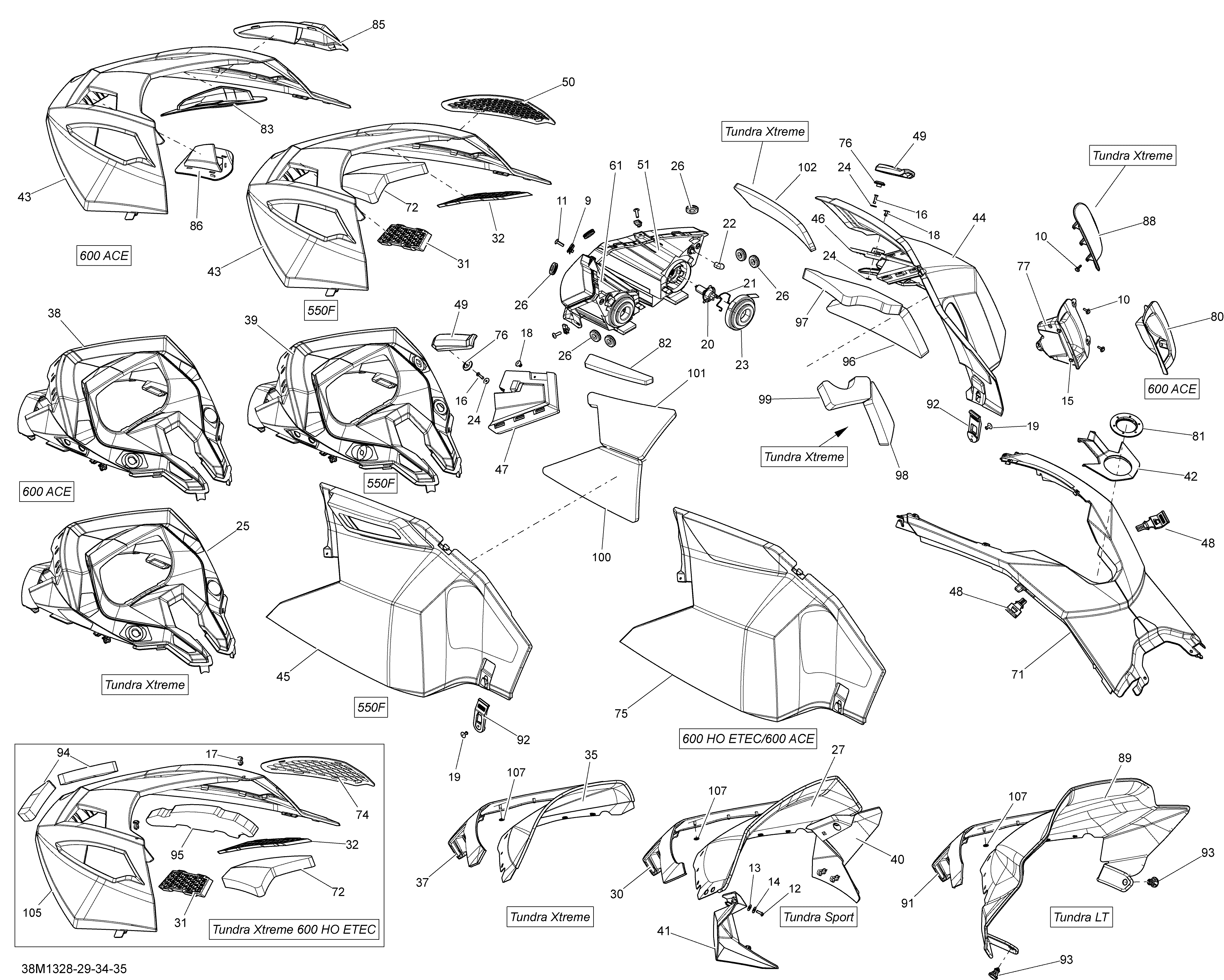

09- Hood, Windshield And Console для BRP Ski-Doo TUNDRA SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
13250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
14250200025 Washer M5Washer M5
-
16293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
20515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
21515176493 Bulb HolderBulb Holder
-
22515176498 CapCap
-
23515176499 CoverCover
-
24517124300 WasherWasher
-
26517303756 GrommetGrommet
-
27517303797 Hight Windshield (430)Hight Windshield (430)
-
30517303798 Medium Windshield SupportMedium Windshield Support
-
38517303972 Indicator SupportIndicator Support
-
40517304024 RH Console Air DeflectorRH Console Air Deflector
-
41517304025 LH Console Air DeflectorLH Console Air Deflector
-
42517304027 Cap ConsoleCap Console
-
43517304070 Hood, YellowHood, Yellow
-
44517304071 RH Panel, YellowRH Panel, Yellow
-
44517304617 RH Panel, BlackRH Panel, Black
-
46517304090 RH InsertRH Insert
-
47517304092 LH Panel InsertLH Panel Insert
-
48517304093 Center Panel LatchCenter Panel Latch
-
49517305186 Front Latch PanelFront Latch Panel
-
51517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
61517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
71517303741 Console, BlackConsole, Black
-
71517304206 Console, YellowConsole, Yellow
-
72517304877 Foam HoodFoam Hood
-
75517304307 LH PanelLH Panel
-
76517304320 Anchor LinkAnchor Link
-
80517304500 RH ConsoleRH Console
-
81517304518 Console NutConsole Nut
-
83517304567 RH Hood GrillRH Hood Grill
-
85517304569 Air InletAir Inlet
-
86517304694 LH Hood GrillLH Hood Grill
-
92517304999 Rear Panel LatchRear Panel Latch
-
93517304744 ButtonButton
-
96517304870 FoamFoam
-
97517304871 FoamFoam
-
100517304874 FoamFoam
-
101517304875 FoamFoam
-
105517305273 Hood, BlackHood, Black
-
107732610072 Push NutPush Nut
